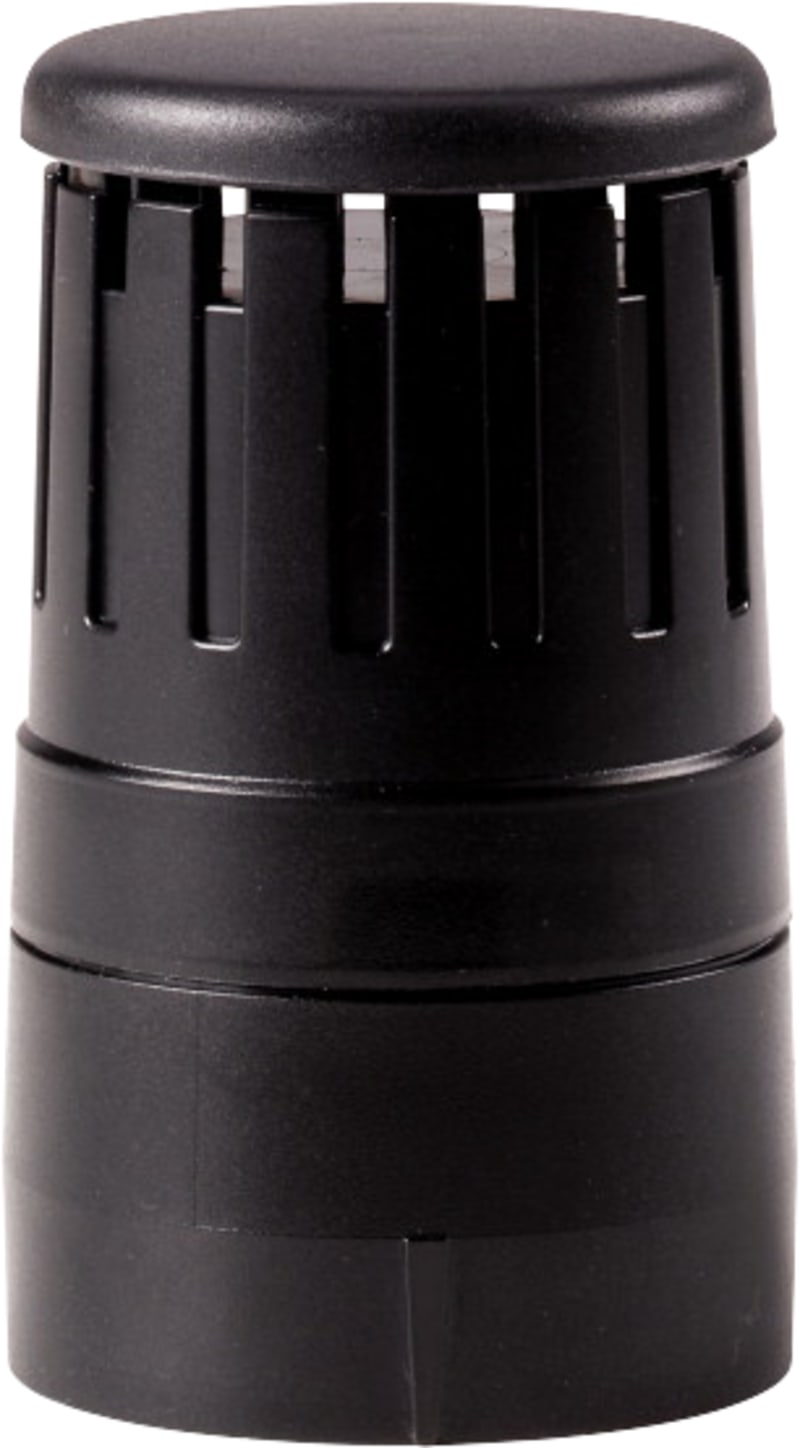

Akuplug, 120V, Constant/Pulse (SL4-AP120)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Akuplug, 120V, Constant/Pulse (SL4-AP120) is listed in the cBallast industrial catalogue. Sales unit: pcs; Eaton catalogue number: 171380; Depth: 43 mm; Height: 72 mm; Width: 43 mm; Weight: 0.046 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL4-AP120
- EAN / GTIN
- 4015081679096
- Sales unit
- pcs
- Eaton catalogue number
- 171380
- Depth
- 43 mm
- Height
- 72 mm
- Width
- 43 mm
- Weight
- 0.046 kg
- Certifications
- UL File No.: E29184; Certified by UL for use in Canada; CE; UL 508; IEC/EN 60947-5-1; IEC/EN 60529; UL Category Control No.: NKCR; CSA-C22.2 No. 14-10; UL report applies to both US and Canada; CSA Class No.: NKCR7; UL; CSA-C22.2 No. 94-91
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Leakage current
- 0.003 A
- Rated insulation voltage (Ui)
- 250 V
- Rated operational current (Ie) - max
- 21 mA
- Rated operational voltage (Ue) at AC - max
- 120 V
- Rated operational voltage (Ue) at AC - min
- 110 V
- Color
- Black
- Functions
- Continuous tone/pulse tone
- Alarm type
- 2 types of sound; Continuous tone; Tone adjustable; Pulsed tone; Internal sound setting, 1 pole DIP
- Connection to SmartWire-DT
- No
- Current consumption
- 0.021 A, at 110/120 V AC
- Degree of protection
- NEMA 13; IP66
- Frequency rating
- 4000 Hz
- Loudness
- 80 dB
- Material
- Enclosure: Polycarbonate (PC); Cap: Polycarbonate (PC)
- Mounting position
- As required; Place only at the highest position on a pole
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Radiation angle
- 360 °
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27
- Type
- Acoustic module
- Voltage type
- AC
- Colour
- Black
- Outer diameter
- 43 mm
- Tone adjustable
- Yes
- Operating voltage AC 50 Hz
- 110–120 V
- Operating voltage AC 60 Hz
- 110–120 V
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015081679096
- SAP 1000489729
- Code 8807233
Product Documentation
More from Eaton
Eaton
Eaton FAZ-B15/3 Miniature Circuit Breaker — 3P, Type B, 15 A, 15 kA
Eaton
Eaton NZMH3-4-A400-SVE Molded-Case Circuit Breaker 4-Pole 400A 150KA
Eaton
Separasjonsprofil xE xVTL H2000
XVTL-SF-20-200
Eaton
Eaton IZMX40B4-P25W-1
Eaton

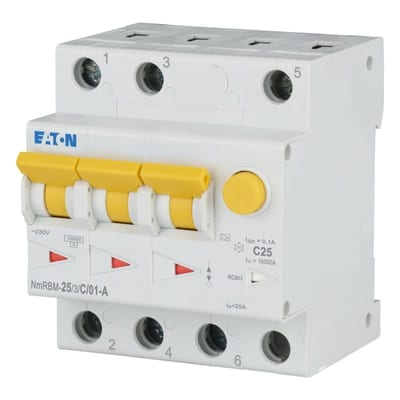

Residual current circuit breaker with overcurrent 25A 3P C 100MA A
193832
Eaton

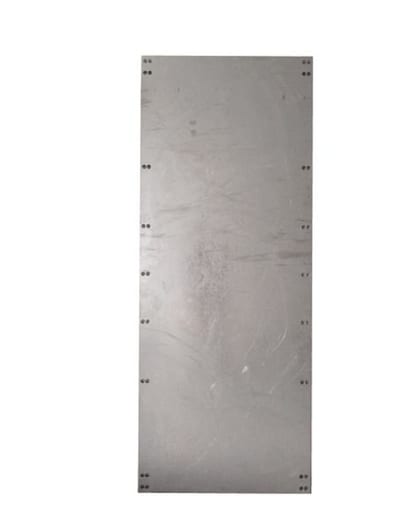

Mounting plate xE xVTL
XVTL-IC/S-8/20
Eaton

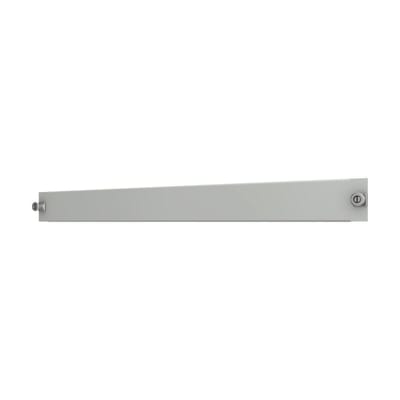

Front plate sealed H50 B600 xE Basic (EP-502168)
Eaton

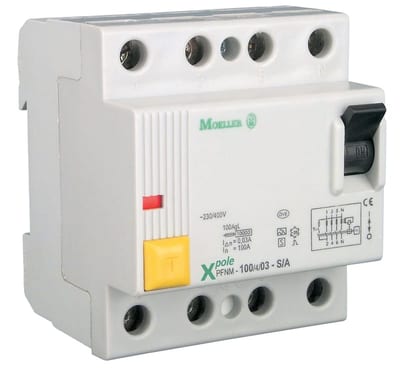

Residual current circuit breaker 100A 4P 300MA S/A
