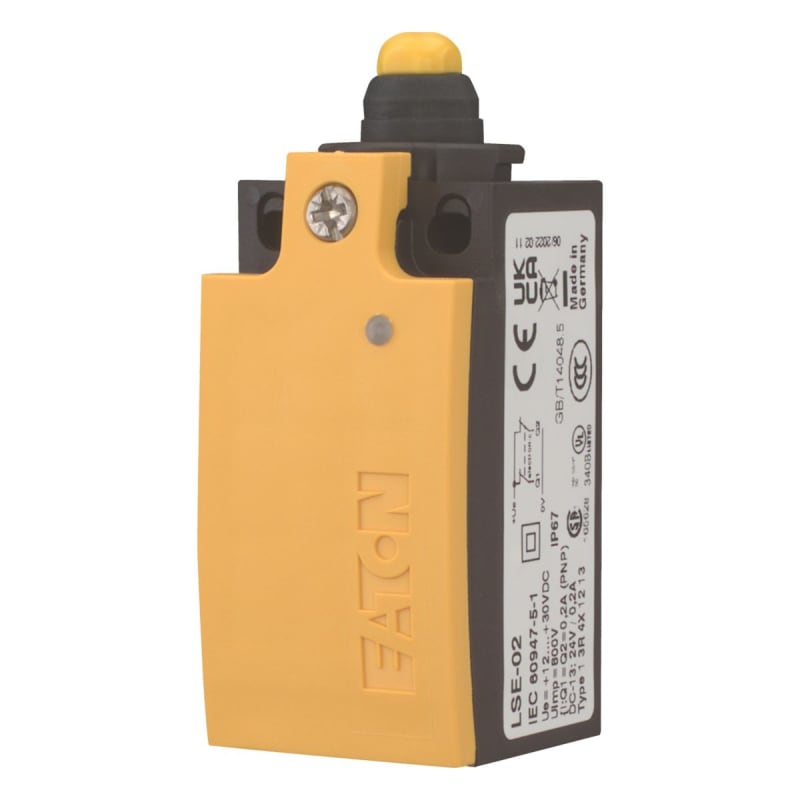

Eaton LSE-02 LS-Titan limit switch, basis with plunger. IP66.

Manufacturer part number (MPN)

LSE-02

EAN / GTIN

4015082661229

HS code

8536.90

Sales unit

pcs

Package quantity

2 pcs

Eaton catalogue number

266122

Depth

33.5 mm

Height

76.5 mm

Width

31 mm

Weight

0.048 kg

Compliances

CE Marked

Certifications

CSA Std. C22.2 No. 14; EN 60947-5; IEC 60947-5; UL 508; CE; CSA; UL; CSA Class No.: 3211-03; IEC/EN 61000-4; UL Category Control No.: NKCR; CSA-C22.2 No. 14; IEC/EN 60947; IEC/EN 60947-5; CSA File No.: 012528; UL File No.: E29184

Actuating force at beginning/end of stroke

3.5 N/8.0 N

Actuating torque of rotary drives

0.2 Nm

Actuator type

Plunger

Operating speed

For angle of actuation α = 0°/30°; Max. 1/0.5 m/s (with DIN cam, mechanical actuation)

Mounting position

As required

Shock resistance

30 g, Basic unit, Mechanical, Half-Sinusoidal shock 20 ms

Temperature resistance

100 °C, Contact temperature of roller head

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

2

Number of contacts (normally open contacts)

0

Equipment heat dissipation, current-dependent Pvid

0 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

0.15 W

Rated operational current for specified heat dissipation (In)

0.2 A

Static heat dissipation, non-current-dependent Pvs

0.4 W

Rated breaking capacity

0.019 A (30 V DC)

Rated operational current (Ie) at DC-1, 12 V

0.015 A

Rated operational current (Ie) at DC-1, 24 V

18 A

Rated operational current (Ie) at DC-13, 24 V

0.2 A

Rated operational voltage

12 - 30 V DC

Air discharge

8 kV, according to IEC/EN 61000-4-2, Level 3, ESD

Burst impulse

2 kV, Signal cable, according to IEC/EN 61000-4-4, Level 3; 2 kV, Supply cable, according to IEC/EN 61000-4-4, Level 3

Contact discharge

4 kV, according to IEC/EN 61000-4-2, Level 3, ESD

Electromagnetic fields

10 V/m (according to IEC EN 61000-4-3)

Immunity to line-conducted interference

10 V (according to IEC/EN 61000-4-6)

Surge rating

0.5 kV, Power pulses (Surge), according to IEC/EN 61000-4-5, EMC

Electric connection type

Cable entry metrical

Enclosure color

Yellow Cover

Enclosure material

Plastic; Insulated material

Features

Expandable

Fitted with

Status indication

Functions

Output electronic

Indication

Visual status indication

Material

Plastic housing

Switch function type

Slow-action switch

Connection type

Cage Clamp

Degree of protection

IP66/IP67; NEMA Other

Lifespan

3,000,000 electrical Operations; 3,000,000 mechanical Operations

Operating frequency

3000 Operations/h

Overvoltage category

III

Pollution degree

3

Product category

Position switch

Rated switching distance (Sn) - max

5.5 mm

Rated switching distance (Sn) - min

0.5 mm

Repetition accuracy

0.02 mm (Contacts/switching capacity)

Suitable for

Safety functions

Switching hysteresis of Sn

0.4 %

Type

Safety position switch

Explosion safety category for dust

None

Explosion safety category for gas

None

Terminal capacity (flexible with ferrule)

1 x (0.5 - 1.5) mm²

Terminal capacity (solid)

1 x (0.5 - 2.5) mm²

HS Code

8536.90
