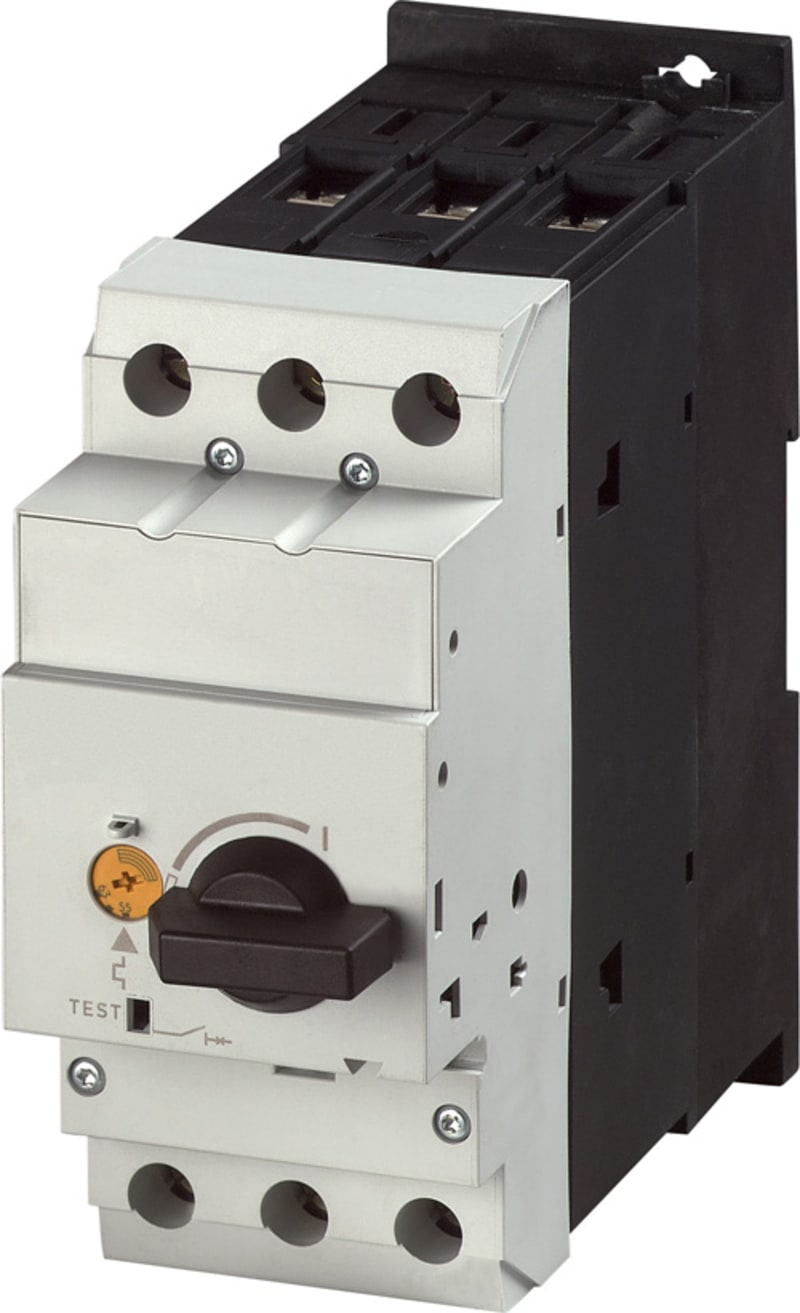

Motor Protection Circuit Breaker 32-40A

Eaton PKZM4-40 MOTOR PROTECTION CIRCUIT BREAKER 32-40A.

Manufacturer part number (MPN)

PKZM4-40

EAN / GTIN

4015082223540

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

222354

Depth

160 mm

Height

140 mm

Width

55 mm

Weight

1.136 kg

Certifications

CSA File No.: 165628; CSA-C22.2 No. 60947-4-1-14; IEC/EN 60947-4-1; UL 60947-4-1; CE; CSA; CSA Class No.: 3211-05; UL Category Control No.: NLRV; UL File No.: E36332; VDE 0660; IEC/EN 60947; UL

Altitude

Max. 2000 m

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Rated operational current for specified heat dissipation (In)

40 A

Static heat dissipation, non-current-dependent Pvs

0 W

Equipment heat dissipation, current-dependent Pvid

20.7 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

6.9 W

Rated frequency - max

60 Hz

Rated frequency - min

50 Hz

Rated operational current (Ie)

40 A

Rated operational power at AC-3e, 220/230 V, 50 Hz

11 kW

Rated operational power at AC-3e, 380/400 V, 50 Hz

20 kW

Rated operational power at AC-3e, 440 V, 50 Hz

22 kW

Rated operational power at AC-3e, 500 V, 50 Hz

24 kW

Rated operational power at AC-3e, 690 V, 50 Hz

30 kW

Rated operational voltage (Ue) - max

690 V

Rated operational voltage (Ue) - min

690 V

Rated uninterrupted current (Iu)

40 A

Actuator type

Turn button

Features

Phase-failure sensitivity (according to IEC/EN 60947-4-1, VDE 0660 Part 102)

Functions

Motor protection; Phase failure sensitive

Number of poles

Three-pole

Connection

Screw terminals

Degree of protection

IP20; Terminals: IP00

Explosion safety category for dust

ATEX dust-ex-protection, PTB 10, ATEX 3012, Ex II(2) G

Lifespan, electrical

30,000 operations (at 400V, AC-3)

Lifespan, mechanical

30,000 Operations (Main conducting paths)

Mounting position

Can be snapped on to IEC/EN 60715 top-hat rail with 7.5 or 15 mm height.

Operating frequency

40 Operations/h

Overvoltage category

III

Pollution degree

3

Product category

Motor protective circuit breaker

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

6000 V AC

Shock resistance

15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Suitable for

Branch circuit: Manual type E if used with terminal, or suitable for group installations, (UL/CSA); Also motors with efficiency class IE3

Temperature compensation

-5 - 40 °C to IEC/EN 60947, VDE 0660; -25 - 55 °C, Operating range; ≤ 0.25 %/K, residual error for T > 40°

Assigned motor power at 115/120 V, 60 Hz, 1-phase

3 HP

Assigned motor power at 200/208 V, 60 Hz, 3-phase

10 HP

Assigned motor power at 230/240 V, 60 Hz, 1-phase

7.5 HP

Assigned motor power at 460/480 V, 60 Hz, 3-phase

30 HP

Assigned motor power at 575/600 V, 60 Hz, 3-phase

30 HP

Rated short-circuit breaking capacity Icu at 400 V AC

50 kA

Short-circuit current

60 kA DC, up to 250 V DC, Main conducting paths

Short-circuit current rating (group protection)

600 A, 600 V High Fault, max. CB, SCCR (UL/CSA); 600 A, 600 V High Fault, max. Fuse, SCCR (UL/CSA); 42 kA, 600 V High Fault, CB, SCCR (UL/CSA); 42 kA, 600 V High Fault, Fuse, SCCR (UL/CSA)

Short-circuit current rating (type E)

Accessories required BK50/3-PKZ4-E; 65 kA, 480 Y/277 V, SCCR (UL/CSA); 25 kA, 600 Y/347 V, SCCR (UL/CSA); 65 kA, 240 V, SCCR (UL/CSA)

Short-circuit release

Basic device fixed 15.5 x Iu; ± 20% tolerance; 620 A, Irm

Switching capacity

40 A (3 contacts in series), DC-5 up to 250V; 40 A, AC-3 up to 690 V

Stripping length (main cable)

14 mm

Terminal capacity (flexible with ferrule)

1 x (0.75 - 35) mm², Main cables; 2 x (0.75 - 25) mm², Main cables

Terminal capacity (solid)

1 x (0.75 - 16) mm², Main cables; 2 x (0.75 - 16) mm²

Terminal capacity (solid/stranded AWG)

14 - 2

Tightening torque

3.3 Nm, Screw terminals, Main cable

Overload release current setting - max

40 A

Overload release current setting - min

32 A

Tripping characteristic

Overload trigger: tripping class 10 A

HS Code

8536.90
