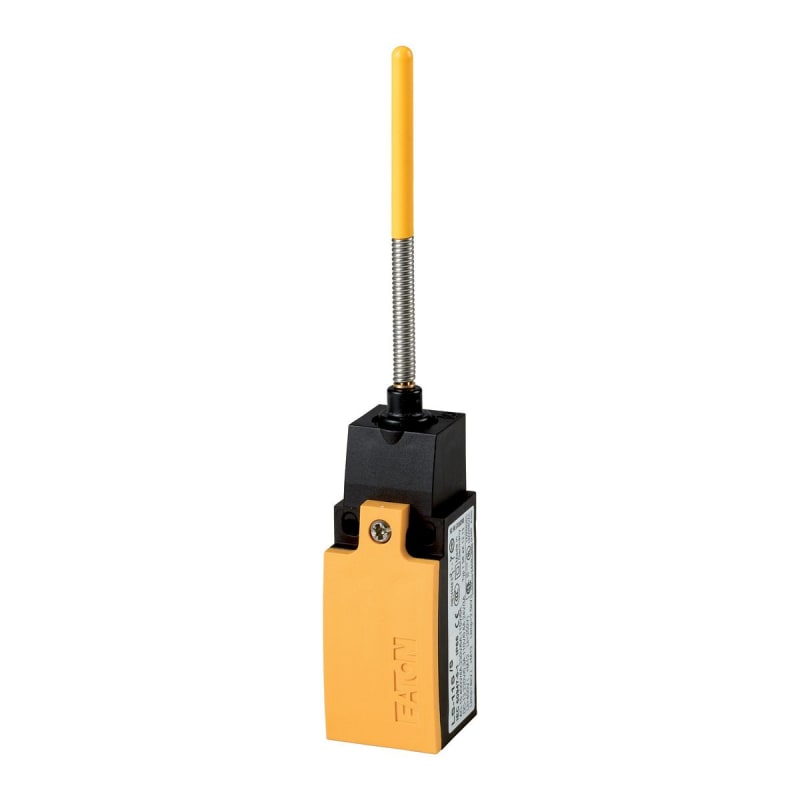

Eaton LS-11S/S Limit Switch 1NO+1NC Spring-Rod Actuator

Eaton LS-11S/S is a position/limit switch with 1 normally-open plus 1 normally-closed contact and a spring-rod actuator. The switch responds to sensing from any direction in the rod's radial plane and is rated 6 A nominal operational current with contact reliability certified per IEC/EN 60947-5 and UL 508. Typical applications include machinery guarding, conveyor position sensing and general presence detection.

Manufacturer part number (MPN)

LS-11S/S

EAN / GTIN

4015082661045

HS code

8536.90

Sales unit

pcs

Package quantity

2 pcs

Eaton catalogue number

266104

Depth

33.5 mm

Height

180 mm

Width

31 mm

Weight

0.067 kg

Certifications

CSA-C22.2 No. 14; CSA File No.: 012528; UL File No.: E29184; UL 508; CSA; IEC/EN 60947; UL; CE; UL Category Control No.: NKCR; CSA Class No.: 3211-03; IEC/EN 60947-5

Actuating force at beginning/end of stroke

1.0 N/8.0 N

Actuating torque of rotary drives

0.2 Nm

Actuator length

126 mm

Actuator type

Spring-rod

Mounting position

As required

Shock resistance

25 g, Standard-action contact, Mechanical, Half-sinusoidal shock 20 ms

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Control circuit reliability

1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA); 1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA)

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Equipment heat dissipation, current-dependent Pvid

0 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

0.17 W

Rated operational current for specified heat dissipation (In)

6 A

Static heat dissipation, non-current-dependent Pvs

0 W

Rated insulation voltage (Ui)

400 V

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

6 A

Rated operational current (Ie) at AC-15, 24 V

6 A

Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V

4 A

Rated operational current (Ie) at DC-13, 110 V

0.6 A

Rated operational current (Ie) at DC-13, 125 V

0.8 A

Rated operational current (Ie) at DC-13, 220 V, 230 V

0.3 A

Rated operational current (Ie) at DC-13, 24 V

3 A

Short-circuit protection rating

Max. 6 A gG/gL, Fuse, Contacts

Supply frequency

Max. 400 Hz, Contacts

Rated conditional short-circuit current (Iq)

1 kA

Electric connection type

Cable entry metrical

Enclosure color

Yellow Cover

Enclosure material

Insulated material; Plastic

Features

Snap-action contact

Switch function type

Quick-break switch

Connection type

Cage Clamp

Degree of protection

IP66/IP67; NEMA Other

Lifespan

8,000,000 mechanical Operations

Operating frequency

6000 Operations/h

Overvoltage category

III

Pollution degree

3

Product category

Spring-rod actuator

Rated impulse withstand voltage (Uimp)

4000 V AC

Repetition accuracy

0.15 mm (Contacts/switching capacity)

Type

Position switch

Explosion safety category for dust

None

Explosion safety category for gas

None

Terminal capacity (flexible with ferrule)

1 x (0.5 - 1.5) mm²

Terminal capacity (solid)

1 x (0.5 - 2.5) mm²

HS Code

8536.90
