Eaton

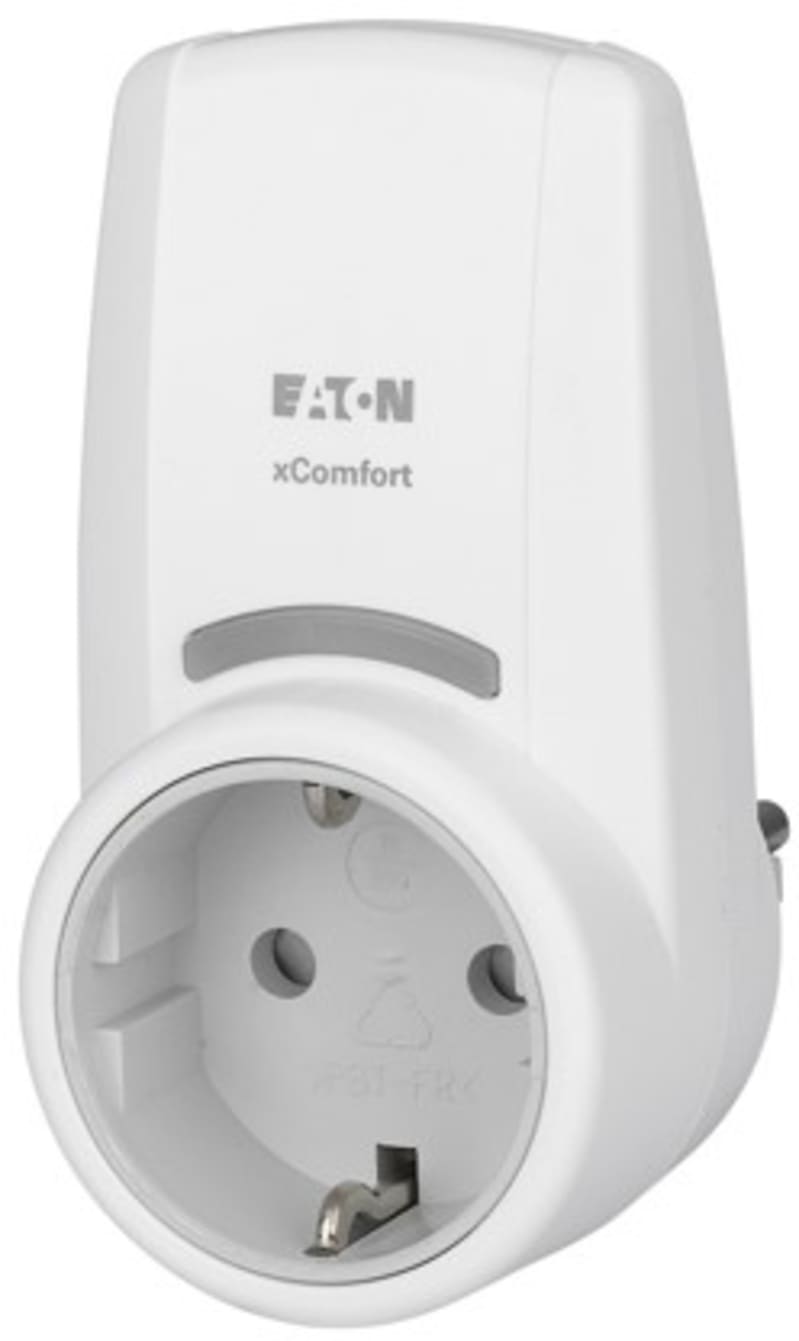

Pluggable Bryteakt. 12A, White
Part numberCSAP-01/F5-12EEAN / GTIN9010238075504HS code8536.90
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton CSAP-01/F5-12E Pluggable bryteraktuator 12A in colour white.
Technical Specifications
- Manufacturer part number (MPN)
- CSAP-01/F5-12E
- EAN / GTIN
- 9010238075504
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Eaton catalogue number
- 195168
- Depth
- 100.3 mm
- Height
- 76 mm
- Width
- 52 mm
- Weight
- 0.167 kg
- Compliances
- RoHS conform
- Features
- Radio frequent bidirectional; Local operation/hand operation
- Bus system operating type
- Other
- Actuation function
- Switching
- Bus system product type
- Actuator
- Number of inputs (binary)
- 0
- Number of switching contacts - max
- 1
- Rated operating voltage (Ue) - max
- 253 V
- Rated operating voltage (Ue) - min
- 196 V
- Amperage rating
- 12 A
- Fitted with
- LED indication; Bus connection
- Switching current - max
- 16 A
- Switching power - max
- 2760 W
- Width in number of modular spacings
- 0
- Output power
- 2760 W
- Power supply
- Mains
- Color
- Traffic white (RAL 9016)
- Degree of protection
- IP20
- Mounting method
- Plugged-in; Surface mounted (plaster)
- Suitable for
- C-load
- Power consumption
- 0.2 W
- Number of linkable devices
- 32
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- Yes
- Local operation/hand operation
- Yes
- With LED indication
- Yes
- Max. switching power
- 2760 W
- Suitable for C-load
- Yes
- Max. number of switching contacts
- 1
- Max. switching current
- 16 A
- Rated current
- 12 A
- Rated operating voltage
- 196–253 V
- Different phases connectable
- No
- With bus connection
- Yes
- Bus module detachable
- No
- Modular expandability
- No
- Country of origin
- Czechia
- Min. depth of built-in installation box
- 0 mm
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 9010238075504
- SAP 1200126824
- Code 81988371
Product Documentation
Document preview: Pluggable Bryteakt. 12A, White (CSAP-01/F5-12E) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Residual current circuit breaker with overcurrent 6A C Type-F
MB-300014
Eaton
DIN-Cover 3X1,5M (220E3032)
Eaton
Eaton FAZ-D20/3 Miniature Circuit Breaker — 3P, Type D, 20 A, 15 kA
Eaton
Residual current circuit breaker 63/2/003-A
170433
Eaton
Eaton F3A-XP Blank Flange Steel RAL 7035 for CS Wall-Mount Enclosures
Eaton

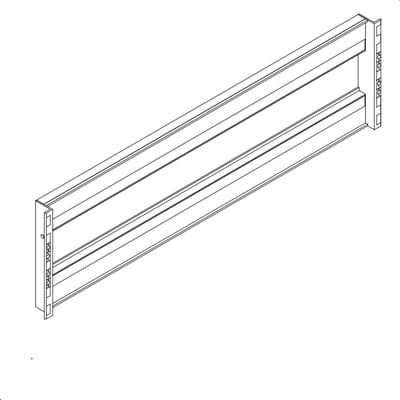

DIN-Cover 4X1M (220E3034)
