Eaton

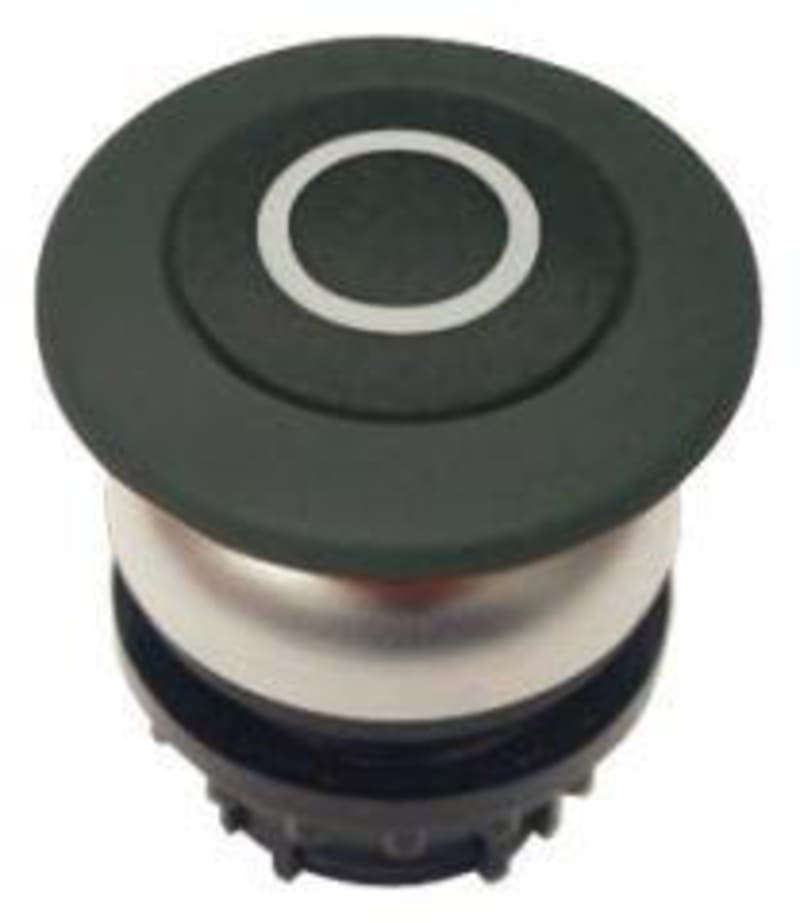

Mushroom pushbutton, momentary, black/stop
Part numberM22-DP-S-X0EAN / GTIN4015082167240HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-DP-S-X0 mushroom pushbutton, momentary, black, stop function.
Technical Specifications
- Manufacturer part number (MPN)
- M22-DP-S-X0
- EAN / GTIN
- 4015082167240
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216724
- Depth
- 37 mm
- Height
- 43 mm
- Width
- 37 mm
- Weight
- 0.016 kg
- Certifications
- UL File No.: E29184; IEC/EN 60947-5; UL Category Control No.: NKCR; VDE 0660; IEC/EN 60947; UL; UL 508; CE; CSA-C22.2 No. 94-91; CSA; CSA Class No.: 3211-03; CSA File No.: 012528; CSA-C22.2 No. 14-05; DNV; GL; LR
- Actuating force
- 5 N
- Actuator color
- Black
- Actuator function
- Momentary; Spring-return
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Mushroom-shaped; Classical
- Fitted with
- Front ring
- Inscription
- Inscribed
- Lens type
- Round
- Unlocking method
- None
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- Yes; With SWD-RMQ connections
- Degree of protection
- IP67/IP69K; NE
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082167240
- SAP 1000019001
- Code 8490907
Product Documentation
Document preview: SOPPKNAPP, IMP, BLACK/STOPP (M22-DP-S-X0) — Specification Data Sheet (OEM)
More from Eaton
Eaton

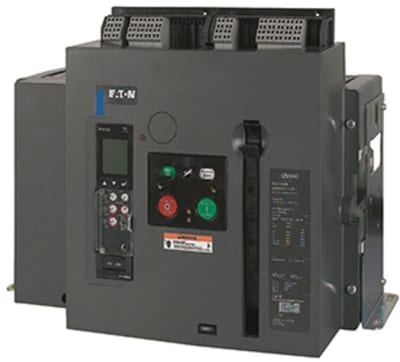

Eaton IZMX40H4-V40F-1
Eaton

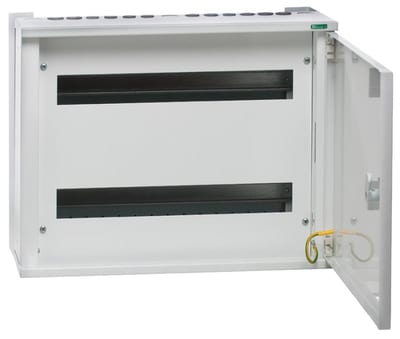

DIN insert for multi-cabinet
IKTA-INSERT/BI-3854
Eaton
Hex socket screw M10X160 8.8 xE Main
XNNSKS-M10X160-8
Eaton

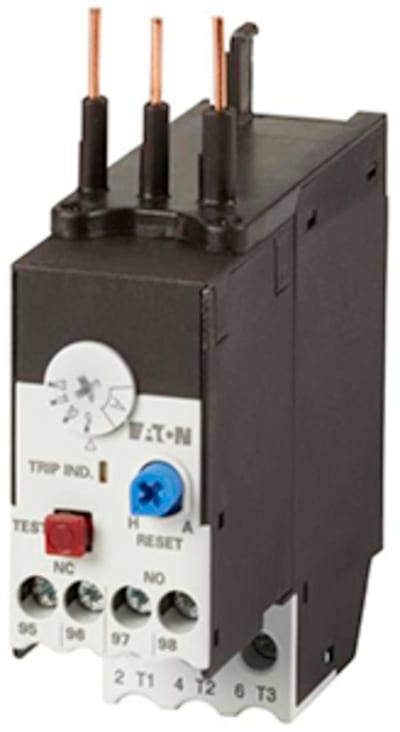

Overload relay ZBT12-10
Eaton

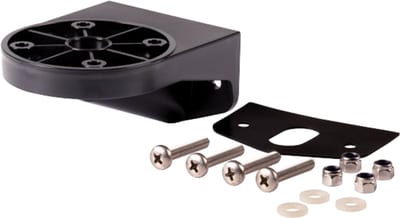

Plaplug Bracket, Vertical Mounting
SL7/4-FW
Eaton
Eaton IZMX-CAS403-2500-1
Eaton

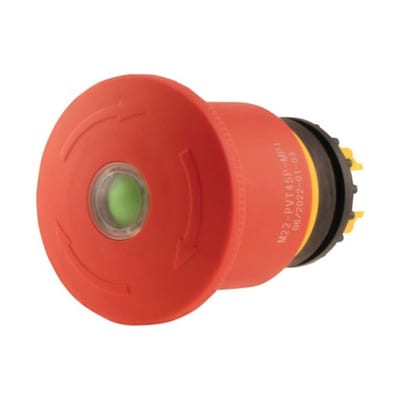

Emergency stopswitch, RMQ (M22-PVT45P-MPI)
Eaton

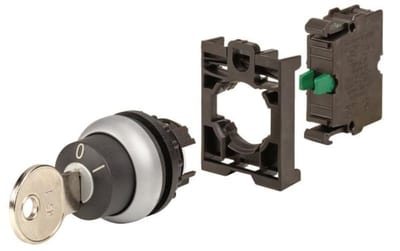

Key switch, RMQ (M22-WRS-K10-BVP)
