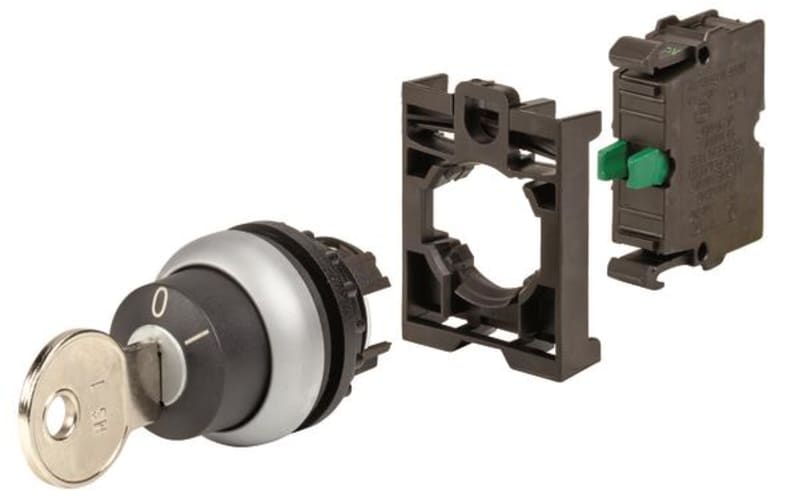

Key switch, RMQ (M22-WRS-K10-BVP)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Key switch, RMQ (M22-WRS-K10-BVP) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 50 pcs; Eaton catalogue number: 110917; Depth: 50 mm; Height: 80 mm; Width: 50 mm.
Technical Specifications
- Manufacturer part number (MPN)
- M22-WRS-K10-BVP
- EAN / GTIN
- 4015081104468
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Eaton catalogue number
- 110917
- Depth
- 50 mm
- Height
- 80 mm
- Width
- 50 mm
- Weight
- 0.053 kg
- Compliances
- CE
- Actuator color
- Black
- Actuator function
- Switching function latching
- Actuator type
- Key
- Bezel color
- Titanium
- Bezel material
- Plastic
- Fitted with
- Front ring
- Indicator color
- Other
- Lens type
- Round
- Number of switch positions
- 2
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Connection to SmartWire-DT
- No
- Heat dissipation per pole, current-dependent Pvid
- 0.11 W
- Rated operational current for specified heat dissipation (In)
- 6 A
- Degree of protection
- NEMA 4X
- Degree of protection (front side)
- IP66
- Lifespan, mechanical
- 100,000 Operations
- Opening diameter
- 22.5 mm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Size
- Front diameter: 29.7 mm
- Hole diameter
- 22 mm
- Suitable for lighting
- No
- Spring-return
- No
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP66
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Type of control element
- Key
- Colour control element
- Black
- Switching function latching
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015081104468
- SAP 1000767407
- Code 8559519
Product Documentation
