Eaton

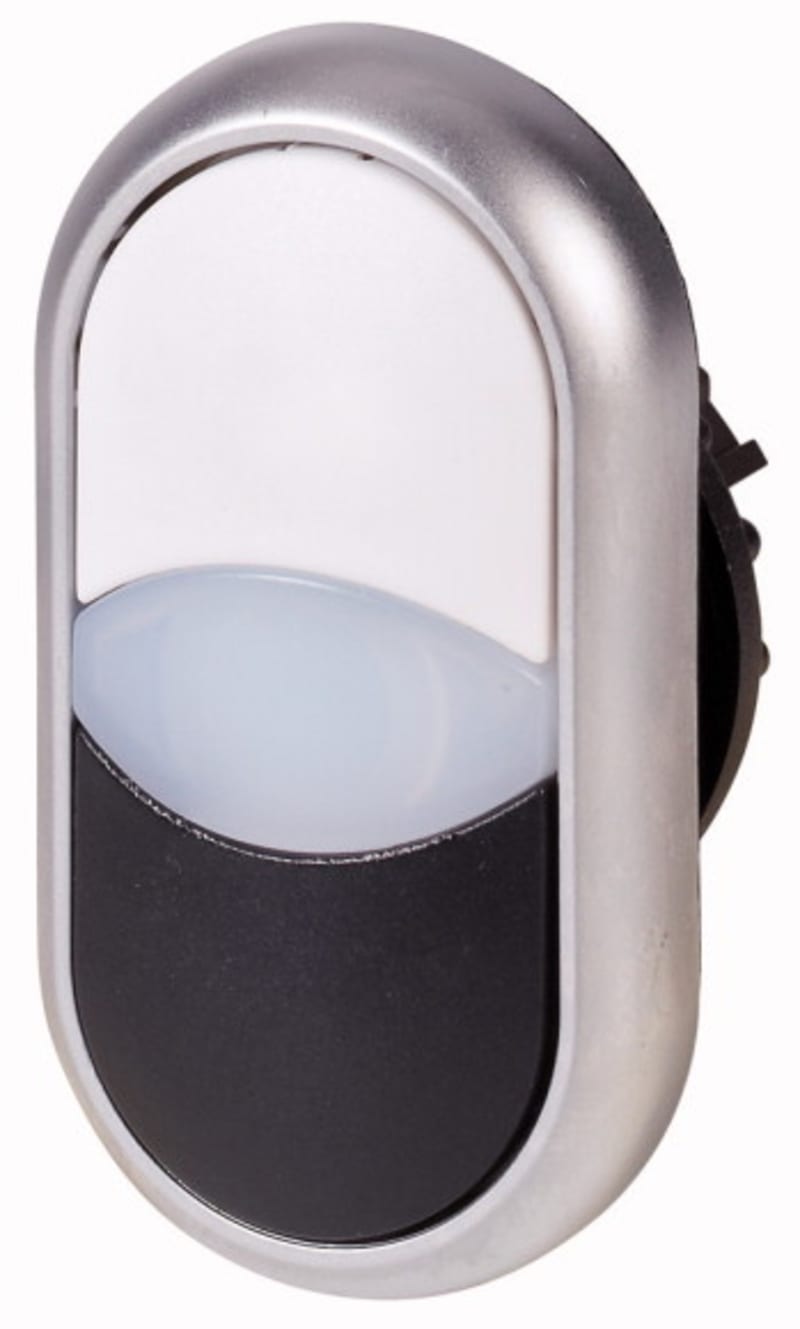

Double TR.BUTTON WHITE/BLACK with LIGHT
Part numberM22-DDL-WSEAN / GTIN4015082167042HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-DDL-WS Double actuator pushbutton, +indicator light, white/white/black.
Technical Specifications
- Manufacturer part number (MPN)
- M22-DDL-WS
- EAN / GTIN
- 4015082167042
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216704
- Depth
- 30 mm
- Height
- 55 mm
- Width
- 30 mm
- Weight
- 0.015 kg
- Compliances
- CE Marked
- Certifications
- CSA Std. C22.2 No. 94-91; UL 508; IEC 60947-5; CSA Std. C22.2 No. 14-05; EN 60947-5; VDE; CSA; CSA Class No.: 3211-03; CSA-C22.2 No. 14-05; UL Category Control No.: NKCR; IEC/EN 60947-5; CSA File No.: 012528; UL; IEC/EN 60947; UL File No.: E29184; CSA-C22.2 No. 94-91; VDE 0660; CE; DNV; GL; LR
- Actuating force
- 5 N
- Actuator color
- Black and white
- Actuator function
- Momentary; Spring-return
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Non-Flush; Classical
- Fitted with
- Front ring
- Inscription
- Blank
- Lens color
- White
- Lens type
- Oval
- Number of command positions
- 2
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -25 °C
- Ambient storage temperature - min
- -40 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Degree of protection
- NEMA 12; NEMA 3R; NEMA 13; IP66; NEMA 4X
- Degree of protection (front side)
- IP66; NEMA 4X
- Lifespan, mechanical
- 200,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 3600 Operations/h
- Product category
- RMQ-Titan
- Size
- Front dimensions: 29,7 x 54,7 mm
- Suitable for
- Illumination
- Type
- Double actuator
- Hole diameter
- 22 mm
- Suitable for lighting
- Yes
- Spring-return
- Yes
- Labelled
- No
- Type of button
- Flat
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP66
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082167042
- SAP 1000026325
- Code 8198155
Product Documentation
Document preview: Double TR.BUTTON WHITE/BLACK M/LYS (M22-DDL-WS) — Specification Data Sheet (OEM)
