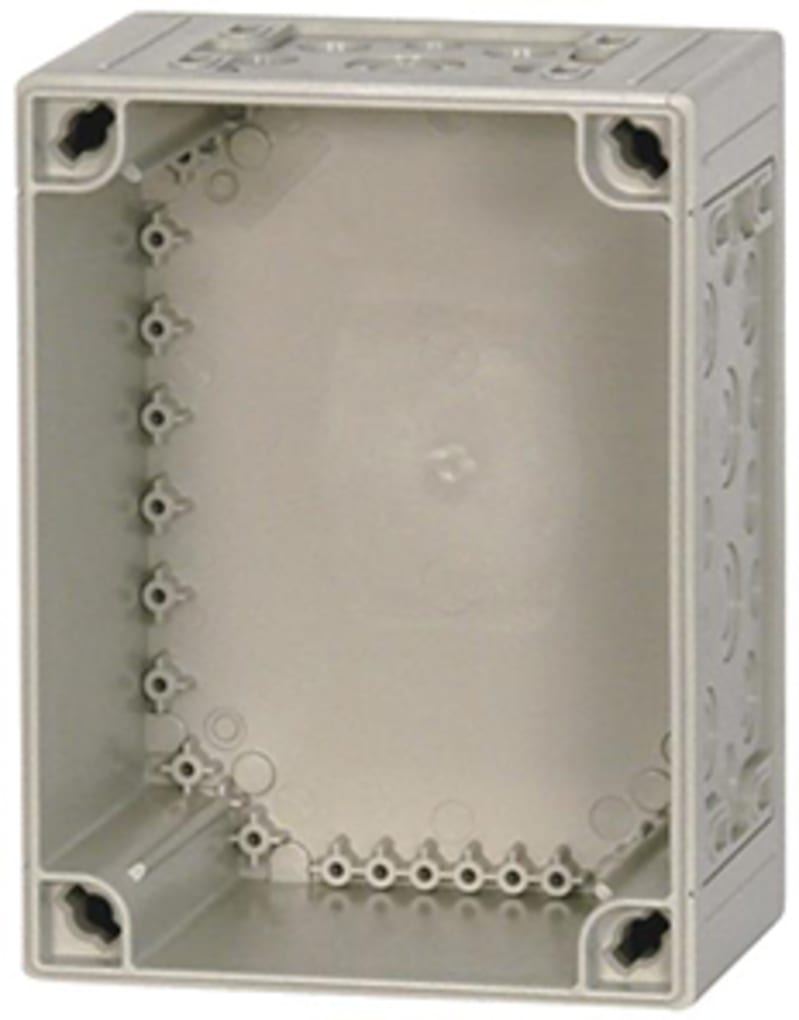

Plinth enclosure 250X187.5X120
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Plinth enclosure 250X187.5X120 (part number U-CI23E) is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Eaton catalogue number: 038793; Depth: 100 mm; Height: 250 mm; Width: 180 mm; Weight: 0.876 kg.
Technical Specifications
- Manufacturer part number (MPN)
- U-CI23E
- EAN / GTIN
- 4015080387930
- Sales unit
- pcs
- Eaton catalogue number
- 038793
- Depth
- 100 mm
- Height
- 250 mm
- Width
- 180 mm
- Weight
- 0.876 kg
- Compliances
- RoHS conform
- Certifications
- EN 62208; EN 61439-2
- Features
- Cover with overpressure release
- Functions
- Extension possible
- Protection class
- II
- RAL-number
- 7035
- Special features
- Flanges ￫#024355 Distance frame for CI45... ￫#110103 Full-area knockouts in the sides Metric cable entry knockouts in all sides
- Suitable for
- Lightning protection; Outdoor use
- Accessory/spare part type
- Individual enclosure bottoms
- Color
- Gray
- Nominal current
- 1600 A
- Type
- Basic enclosure Enclosure bases xEnergy Safety Ci
- Circuit integrity
- Other
- Base type
- Full-area knockouts
- Cable entry type
- 6 x M20; 4 x M16; 2 x M32/20; 4 x M25/16; 2 x M16; 4 x M20; 1 x M32/20; Top and bottom; Transverse
- Cover/door model
- Closed
- Cover/door type
- Optional; None
- Degree of protection
- IP65; IK10; Other
- Enclosure material
- Plastic
- Number of conduit inlets
- 30
- Number of modules
- 1
- Number of openings (flange plates)
- 4
- Number of rows
- 0
- Plate thickness (cabinet)
- 6 mm
- Plate thickness (cover/door)
- 6 mm
- Surface protection
- Other
- Unit type
- Modular system
- Width in number of modular spacings
- 9
- Built-in depth
- 150 mm
- Internal depth
- 100 mm
- Mounting method
- Surface mounted (plaster)
- Dimensions
- 250×187.5×120
- Colour
- Grey
- With mounting plate
- No
- Material
- Plastic
- Impact strength
- IK10
- Country of origin
- Finland
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015080387930
- SAP 1000788306
- Code 81399922
Product Documentation
More from Eaton
Eaton
Shield clamp xE Light (XLABFB)
Eaton
Eaton FAZ-Z6/3 Miniature Circuit Breaker — 3P, Type Z, 6 A, 15 kA
Eaton
Eaton DILM9-01(110V50HZ,120V60HZ) contactor 3-pole 4 kW 1 NC
Eaton
WALL-Mount Cabinet H400 B600 D200
CS-46/200
Eaton
Eaton NZMH2-PX160-TZ Molded-Case Circuit Breaker 3-Pole 160A 150KA
Eaton
Eaton FAZ-B12/3N Miniature Circuit Breaker — 3P+N, Type B, 12 A, 15 kA
Eaton
Backplate HxB=1060 x 600 mm
BPZ-RP-600/10
Eaton
Indikator light, Flat Front (M30C-FL-Y)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy U-CI23E?
- U-CI23E can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is U-CI23E.
- What is the HS code for U-CI23E?
- The customs tariff (HS) code for U-CI23E is 8538.10.
- Who manufactures U-CI23E?
- U-CI23E is a Eaton product in the Enclosures range.
- Is a datasheet available for U-CI23E?
- Yes — the U-CI23E datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for U-CI23E?
- The minimum order quantity is 1.
- Is U-CI23E available?
- Yes — U-CI23E is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
