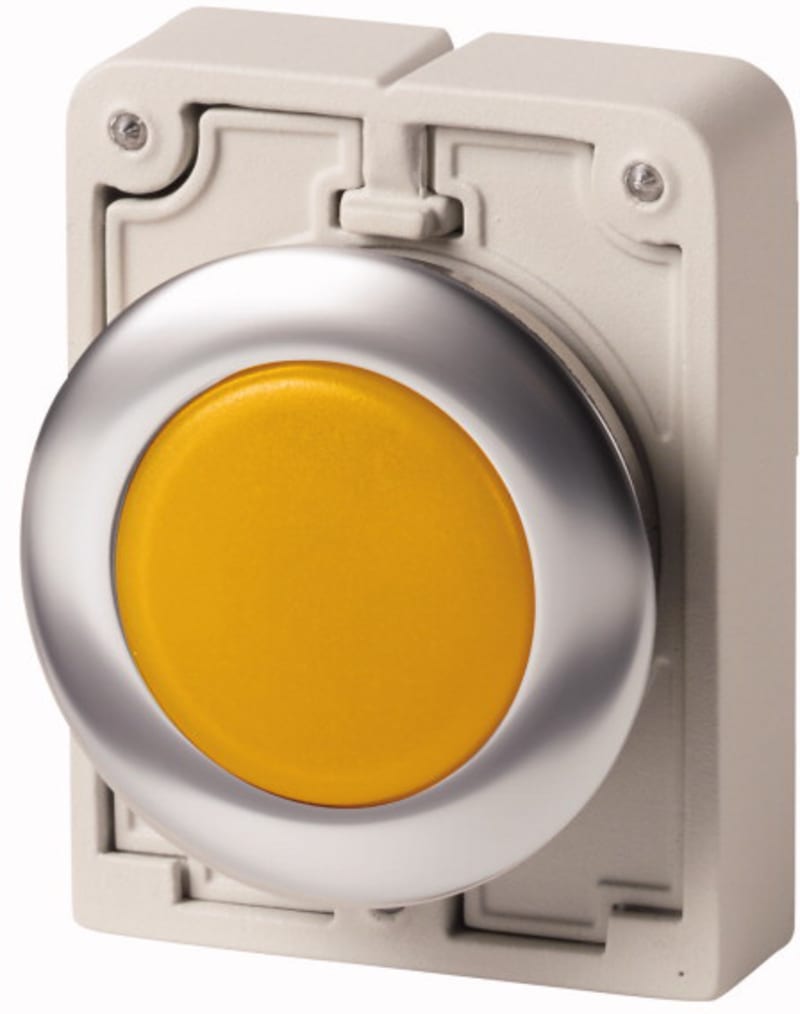

Indikator light, Flat Front (M30C-FL-Y)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Indikator light, Flat Front (M30C-FL-Y) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 183285; Depth: 36 mm; Height: 32 mm; Width: 46 mm; Weight: 0.035 kg.
Technical Specifications
- Manufacturer part number (MPN)
- M30C-FL-Y
- EAN / GTIN
- 4015081782260
- Sales unit
- pcs
- Eaton catalogue number
- 183285
- Depth
- 36 mm
- Height
- 32 mm
- Width
- 46 mm
- Weight
- 0.035 kg
- Certifications
- IEC/EN 60947; VDE 0660
- Bezel color
- Chrome
- Bezel material
- Metal
- Design
- Flat
- Fitted with
- Front ring
- Lens color
- Yellow
- Lens type
- Flat; Round
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Rated insulation voltage (Ui)
- 250 V
- Degree of protection
- NEMA 4X, 13
- Degree of protection (front side)
- IP67/IP69K
- Mounting position
- As required
- Opening diameter
- 30 mm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Size
- Front dimensions: Ø 36 mm
- Type
- Indicator lights
- Terminal capacity
- 0.5 - 1.5 mm², stranded; 0.5 - 1.5 mm², solid
- Hole diameter
- 30 mm
- Colour lens
- Yellow
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP67
- Material front ring
- Metal
- With front ring
- Yes
- Construction type lens
- Round
- Suitable for number of built-in signal lights
- 1
- Type of lens
- Flat
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081782260
- SAP 1200037097
- Code 81866602
Product Documentation
More from Eaton
Eaton
Eaton INX40B3-16F-1
Eaton
Front plate modular white H150 B1000 xE B
BPZ-FP-1000/150-45-W
Eaton
Plinth 300 kg + xE Main H100 B425 D600
XAP010406
Eaton
Shield clamp 3200A 3-pole xE Main
XBSB323
Eaton
White cabinet B=400 H=2060 D=300 (BP-F-400/20/3-W)
Eaton
Cover plate top/bottom xE Light (XLST2J11B)
Eaton
Push-button, Flat Front (M30C-FD-Y)
Eaton
Shield clamp xE Light (XLABF40)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy M30C-FL-Y?
- M30C-FL-Y can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is M30C-FL-Y.
- What is the HS code for M30C-FL-Y?
- The customs tariff (HS) code for M30C-FL-Y is 8538.90.
- Who manufactures M30C-FL-Y?
- M30C-FL-Y is a Eaton product in the Control & Automation range.
- Is a datasheet available for M30C-FL-Y?
- Yes — the M30C-FL-Y datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for M30C-FL-Y?
- The minimum order quantity is 1.
- Is M30C-FL-Y available?
- Yes — M30C-FL-Y is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
