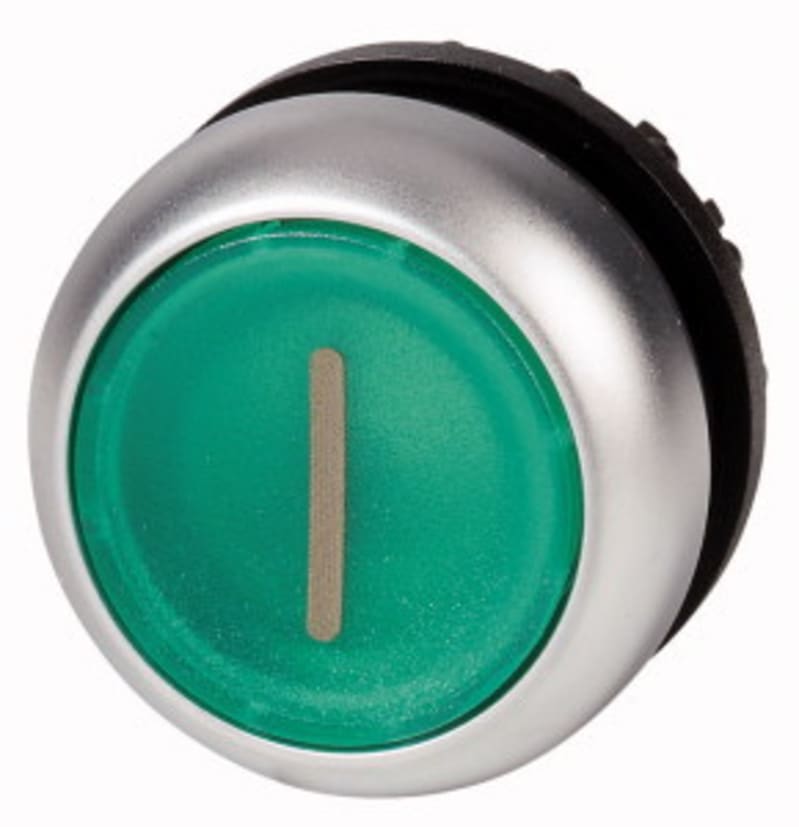

ILLUMINATED PUSH BUTTON,TR/TR,GREEN/Start

Eaton M22-DRL-G-X1 Illuminated pushbutton actuator, flush, green In, maintained.

Manufacturer part number (MPN)

M22-DRL-G-X1

EAN / GTIN

4015082169596

Sales unit

pcs

Package quantity

5 pcs

Eaton catalogue number

216959

Depth

30 mm

Height

30 mm

Width

30 mm

Weight

0.012 kg

Certifications

IEC/EN 60947; CSA Class No.: 3211-03; UL 508; CSA File No.: 012528; IEC/EN 60947-5; UL; UL Category Control No.: NKCR; CE; UL File No.: E29184; VDE 0660; CSA; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; DNV; GL; LR

Actuating force

5 N

Actuator color

Green

Actuator function

Switching function latching; Maintained

Bezel color

Titanium

Bezel material

Plastic

Design

Flush; Classical

Features

Labelled

Fitted with

Front ring

Functions

Stay-put/spring-return function can be changed on device

Inscription

Inscribed

Lens type

Round

Number of command positions

1

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection to SmartWire-DT

With SWD-RMQ connections; Yes

Degree of protection

IP66; IP67; NEMA 12; NEMA 4X; IP69K; NEMA 3R; NEMA 13

Degree of protection (front side)

IP67/IP69K; NEMA 4X

Lifespan, mechanical

1,000,000 Operations (AC operated)

Mounting position

As required

Opening diameter

22.5 mm

Operating frequency

1800 Operations/h

Product category

RMQ-Titan

Size

Front diameter: 29.7 mm

Suitable for

Illumination

Type

Illuminated pushbutton actuator

Hole diameter

22 mm

Colour button

Green

Suitable for lighting

Yes

Spring-return

Yes

Labelled

Yes

Type of button

Flat

Colour front ring

Chrome

Degree of protection (IP), front side

IP67/IP69K

With protective cover

No

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Switching function latching

Yes

Country of origin

Germany

HS Code

8536.50

• EAN 4015082169596
• SAP 1000068840
• Code 8763649
