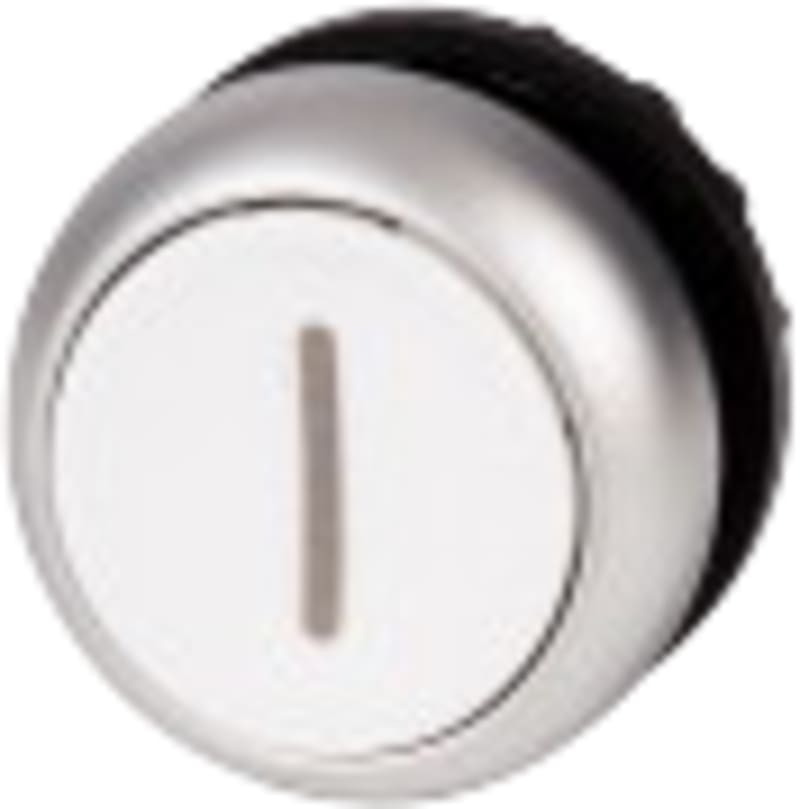

PUSH-BUTTON, IMPULSE, Start in
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton PUSH-BUTTON, IMPULSE, Start in (part number M22-D-W-X1) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 216611; Depth: 30 mm; Height: 30 mm; Width: 30 mm.
Technical Specifications
- Manufacturer part number (MPN)
- M22-D-W-X1
- EAN / GTIN
- 4015082166113
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 216611
- Depth
- 30 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.009 kg
- Certifications
- CE; CSA-C22.2 No. 14-05; UL; VDE 0660; CSA; CSA File No.: 012528; CSA-C22.2 No. 94-91; IEC/EN 60947; UL 508; CSA Class No.: 3211-03; IEC/EN 60947-5; UL Category Control No.: NKCR; UL File No.: E29184; DNV; GL; LR
- Actuating force
- 5 N
- Actuator color
- White
- Actuator function
- Momentary; Spring-return
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Flat; Classical
- Features
- Labelled
- Fitted with
- Front ring
- Inscription
- Inscribed
- Lens type
- Round
- Number of command positions
- 1
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Degree of protection
- IP67; NEMA 4X; NEMA 3R; IP66; IP69K; NEMA 13; NEMA 12
- Degree of protection (front side)
- IP67/IP69K; NEMA 4X
- Lifespan, mechanical
- 5,000,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 3600 Operations/h
- Product category
- RMQ-Titan
- Size
- Front dimensions: 22 x 22 mm
- Type
- Pushbutton actuator
- Hole diameter
- 22 mm
- Colour button
- White
- Suitable for lighting
- No
- Spring-return
- Yes
- Labelled
- Yes
- Type of button
- Flat
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP67/IP69K
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082166113
- SAP 1000005735
- Code 8472839
Product Documentation
More from Eaton
Eaton
Cover plate top/bottom xE Light (XLST2J10A)
Eaton
Replacement coil DILM32-XSP(RDC24)
Eaton
Cabinet H×W×D=1600X1000X600MM (XVTL-MP/BX/IC-10/6/16)
Eaton
Eaton FAZT-D12/1 Miniature Circuit Breaker — 1P, Type D, 12 A, 25 kA
Eaton
NH switch unit 160A (BPZ-XNH00X-4/1-600-MV)
Eaton
Contactor, DILM32-11(110V50HZ)-PI (DILM32-11(110V50HZ,120V60HZ)-PI)
Eaton
Wall-mount cabinet IP55 xE without door H1060 B800 D270
174364
Eaton
Rear Wall xE Light (XLSR51612)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy M22-D-W-X1?
- M22-D-W-X1 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is M22-D-W-X1.
- What is the HS code for M22-D-W-X1?
- The customs tariff (HS) code for M22-D-W-X1 is 8536.50.
- Who manufactures M22-D-W-X1?
- M22-D-W-X1 is a Eaton product in the Control & Automation range.
- Is a datasheet available for M22-D-W-X1?
- Yes — the M22-D-W-X1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for M22-D-W-X1?
- The minimum order quantity is 1.
- Is M22-D-W-X1 available?
- Yes — M22-D-W-X1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
