Eaton

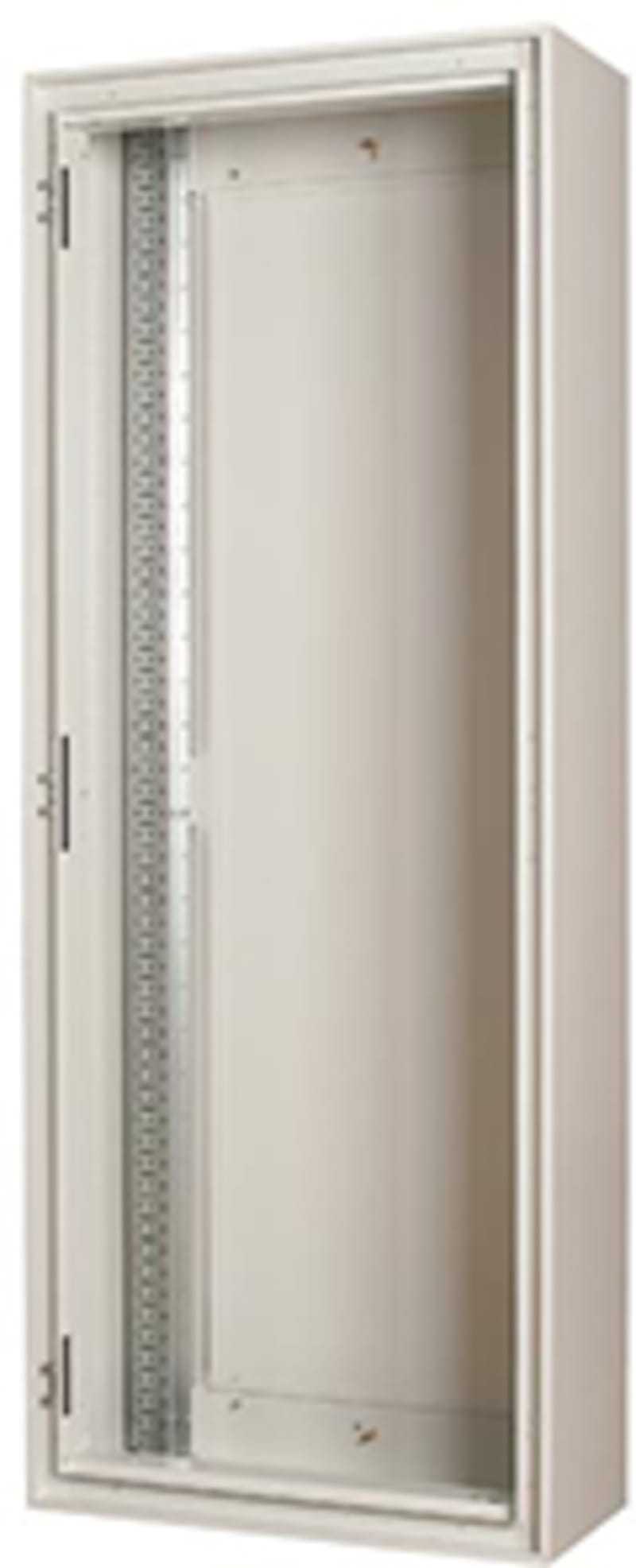

Wall-mount cabinet IP55 xE without door H1060 B800 D270
Part number174364EAN / GTIN4015081708260HS code8538.10
Enclosures
Distribution Boards
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 174364 BPM-O-800/10-F.
Technical Specifications
- Manufacturer part number (MPN)
- 174364
- EAN / GTIN
- 4015081708260
- Sales unit
- pcs
- Eaton catalogue number
- 174364
- Depth
- 270 mm
- Height
- 1060 mm
- Width
- 800 mm
- Weight
- 33 kg
- Compliances
- RoHS conform
- Features
- EMC-version
- Functions
- Basic device; Extension possible; Sealable
- RAL-number
- 7035
- Special features
- Without door
- Application
- Moisture-proof (installation site)
- Color
- Light gray (RAL 7035); Gray
- Type
- Basic device
- Built-in height
- 1060 mm
- Built-in width
- 800 mm
- Closure type
- Other
- Cover/door model
- Closed
- Cover/door type
- Door; Single
- Enclosure material
- Steel
- Internal depth
- 265 mm
- Material
- Sheet steel
- Mounting method
- Surface mounted (plaster); Surface mounting
- Number of rows
- 6
- Surface finishing
- With powder coating
- Width in number of modular spacings
- 35
- Built-in depth
- 270 mm
- Degree of protection
- IP55
- Colour
- Grey
- UV resistant
- No
- With mounting plate
- No
- Type of covering
- Door
- EMC-version
- No
- Extension possible
- Yes
- Inner depth
- 265 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Steel
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- No
- With lock
- No
- Cover model
- Closed
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081708260
- SAP 1200283295
- Code 82252611
Product Documentation
Document preview: Wall-mount cabinet IP55 xE u/door H1060 B800 D270 (174364) — Specification Data Sheet (OEM)
