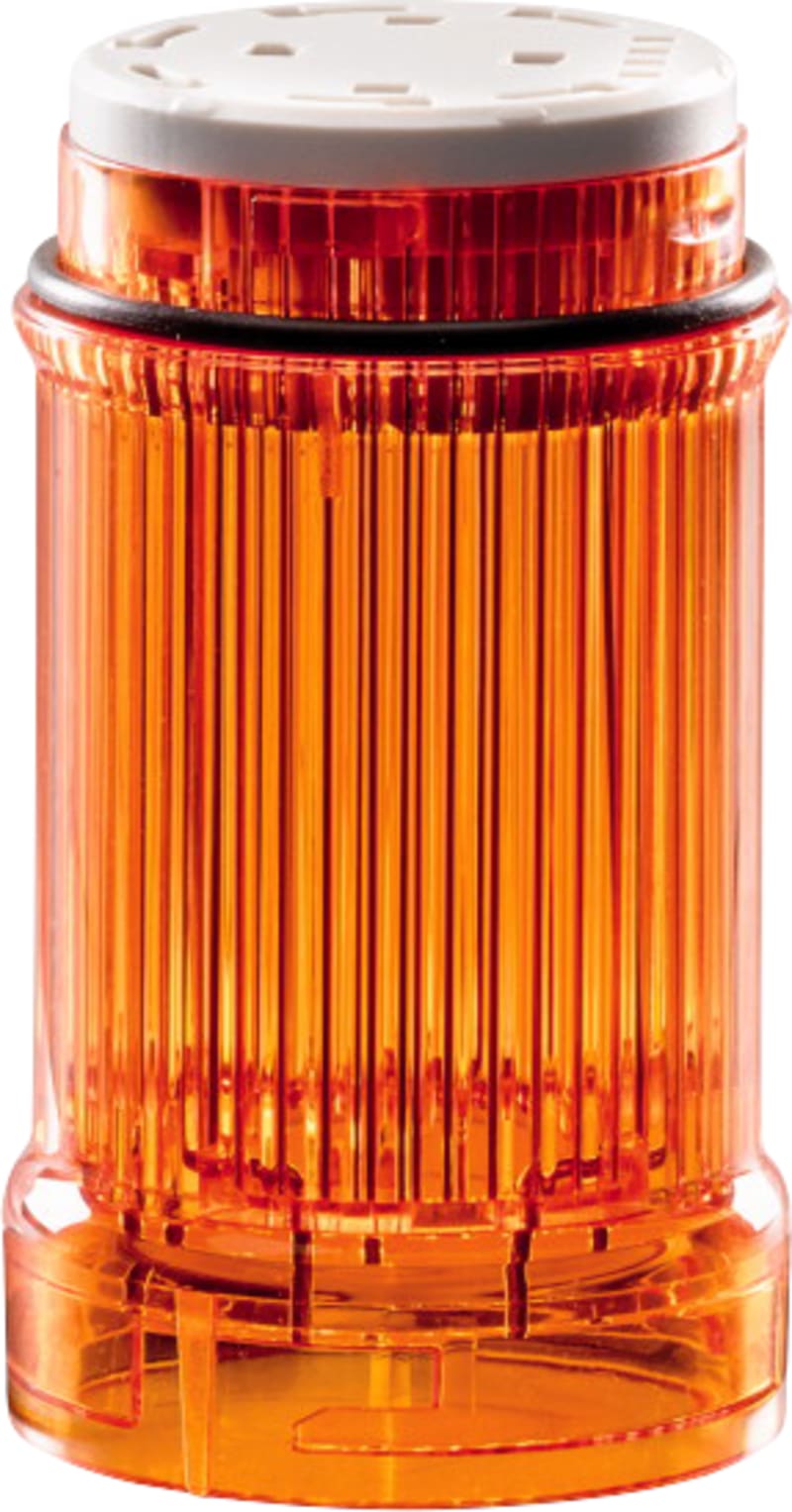

LED Konst.Orange, 24V (SL4-L24-A)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton LED Konst.Orange, 24V (SL4-L24-A) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 171318; Depth: 43 mm; Height: 75 mm; Width: 43 mm; Weight: 0.042 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL4-L24-A
- EAN / GTIN
- 4015081678570
- Sales unit
- pcs
- Eaton catalogue number
- 171318
- Depth
- 43 mm
- Height
- 75 mm
- Width
- 43 mm
- Weight
- 0.042 kg
- Compliances
- CE Marked
- Catalog Notes
- 0
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Leakage current
- 0.003 A
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage (Ue) at AC - max
- 24 V
- Rated operational voltage (Ue) at AC - min
- 24 V
- Rated operational voltage (Ue) at DC - max
- 24 V
- Rated operational voltage (Ue) at DC - min
- 24 V
- Color
- Orange
- Enclosure color
- Black
- Functions
- Continuous light
- Light modules
- LED
- Number of modules
- Max. 10 (with base for mounting on both sides); Max. 5 (with standard base)
- Connection to SmartWire-DT
- No
- Current consumption
- 50 mA at 24 V AC/DC
- Degree of protection
- IP66; NEMA 13
- Lifespan, electrical
- 100,000 h
- Light type
- Continuous light
- Material
- Enclosure: Polycarbonate (PC); Cap: Polycarbonate (PC)
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Radiation angle
- 360 °
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27
- Type
- Continuous light module
- Voltage type
- AC/DC
- Colour
- Orange
- Outer diameter
- 43 mm
- Housing colour
- Black
- Lamp type
- LED
- Operating voltage AC 50 Hz
- 24 V
- Operating voltage AC 60 Hz
- 24 V
- Operating voltage DC
- 24 V
- Repetition frequency settable
- No
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015081678570
- SAP 1000489667
- Code 8274507
