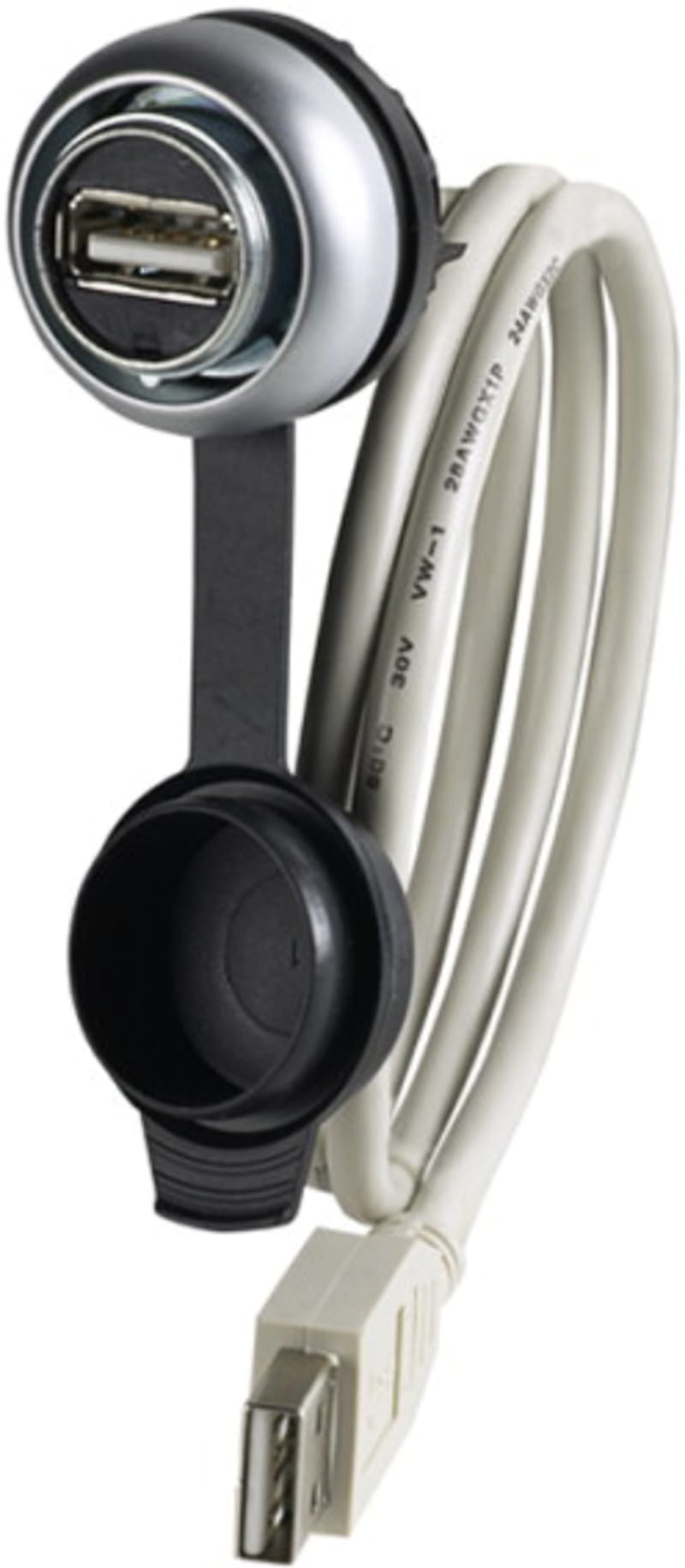

USB Sokket M / Cable

Eaton USB Sokket M / Cable (part number M22-USB-SA) is listed under Control & Automation / Pushbuttons & Pilot Lights. HS code: 8544.42; Sales unit: pcs; Eaton catalogue number: 107412; Depth: 120 mm; Height: 30 mm; Width: 120 mm.

Manufacturer part number (MPN)

M22-USB-SA

EAN / GTIN

4015081071500

HS code

8544.42

Sales unit

pcs

Eaton catalogue number

107412

Depth

120 mm

Height

30 mm

Width

120 mm

Weight

0.043 kg

Compliances

CE Marked

Certifications

UL 508; CSA Std. C22.2 No. 142; IEC 6113-2; CE; UL Category Control No.: DUXR, DUXR7; UL; Certified by UL for use in Canada; IEC/EN 6113-2; UL File No.: E330994; UL report applies to both US and Canada; CSA-C22.2 No. 142; CSA Class No.: none

Catalog Notes

Prefabricated cable with permanently connected USB 3.0 Type A plug

Bezel color

Titanium

Design

USB 3.0 A

Material

Titanium front ring

Number of poles

Nine-pole

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-20 °C

Connection to SmartWire-DT

No

Heat dissipation capacity Pdiss

0 W

Insulation resistance

≥ 100 MΩ

Nominal current

900 A

Nominal voltage - max

30 V

Rated operational voltage

5 V AC/DC

Resistance

< 30 mΩ (volume resistance)

Accessories

Connection cable

Accessory/spare part type

Accessory

Degree of protection

IP20 (with plug connected); IP65 (with closed cover); NEMA 12 (with closed cover)

Lifespan, mechanical

100 insertion cycles

Mounting depth

70 mm

Opening diameter

22.5 mm

HS Code

8544.42

• EAN 4015081071500
• SAP 1000080136
• Code 8817232
