Eaton

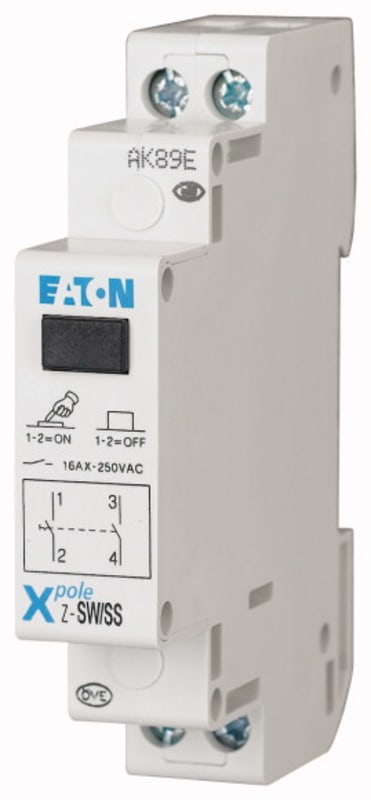

SWITCH, modular (276301)
Part number276301EAN / GTIN4015082763015HS code8536.90
Switchgear & Protection
Disconnect Switches
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 276301 Xpole Z-SW/SS.
Technical Specifications
- Manufacturer part number (MPN)
- 276301
- EAN / GTIN
- 9007912227397
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Eaton catalogue number
- 276301
- Depth
- 80 mm
- Height
- 70 mm
- Width
- 17.5 mm
- Weight
- 0.06 kg
- Compliances
- RoHS conform
- Equipment heat dissipation, current-dependent
- 4 W
- Rated operational voltage (Ue) - max
- 250 V
- Voltage rating - min
- 230 V
- Width in number of modular spacings
- 1
- Number of poles
- Two-pole
- Color calotte
- Other
- Switch type
- Control switch
- Rated short-time withstand current (Icw)
- 0.02 kA
- Lamp socket
- Other
- Built-in depth
- 60 mm
- Amperage rating
- 16 A
- Voltage type
- AC
- Lamp type
- Other
- Degree of protection
- IP40
- Heat dissipation per pole, current-dependent
- 2 W
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally closed contacts)
- 0
- Number of contacts (normally open contacts)
- 2
- Inscription
- Other
- Rated operational current for specified heat dissipation (In)
- 16 A
- Rated Switching Capacity
- 0.016 kA
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 9007912227397
- SAP 1000080322
- Code 8571669
Product Documentation
Document preview: SWITCH, modular (276301) — Specification Data Sheet (OEM)
