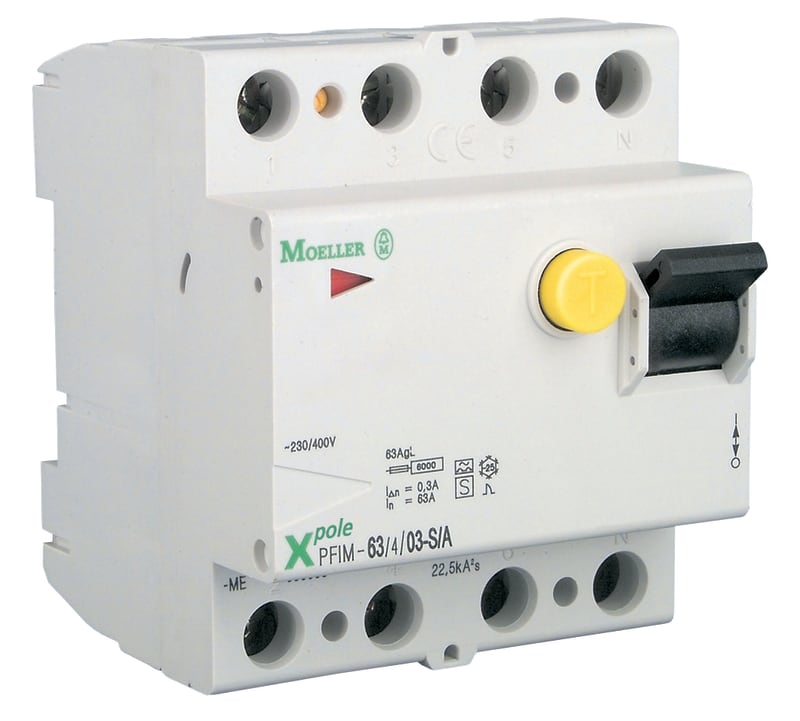

Residual current circuit breaker 63A 4P 100MA S/A
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton PFIM-63/4/01-S/A Residual current circuit breaker 63A 4p 100mA S/A.
Technical Specifications
- Manufacturer part number (MPN)
- PFIM-63/4/01-S/A
- EAN / GTIN
- 4015082354718
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Rated current
- 63 A
- Number of poles
- 4
- Mounting method
- DIN rail
- Colour
- Grey
- Voltage type
- AC
- Built-in depth
- 70.5 mm
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 440 V
- Rated fault current
- 0.1 A
- Leakage current type
- A
- Selective protection
- Yes
- Short-circuit breaking capacity (Icw)
- 10 kA
- Surge current capacity
- 5 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 4
- Short-time delayed tripping
- No
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 10.5 W
- Frequency
- 50 Hz
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1.5–35 mm²
- Connectable conductor cross section multi-wired
- 1.5–16 mm²
- With interlocking device
- Yes
- Ambient temperature during operating
- -25–40 °C
- Additional equipment possible
- Yes
- Device width
- 70 mm
- Device height
- 80 mm
- Device depth
- 76 mm
- Rated impulse withstand voltage Uimp
- 4 kV
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015082354718
- SAP 1000030907
- Code 8241231
