Contact element 2NO front

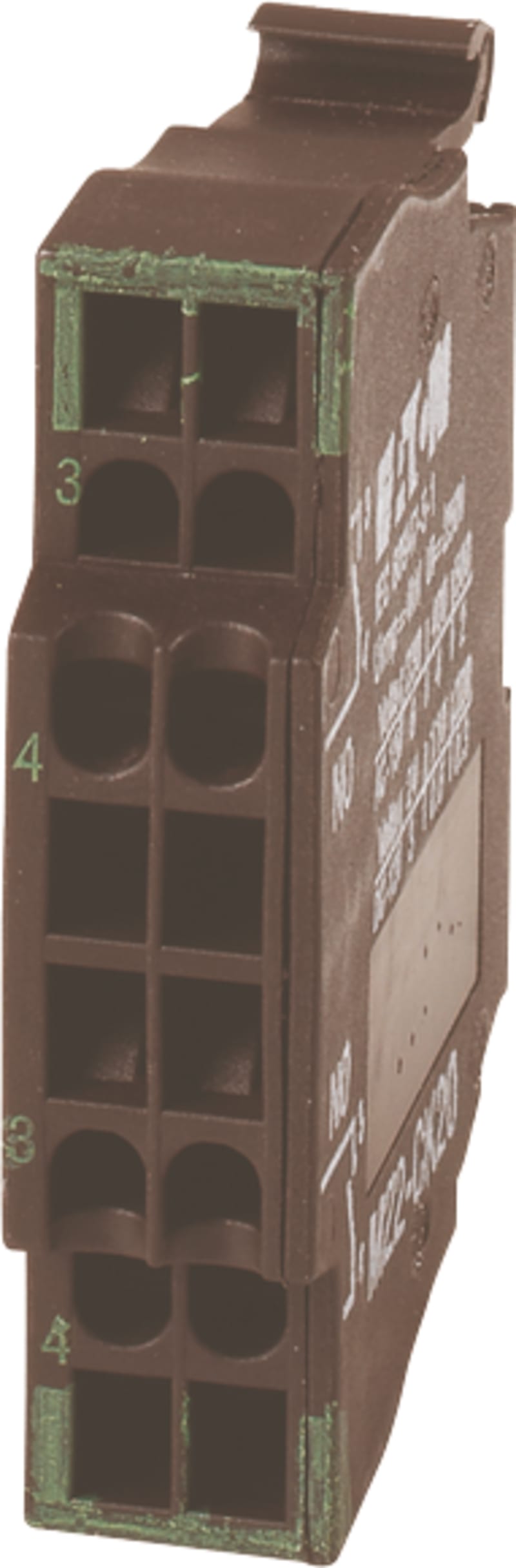

Eaton M22-CK20 Contact Element 2NO front.

Manufacturer part number (MPN)

M22-CK20

EAN / GTIN

4015081075355

Sales unit

pcs

Package quantity

20 pcs

Eaton catalogue number

107898

Depth

43 mm

Height

10 mm

Width

38 mm

Weight

0.012 kg

Compliances

CE Marked

Certifications

CSA Std. C22.2 No. 14-05; EN 60947-5; CSA Std. C22.2 No. 94-91; UL 508; IEC 60947-5; CSA; CE; CSA Class No.: 3211-03; IEC/EN 60947-5; UL; CSA File No.: 012528; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; UL/CSA; IEC; IEC 60947-5-1; UL File No.: E29184; UL Category Control No.: NKCR

Actuating force - max

10 N

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection to SmartWire-DT

No

Control circuit reliability

1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA); 1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA)

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

2

Heat dissipation per pole, current-dependent Pvid

0.05 W

Rated operational current for specified heat dissipation (In)

4 A

Conventional thermal current Ith of auxiliary contacts (1-pole, open)

4 A

Rated insulation voltage (Ui)

250 V

Rated operational current (Ie) at AC-15, 115 V

4 A

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

6 A

Rated operational current (Ie) at DC-13, 110 V

0.6 A

Rated operational current (Ie) at DC-13, 220 V, 230 V

0.3 A

Rated operational current (Ie) at DC-13, 24 V

3 A

Rated operational current (Ie) at DC-13, 60 V

1 A

Rated operational voltage (Ue) at AC - max

230 V

Rated operational voltage (Ue) at DC - max

220 V

Electric connection type

Spring clamp connection

Degree of protection

IP20

Model

Top mounting and integrable

Operating frequency

3600 Operations/h

Overvoltage category

III

Pollution degree

3

Product category

Accessories

Rated impulse withstand voltage (Uimp)

4000 V AC

Type

Auxiliary contact

Connection type

Front fixing; Double contact; Cage Clamp

Mounting method

Front fastening

Short-circuit protection

PKZM0-10/FAZ-B6/1, Contacts, Max. short-circuit protective device, Fuseless

Short-circuit protection rating

Max. 10 A gG/gL, Fuse, Contacts; Max. 10 A gG/gL, Fuse, Auxiliary contacts

Terminal capacity (AWG)

1 x (20 - 18); 2 x (20 - 18)

Terminal capacity (flexible with ferrule)

0.5 - 1.5 mm²

Terminal capacity (solid)

0.5 - 1.5 mm²

Terminal capacity (solid/flexible with ferrule)

1 x (0,5 - 1,5) mm²; 2 x (0,5 - 0,75) mm²

Terminal capacity (stranded)

0.5 - 1.5 mm²

Country of origin

Germany

HS Code

8538.90
