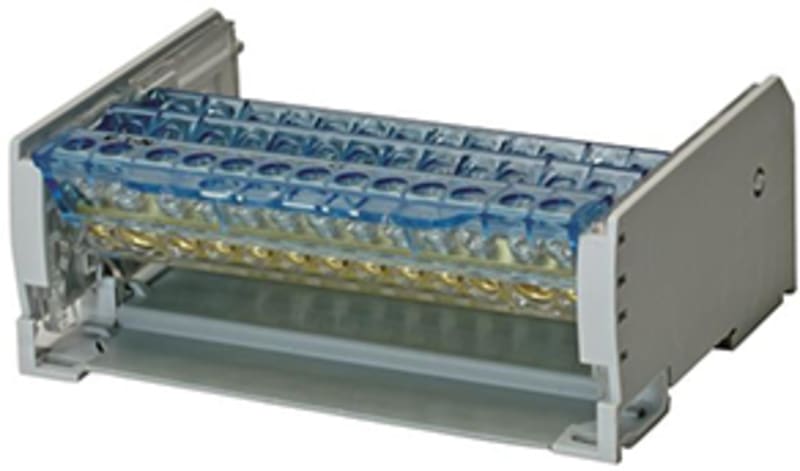

Terminal 4 poles 125A (BPZ-KB-13/125)
Part numberBPZ-KB-13/125EAN / GTIN4015081025794HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Terminal 4 poles 125A (BPZ-KB-13/125) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 50 pcs; Eaton catalogue number: 102719; Depth: 48 mm; Height: 93 mm; Width: 126 mm.
Technical Specifications
- Manufacturer part number (MPN)
- BPZ-KB-13/125
- EAN / GTIN
- 4015081025794
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Eaton catalogue number
- 102719
- Depth
- 48 mm
- Height
- 93 mm
- Width
- 126 mm
- Weight
- 0.396 kg
- Compliances
- RoHS conform
- Certifications
- IEC 60 947 -7 -1
- Comparative tracking index (CTI)
- PC = 300 V; PA66 = 600 V
- Flame classification (UL 94)
- V-2 (PC); V-0 (PA66)
- Functions
- Additional equipment
- Special features
- Clicks on DIN-rail or on base plate. Save time on wiring. Save 80% on space used. Modular construction, 1-4 pole Systems can be built with several blocks. Material, hexagon socket set screw: Steel Zinc plated (Hexagon socket set screw, Surface finish)
- Amperage rating
- 125 A
- Number of poles
- Four-pole
- Heat deflection temperature
- PC ≥ 120 °C; PA66 ≥ 140 °C
- Rated operation current (Ie) Cu (IEC)
- 125 A
- Rated peak withstand current
- 29 kA
- Rated short-time withstand current (Icw)
- 4.2 kA
- Voltage rating at AC Cu (IEC) - max
- 690 VAC
- Voltage rating at DC Cu (IEC) - max
- 1500 VDC
- Clamp material
- Brass; Plain
- Conductor cross section (solid, solid-strand) - max
- 35 mm²
- Conductor cross section (solid, solid-strand) - min
- 2.5 mm²
- Cover/door color
- Clear (housing body)
- Housing color
- Light gray (RAL 7035)
- Housing material
- PC; PA66
- Mounting method
- Flush mounting; Floor standing distribution board; Surface mounting
- Mounting position
- Universal
- Number of clamp positions per pole
- 13
- Number of clamping units per pole
- 14
- Terminal capacity (single/multi-wire)
- 1.5 mm² - 16 mm² (outgoing); 1.5 mm² - 10 mm² (outgoing, fine wire (with sleeve)); 1.5 mm² - 25 mm² (outgoing); 1.5 mm² - 16 mm² (outgoing, fine wire (with sleeve)); 6 mm² - 25 mm² (incoming, fine wire (with sleeve)); 6 mm² - 35 mm² (incoming)
- Degree of protection
- IP20
- Torque rating
- 1.5 Nm
- Conductor cross section solid (solid, stranded)
- 2.5–35 mm²
- Max. rated current
- 125 A
- With N-rail
- No
- With PE-rail
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081025794
- SAP 1200562660
- Code 82906067
Product Documentation
Document preview: Terminal 4 poles 125A (BPZ-KB-13/125) — Specification Data Sheet (OEM)
