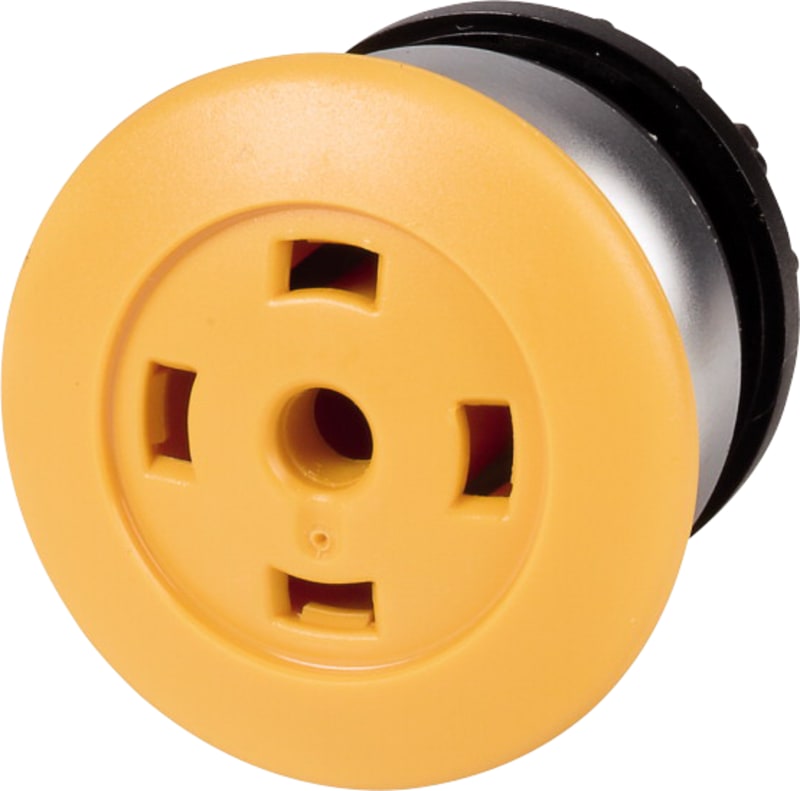

Mushroom pushbutton, impulse, yellow without label
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Mushroom pushbutton, impulse, yellow without label (part number M22-DRP-Y-X) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 5 pcs; Eaton catalogue number: 216768; Depth: 37 mm; Height: 43 mm; Width: 37 mm.
Technical Specifications
- Manufacturer part number (MPN)
- M22-DRP-Y-X
- EAN / GTIN
- 4015082167684
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216768
- Depth
- 37 mm
- Height
- 43 mm
- Width
- 37 mm
- Weight
- 0.016 kg
- Certifications
- IEC/EN 60947-5; UL Category Control No.: NKCR; UL File No.: E29184; UL 508; IEC/EN 60947; VDE 0660; CSA File No.: 012528; CSA-C22.2 No. 14-05; CSA Class No.: 3211-03; CSA-C22.2 No. 94-91; CSA; UL; CE; DNV; GL; LR
- Actuating force
- 5 N
- Actuator color
- Yellow
- Actuator function
- Maintained; Switching function latching
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Mushroom-shaped; Classical
- Fitted with
- Front ring
- Lens type
- Round
- Unlocking method
- None
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Degree of protection
- IP67/IP69K; NEMA 4X,
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082167684
- SAP 1000036604
- Code 8735441
Product Documentation
More from Eaton
Eaton
DA1 variable-frequency drive, 1-3 230V, 0.75 kW
DA1-124D3FB-A20C
Eaton
Eaton Rotary handle Lockable Red Low Type NZM1-XTVDVR-0
Eaton
Eaton Reversing Starter, Spring Clamp Connection (MSC-R-10-M9(230V50HZ)-PI)
Eaton
Eaton IZMX16H4-P16F-1
Eaton
Eaton FAZ-K50/4 Miniature Circuit Breaker — 4P, Type K, 50 A, 15 kA
Eaton
Base 250mm Aluminium Tube, banjobolt (SL7-CB-T-250)
Eaton
threaded plate (GP-8)
Eaton
P3 Main switch, 80 A,3 pole, Form EA/SVB (1414028)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy M22-DRP-Y-X?
- M22-DRP-Y-X can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is M22-DRP-Y-X.
- What is the HS code for M22-DRP-Y-X?
- The customs tariff (HS) code for M22-DRP-Y-X is 8536.50.
- Who manufactures M22-DRP-Y-X?
- M22-DRP-Y-X is a Eaton product in the Control & Automation range.
- Is a datasheet available for M22-DRP-Y-X?
- Yes — the M22-DRP-Y-X datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for M22-DRP-Y-X?
- The minimum order quantity is 1.
- Is M22-DRP-Y-X available?
- Yes — M22-DRP-Y-X is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
