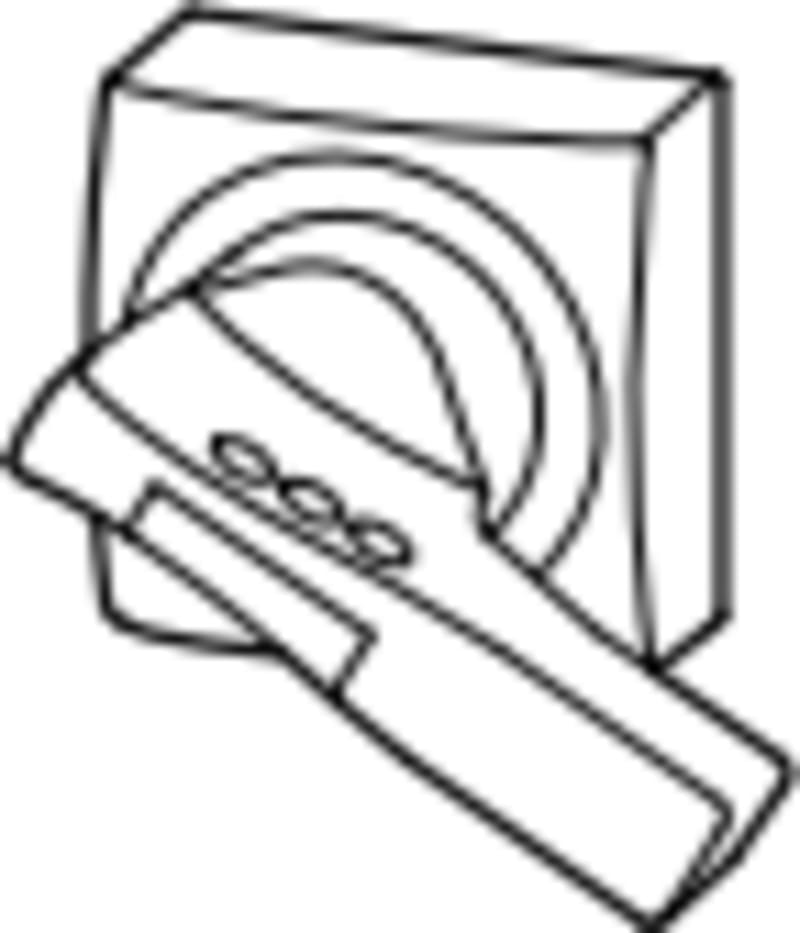

Eaton Rotary handle Lockable Red Low Type NZM1-XTVDVR-0

Eaton NZM1-XTVDVR-0 Rotary handle Lockable Red Low Type.

Manufacturer part number (MPN)

NZM1-XTVDVR-0

EAN / GTIN

4015082794002

Sales unit

pcs

Eaton catalogue number

279400

Depth

75 mm

Height

190 mm

Width

90 mm

Weight

0.564 kg

Compliances

UL/CSA; IEC; RoHS conform

Certifications

UL489; CSA (Class No. 1437-01); CSA (File No. 22086); IEC60947; CE marking; CSA-C22.2 No. 5-09; UL listed; CSA certified; UL (Category Control Number DIHS); UL (File No. E140305)

Features

Red-yellow for emergency switching off; Lockable

Fitted with

Padlock

Frame

NZM1

Suitable for

Switch disconnector; Emergency stop; Power circuit breaker

Type

Accessory Door coupling rotary handle

Used with

NZM1(-4), PN1(-4), N(S)1(-4)

Color

Red

Cover/door type

Door interlock not defeated in the locked OFF position.; Door can be opened in OFF; Door interlock can be modified in the unlocked ON position; Door interlock can be modified such that it can be defeated from the outside using a screwdriver

Degree of protection / NEMA enclosure type

IP66; 4X. 12

Lock number

Double lockable

Locking facility

Lockable on the handle on the switch using up to 3 padlocks; With door interlock

Colour

Black

Lockable

Yes

Padlock locking

Yes

Suitable for emergency stop

Yes

With extension shaft

No

With restart blockage

No

Suitable for power circuit breaker

Yes

Suitable for switch disconnector

Yes

Degree of protection (NEMA)

4X, 12

With key lock

No

Country of origin

Germany

HS Code

8538.90

• EAN 4015082794002
• SAP 1000023522
• Code 8182997
