Eaton
Potentiometer 100 KOHM
Part numberM22-R100KEAN / GTIN4015082294939HS code8533.40
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

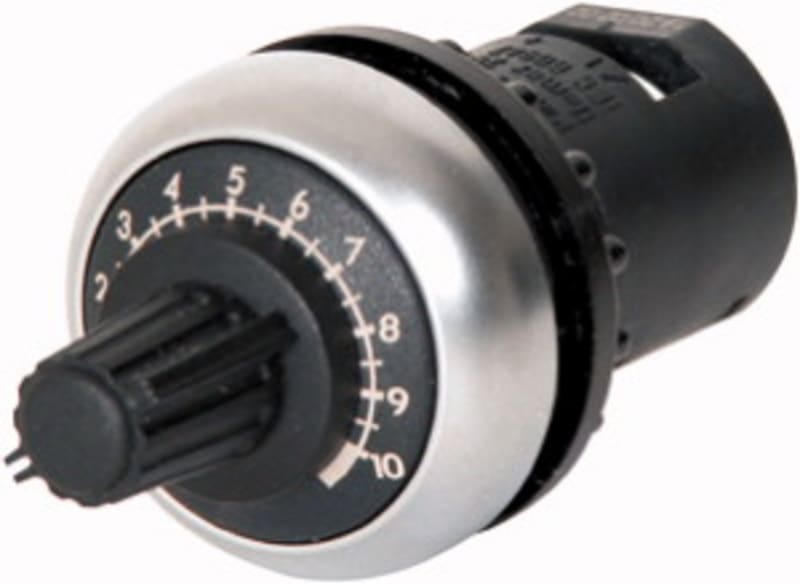

Eaton M22-R100K Potentiometer, 100k, front.
Technical Specifications
- Manufacturer part number (MPN)
- M22-R100K
- EAN / GTIN
- 4015082294939
- Sales unit
- pcs
- Eaton catalogue number
- 229493
- Depth
- 70 mm
- Height
- 29 mm
- Width
- 29 mm
- Weight
- 0.034 kg
- Compliances
- CE Marked
- Certifications
- IEC 60947-5; CSA Std. C22.2 No. 94-91; EN 60947-5; CSA Std. C22.2 No. 14-05; UL 508; VDE; CE; CSA File No.: 012528; VDE 0660; CSA Class No.: 3211-03; UL File No.: E29184; CSA-C22.2 No. 14-05; UL Category Control No.: NKCR; UL; IEC/EN 60947-5; IEC/EN 60947; CSA-C22.2 No. 94-91; CSA
- Bezel color
- Titanium
- Design
- Classical
- Electric connection type
- Screw connection
- Fitted with
- 3 individual screw terminals
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- No
- Static heat dissipation, non-current-dependent Pvs
- 0.5 W
- Power consumption
- 0.5 W
- Rated insulation voltage (Ui)
- 250 V
- Rated power
- 0.5 VA
- Resistance
- 100000 Ohm
- Degree of protection
- IP66; NEMA Other
- Lifespan, mechanical
- 25,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Overvoltage category
- III
- Pollution degree
- 3
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Type
- Potentiometer
- Terminal capacity (solid)
- 0.5 - 1.5 mm²
- Terminal capacity (stranded)
- 0.5 - 1.5 mm²
- Tightening torque
- 0.5 Nm, Screw terminals
- Hole diameter
- 22 mm
- Type of electric connection
- Screw connection
- Number of revolutions
- 1
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 8533.40
Cross References
- EAN 4015082294939
- SAP 1000033058
- Code 8510130
Product Documentation
Document preview: POTENSIOMETER 100 KOHM (M22-R100K) — Specification Data Sheet (OEM)
More from Eaton
Eaton
EMC Safety Switch IP65 (P1-25/I2H/MBS/SVB)
Eaton
Eaton FAZT-D32/1 Miniature Circuit Breaker — 1P, Type D, 32 A, 25 kA
Eaton
Flange Just steel xE B1000
BP-FLP-1000-VS
Eaton
Eaton FAZT-B13/2 Miniature Circuit Breaker — 2P, Type B, 13 A, 25 kA
Eaton

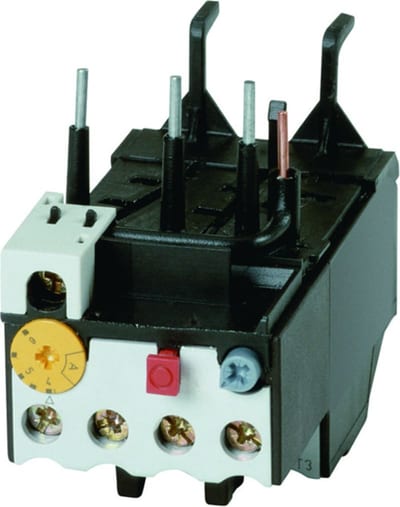

Motor Protection Relay 24-32A
ZB32-32
Eaton

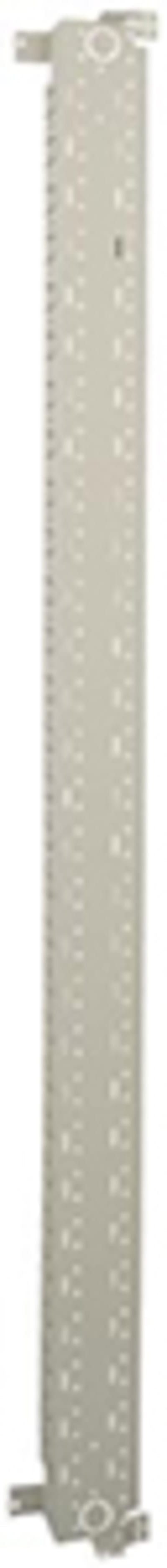

Cable Trunking xE Light (XLACC16)
Eaton
Connection terminal (93PS-8(40)-20-0-6)
Eaton

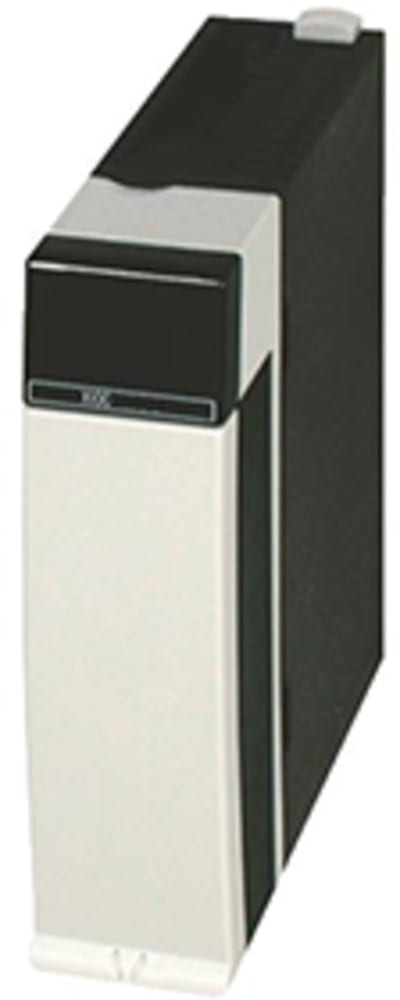

XIOC-4T-PT expansion module 4 Pt100/Pt1000 inputs
