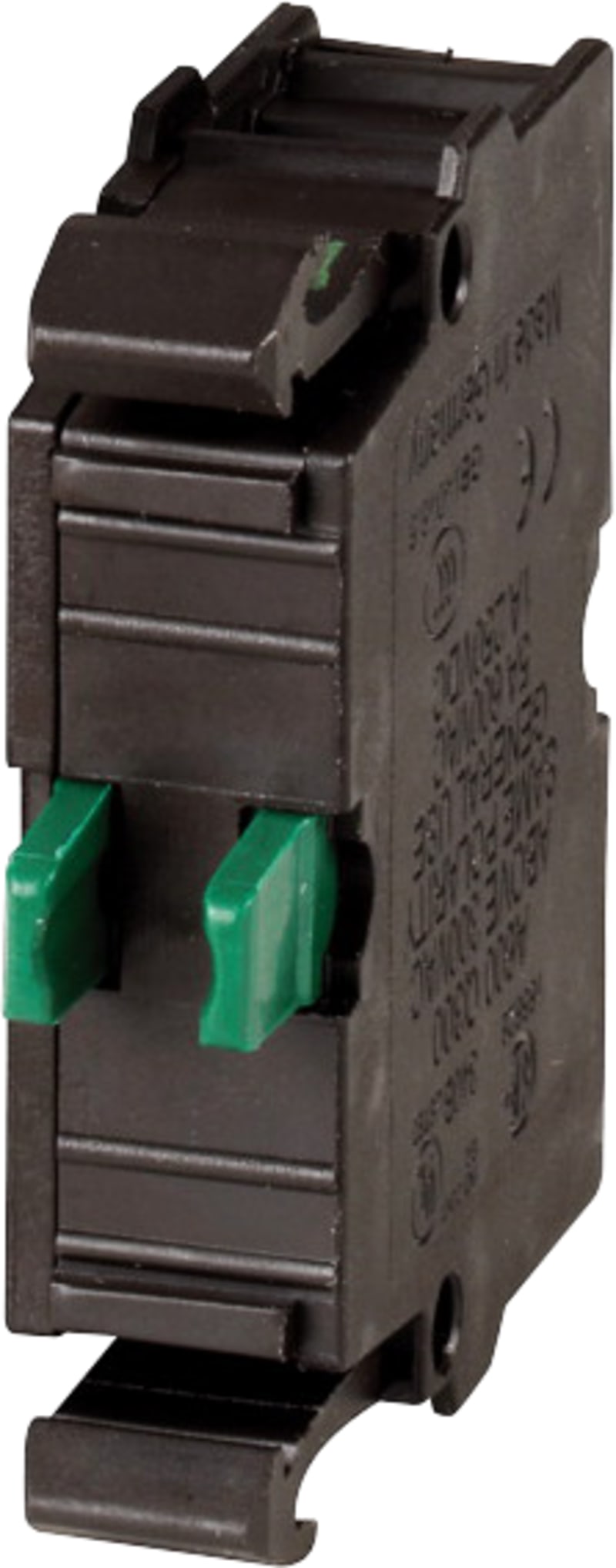

Eaton M22-CK10 Contact Element 1 NO, Spring-Cage Terminal

Eaton M22-CK10 is a single-normally-open contact element with spring-cage terminal connection for the M22 push-button, selector-switch and pilot-light range. It carries 6 A rated operational current (AC-15 at 115 V) with 500 V rated insulation voltage and 4 A conventional thermal current, mounts behind an M22 front element and is CE/UL/CSA/IEC certified. Dimensions 32 x 10 x 38 mm (WxHxD), pack of 20 (Eaton catalogue number 216384).

Manufacturer part number (MPN)

M22-CK10

EAN / GTIN

4015082163846

Sales unit

pcs

Package quantity

20 pcs

Eaton catalogue number

216384

Depth

38 mm

Height

10 mm

Width

32 mm

Weight

0.01 kg

Compliances

CE Marked

Certifications

UL 508; CSA Std. C22.2 No. 94-91; CSA Std. C22.2 No. 14-05; EN 60947-5; IEC 60947-5; CE; CSA File No.: 012528; CSA-C22.2 No. 94-91; IEC 60947-5-1; UL; UL Category Control No.: NKCR; CSA Class No.: 3211-03; UL/CSA; UL File No.: E29184; CSA; IEC; IEC/EN 60947-5; CSA-C22.2 No. 14-05

Actuating force - max

5 N

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

No

Control circuit reliability

1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA); 1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA)

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

1

Heat dissipation per pole, current-dependent Pvid

0.11 W

Rated operational current for specified heat dissipation (In)

6 A

Conventional thermal current Ith of auxiliary contacts (1-pole, open)

4 A

Rated insulation voltage (Ui)

500 V

Rated operational current (Ie) at AC-15, 115 V

6 A

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

6 A

Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V

4 A

Rated operational current (Ie) at AC-15, 500 V

2 A

Rated operational current (Ie) at DC-13, 110 V

0.6 A

Rated operational current (Ie) at DC-13, 220 V, 230 V

0.3 A

Rated operational current (Ie) at DC-13, 24 V

3 A

Rated operational current (Ie) at DC-13, 42 V

1.7 A

Rated operational current (Ie) at DC-13, 500 V

0.1 A

Rated operational current (Ie) at DC-13, 60 V

1.2 A

Rated operational voltage (Ue) at AC - max

500 V

Rated operational voltage (Ue) at DC - max

220 V

Color

Green

Electric connection type

Spring clamp connection

Degree of protection

IP20

Lifespan, electrical

1,600,000 Operations (at 230 V, 0.5 A); 700,000 Operations (at 230 V, AC-15, 3 A); 1,200,000 Operations (at 12 V, DC-13, 2.8 A); 1,000,000 Operations (at 230 V, AC-15, 1 A)

Lifespan, mechanical

5,000,000 Operations

Model

Top mounting and integrable

Operating frequency

3600 Operations/h

Overvoltage category

III

Pollution degree

3

Product category

Accessories

Rated impulse withstand voltage (Uimp)

6000 V AC

Type

Auxiliary contact

Connection type

Front fixing; Single contact; Cage Clamp

Mounting method

Front fastening

Short-circuit protection

PKZM0-10/FAZ-B6/1, Contacts, Max. short-circuit protective device, Fuseless

Short-circuit protection rating

Max. 10 A gG/gL, Fuse, Contacts; Max. 10 A gG/gL, Fuse, Auxiliary contacts

Terminal capacity (flexible with ferrule)

0.5 - 1.5 mm²

Terminal capacity (solid)

0.75 - 2.5 mm²

Terminal capacity (solid/flexible with ferrule)

1 x (0,75 - 2,5) mm²; 2 x (0,5 - 0,75) mm²

Terminal capacity (stranded)

0.5 - 2.5 mm²

Country of origin

Germany

HS Code

8538.90
