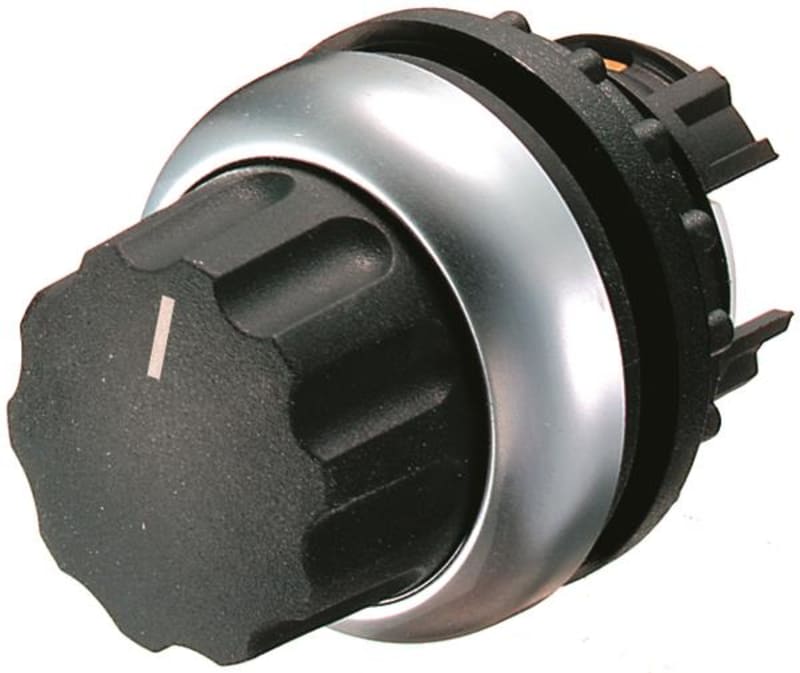

Eaton M22-WR4 Rotary Knob Round 4 Positions + 0 Selector Switch IP66
Part numberM22-WR4EAN / GTIN4015082794194HS code8538.90
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-WR4 push-button x4 rotary knob/switch for 4 positions, IP66.
Technical Specifications
- Manufacturer part number (MPN)
- M22-WR4
- EAN / GTIN
- 4015082794194
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 279419
- Depth
- 45 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.016 kg
- Compliances
- CE Marked
- Certifications
- EN 60947-5; CSA Std. C22.2 No. 14-05; UL 508; IEC 60947-5; CSA Std. C22.2 No. 94-91; VDE; CSA Class No.: 3211-03; IEC/EN 60947-5; CE; CSA-C22.2 No. 94-91; CSA-C22.2 No. 14-05; VDE 0660; CSA File No.: 012528; UL; UL Category Control No.: NKCR; UL File No.: E29184; CSA; IEC/EN 60947
- Actuator color
- Black
- Actuator function
- Maintained; Switching function latching
- Actuator type
- Turn button
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- With rotary head
- Fitted with
- Front ring
- Indicator color
- Other
- Inscription
- Inscribed
- Lens type
- Round
- Number of switch positions
- 2
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Accessories
- Rotary head
- Degree of protection
- NEMA 4X, 13
- Degree of protection (front side)
- IP66
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 2000 Operations/h
- Operating torque
- 0.3 Nm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Size
- Front diameter: 29.7 mm
- Type
- Selector switch actuator
- Used with
- M22‐A4 fixing adapter
- Hole diameter
- 22.5 mm
- Suitable for lighting
- No
- Spring-return
- No
- Degree of protection (IP), front side
- IP66
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Type of control element
- Turn button
- Colour control element
- Black
- Switching function latching
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082794194
- SAP 1000043203
- Code 8775803
Product Documentation
Document preview: VRIKNAPP ROUND 4 POS. + 0 (M22-WR4) — Specification Data Sheet (OEM)
