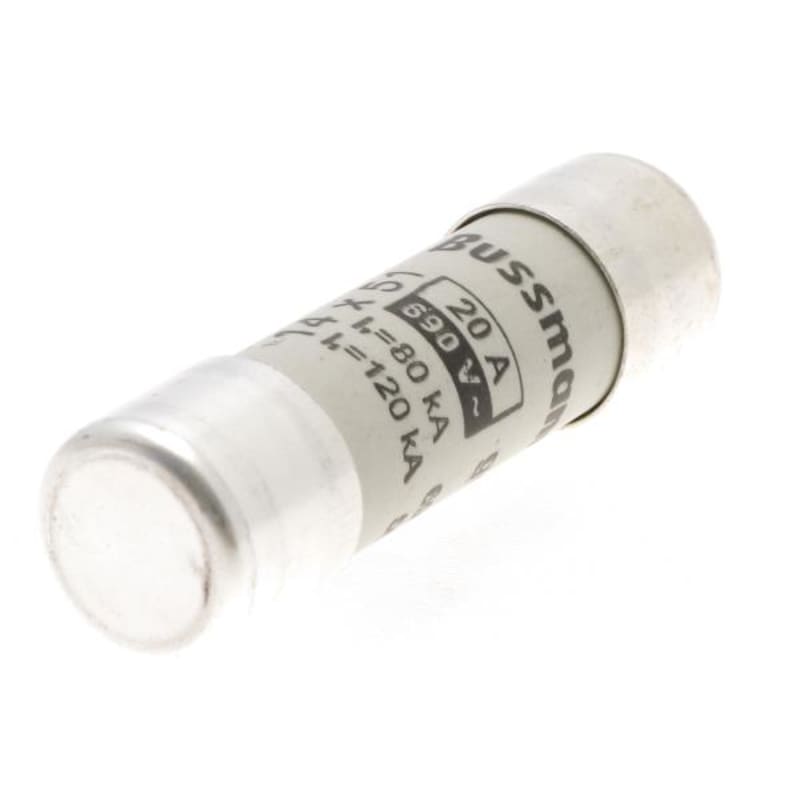

Cylindrical Fuse 14X51MM, 20A (C14G20)
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton C14G20 Bussmann series cylindrical fuse link, 14 x 51 mm ceramic ferrule body, 20 A, utilisation category gG (general purpose, full-range): it protects cables and circuits against both overload and short-circuit current. Fits a standard 14 x 51 mm cylindrical fuse holder and conforms to IEC 60269.
Technical Specifications
- Manufacturer part number (MPN)
- C14G20
- EAN / GTIN
- 5027590493901
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Rated current
- 20 A
- Dimensions
- 14x51 mm
- Breaking capacity at nominal voltage, AC
- 120 kA
- Rated voltage AC
- 690 V
- Rated operating frequency
- 45–62 Hz
- Model
- Ceramic fuse
- Rated voltage
- 690 V
- Size
- 14x51 mm
- Voltage type
- AC
- Utilization category according to IEC 60269
- gG
- Nominal current
- 20 A
- With striker
- No
- Breaking capacity
- 80 kA
- Power loss at rated current
- 2.5 W
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8536.10
Cross References
- EAN 5027590493901
- SAP 1200393026
- Code 82417182
Product Documentation
More from Eaton
Eaton
Eaton DILM7-32 Contactor 380/400 V 3 kW 3 NO 2 NC 230 V 50 Hz 240 V 60 Hz AC
DILM7-32(230V50HZ,240V60HZ)
Eaton

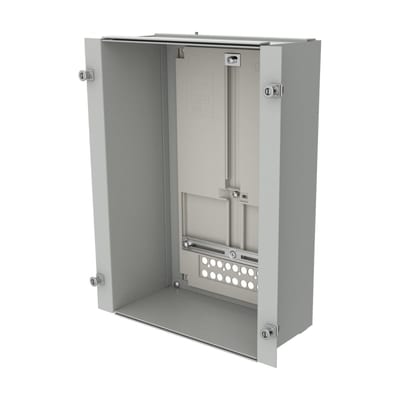

Meter Panel 1 meter H400 B400 xE Basic (2457667)
Eaton

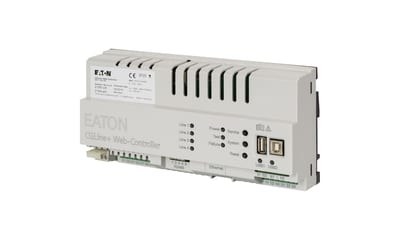

CGLine+ Web-Controller (CGLine+ Web-Controller Anschlussbox)
Eaton

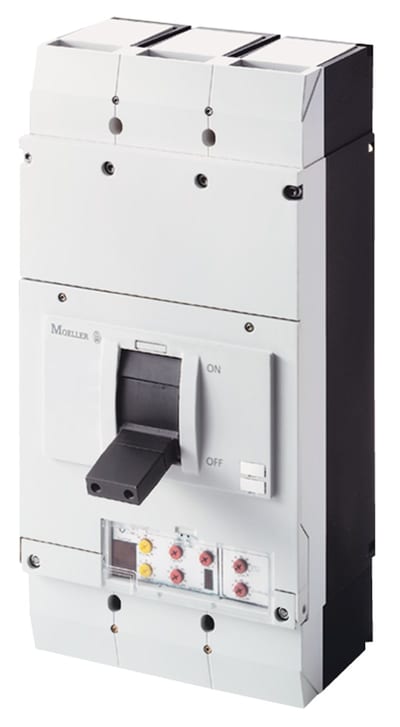

Eaton NZMN4-VE1250 Molded-Case Circuit Breaker 3-Pole 1250A 50KA
Eaton

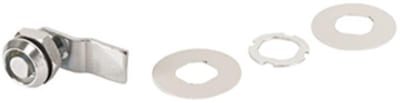

Lock cylinder xE (BPZ-LOCK/DHMETAL)
Eaton

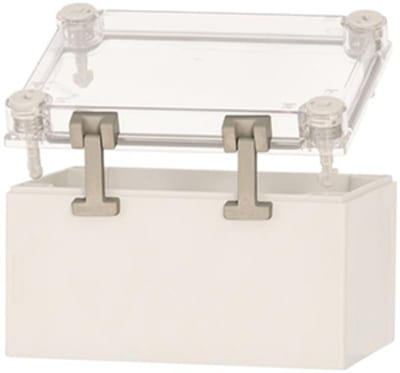

Cover hengsle (DSCH-CI)
Eaton

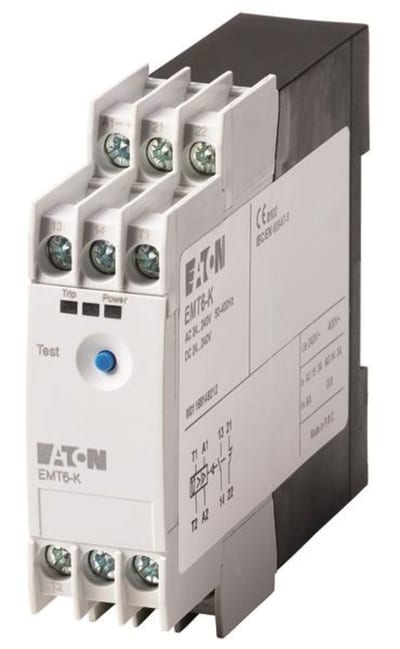

Thermistor Relay EMT6-K
Eaton

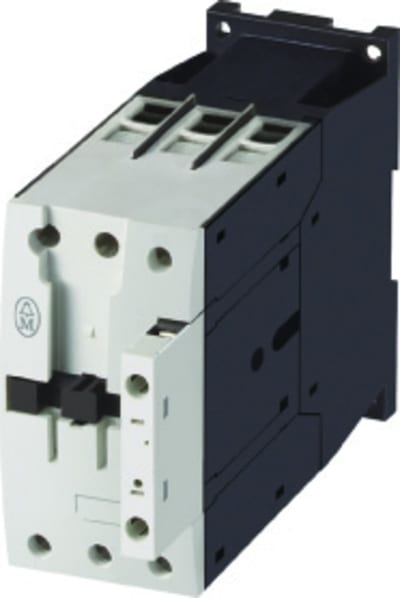

CONTACTOR,40A AC-3, DC Coil (DILM40(RDC24))
