Eaton

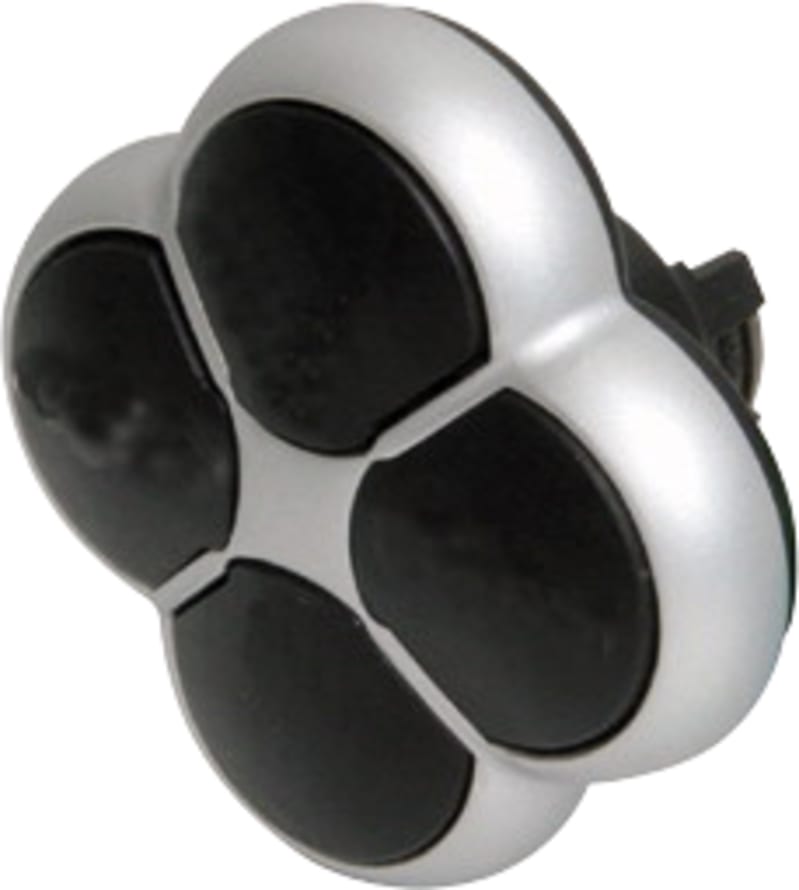

Push-Button w/4 Buttons Black Impulse
Part numberM22-D4-SEAN / GTIN4015082794118HS code8538.90
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-D4-S Push-button x4, rotary knob/rotary switch for 4 positions, IP66.
Technical Specifications
- Manufacturer part number (MPN)
- M22-D4-S
- EAN / GTIN
- 4015082794118
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 279411
- Depth
- 55 mm
- Height
- 32 mm
- Width
- 55 mm
- Weight
- 0.022 kg
- Compliances
- CE Marked
- Certifications
- UL 508; EN 60947-5; IEC 60947-5; CSA Std. C22.2 No. 94-91; CSA Std. C22.2 No. 14-05; VDE; UL File No.: E29184; CSA Class No.: 3211-03; CSA-C22.2 No. 14-05; CSA; UL; UL Category Control No.: NKCR; IEC/EN 60947-5; CE; CSA File No.: 012528; CSA-C22.2 No. 94-91; IEC/EN 60947; VDE 0660; DNV; GL; LR
- Catalog Notes
- 4-fold
- Actuating force
- 5 N
- Actuator color
- Black
- Actuator function
- Spring-return; Momentary
- Bezel color
- Chrome
- Bezel material
- Plastic
- Design
- Non-Flush; Classical
- Fitted with
- Front ring
- Functions
- Opposing pushbuttons not mechanically interlocked
- Inscription
- No inscription
- Lens type
- Round
- Number of command positions
- 4
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- Yes; With SWD-RMQ connections
- Degree of protection
- NEMA 3R; NEMA 12; NEMA 4X; NEMA 13; IP66
- Degree of protection (front side)
- NEMA 4X; IP66
- Lifespan, mechanical
- 200,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 3600 Operations/h
- Product category
- RMQ-Titan
- Size
- Front dimensions: 55 x 55 mm
- Type
- Pushbutton
- Hole diameter
- 22.5 mm
- Colour button
- Black
- Suitable for lighting
- No
- Spring-return
- Yes
- Labelled
- No
- Type of button
- Flat
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP66
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082794118
- SAP 1000084862
- Code 8872489
Product Documentation
Document preview: PUSH-BUTTON M/4 BUTTONS BLACK IMP (M22-D4-S) — Specification Data Sheet (OEM)
