Eaton

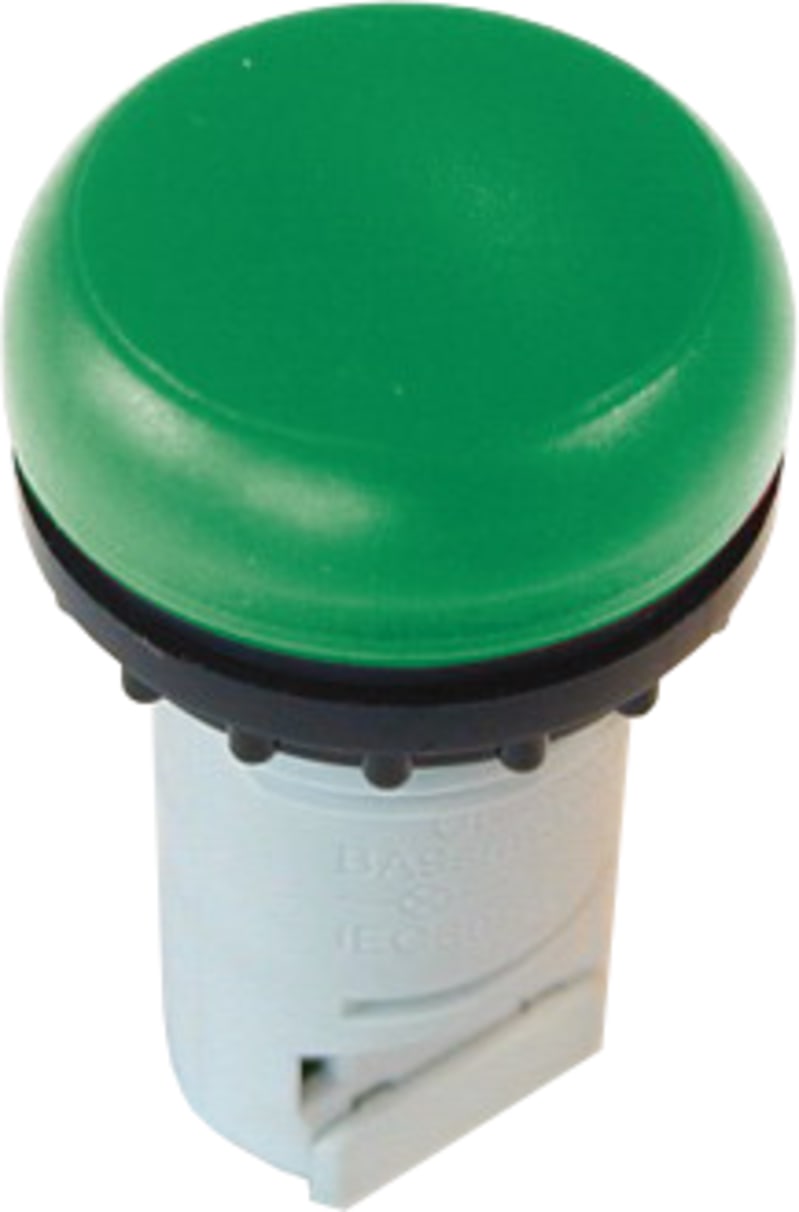

SIGNALL.COMPACT Green FLATBA9S
Part numberM22-LC-GEAN / GTIN4015082169091HS code8531.80
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-LC-G Compact indicator lamp with plinth BA 9s, flat, IP67, IP69K.
Technical Specifications
- Manufacturer part number (MPN)
- M22-LC-G
- EAN / GTIN
- 4015082169091
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 216909
- Depth
- 53 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.017 kg
- Certifications
- IEC/EN 60947; UL; UL 508; CSA File No.: 012528; UL Category Control No.: NKCR; CSA; VDE 0660; CE; IEC/EN 60947-5; CSA Class No.: 3211-03; CSA-C22.2 No. 14-05; UL File No.: E29184
- Catalog Notes
- Without light elements
- Bezel color
- Chrome
- Bezel material
- Other
- Design
- Flush
- Fitted with
- BA 9s lamp socket
- Lens color
- Green
- Lens type
- Flat; Round
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- No
- Rated insulation voltage (Ui)
- 250 V
- Degree of protection
- NEMA 4X, 13
- Degree of protection (front side)
- IP67/IP69K
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Size
- Front diameter: 29.7 mm
- Type
- Indicator lights
- Terminal capacity
- 0.5 - 1.5 mm², stranded; 0.5 - 1.5 mm², solid
- Hole diameter
- 22.5 mm
- Colour lens
- Green
- Degree of protection (IP), front side
- IP67/IP69K
- Material front ring
- Plastic
- With front ring
- No
- Construction type lens
- Round
- Suitable for number of built-in signal lights
- 1
- Type of lens
- Flat
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015082169091
- SAP 1000010761
- Code 8100683
Product Documentation
Document preview: SIGNALL.KOMPAKT GREEN FLATBA9S (M22-LC-G) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton NZM4-XKR
Eaton
EMC, DC1, FS1, 1 ~ 250 V, 14A
DX-EMC12-014-FS1
Eaton
K.el.Darw F.m without Led 1NO/NC
M22-SWD-K11
Eaton
Eaton NZMH2-PMX160-SVE Circuit breaker
Eaton
Direct-on-line starter,MSC-D-12-M14(230V50HZ)-PI (199606)
Eaton

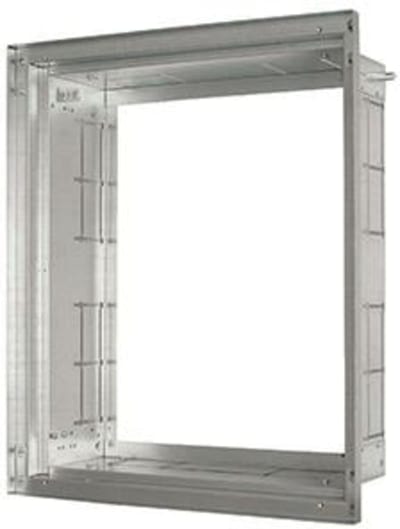

Wall box H×W×D=2060X1200X180MM
BPZ-WB3S-1200/20/1
Eaton

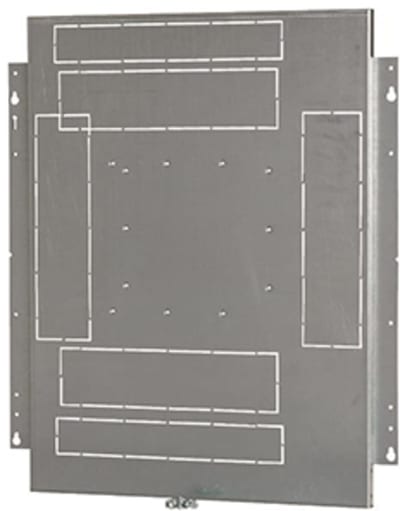

Mounting plate NZM4 W=600mm
BPZ-MPL-NZM4-600-MX-XVTL
Eaton

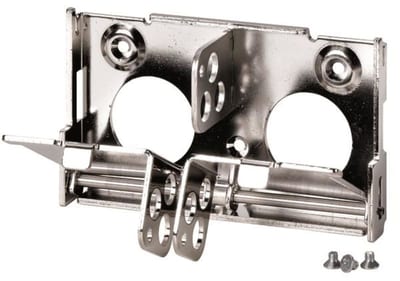

Eaton IZMX-PLPC40-M-1
