K.el.Darw F.m without Led 1NO/NC
Pricing
Request a quote
We reply within 24 hours
Overview

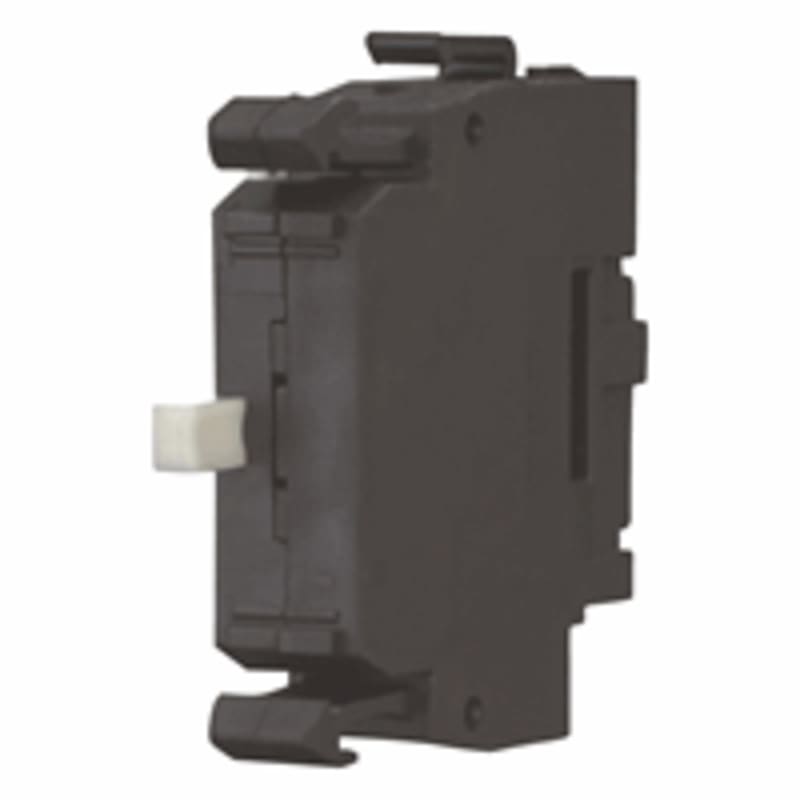

Eaton K.el.Darw F.m without Led 1NO/NC (part number M22-SWD-K11) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 20 pcs; Eaton catalogue number: 115964; Depth: 40 mm; Height: 42 mm; Width: 10 mm.
Technical Specifications
- Manufacturer part number (MPN)
- M22-SWD-K11
- EAN / GTIN
- 4015081157044
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Eaton catalogue number
- 115964
- Depth
- 40 mm
- Height
- 42 mm
- Width
- 10 mm
- Weight
- 0.009 kg
- Certifications
- CSA Class No.: 3211-07; IEC/EN 61131-2; EN 50178; UL; CSA File No.: 2324643; CSA; UL Category Control No.: NKCR; UL File No.: E29184; BV; LRS
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -30 °C
- Ambient storage temperature - min
- -40 °C
- Environmental conditions
- Condensation: prevent with appropriate measures
- Connection to SmartWire-DT
- Yes
- Number of contacts (change-over contacts)
- 1
- Number of contacts (normally closed contacts)
- 1
- Number of contacts (normally open contacts)
- 1
- Static heat dissipation, non-current-dependent Pvs
- 0.3 W
- Electric connection type
- Flat plug-in connection
- Functions
- For combination with RMQ-Titan operating elements M22-...; Diagnosis function
- Degree of protection
- IP20
- Model
- Top mounting
- Overvoltage category
- Not applicable
- Pollution degree
- 2
- Product category
- SmartWire-DT RMQ connections
- LED indicator
- Status indication of SmartWire-DT network: Green LED; Status indication of Switching state: Yellow LED
- Connection type
- Front fixing; SWD: Plug, 8-pole
- Mounting method
- Front fastening
- Mounting position
- As required
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015081157044
- SAP 1000288922
- Code 846986
Product Documentation
