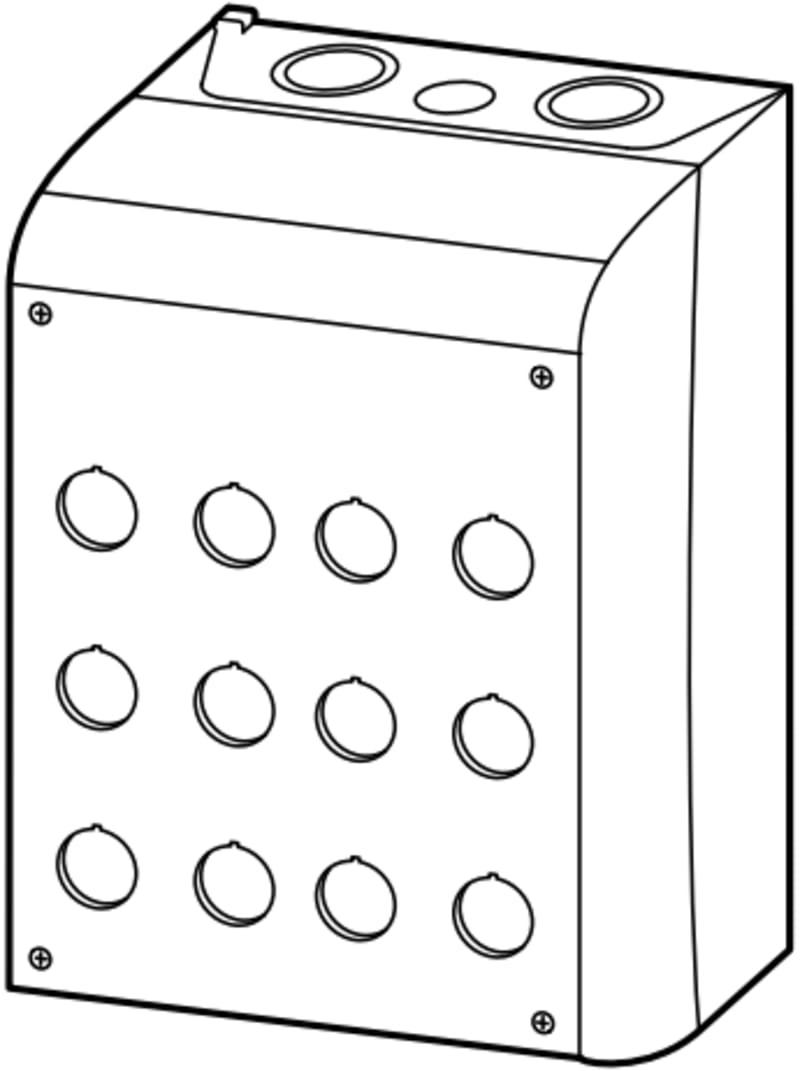

BOX 12 HOLE (M22-I12)

Eaton M22-I12 Push-Button Stations for 12 hole.

Manufacturer part number (MPN)

M22-I12

EAN / GTIN

4015082226886

Sales unit

pcs

Eaton catalogue number

222688

Depth

240 mm

Height

125 mm

Width

160 mm

Weight

1.301 kg

Certifications

CSA File No.: 012528; IEC/EN 60947-5; UL; CSA Class No.: 3211-03; UL 508; UL File No.: E29184; CE; CSA-C22.2 No. 14-05; UL Category Control No.: NKCR; CSA; CSA-C22.2 No. 94-91

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Connection to SmartWire-DT

No

Enclosure color

Gray

Enclosure material

Plastic

Enclosure type

Surface mounting housing

Fitted with

High-grade steel screws

Knockouts

2 x M32/20 (cable entry knockouts at the base); 2 x M20 (cable entry knockouts at the base); 4 x M32/25 (cable entry knockouts at the side)

Number of command positions

12

Number of locations

12

RAL-number

7035

Degree of protection

NEMA 3R; IP66

Opening diameter

22.5 mm

Diameter openings

22 mm

Colour housing cover

Grey

Housing material

Plastic

Construction type housing

Surface mounted housing

Country of origin

Germany

HS Code

8538.10

• EAN 4015082226886
• SAP 1000010308
• Code 875556
