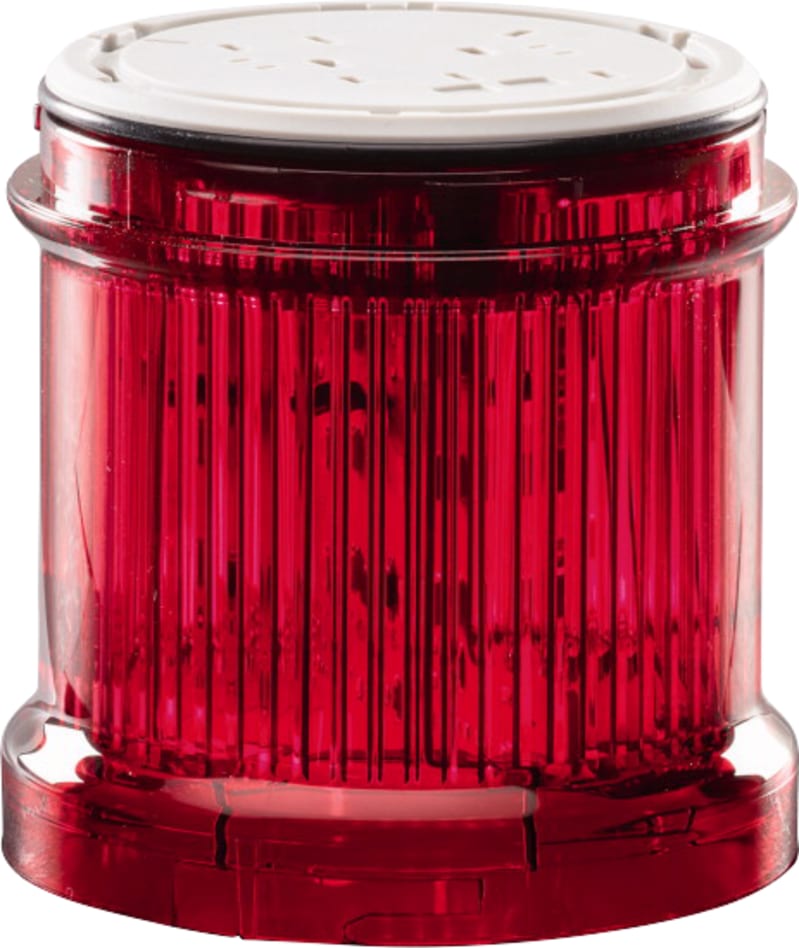

LED Steady light, Red, 24V, HP
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton LED Steady light, Red, 24V, HP (part number SL7-L24-R-HP) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 171429; Depth: 73 mm; Height: 73 mm; Width: 73 mm; Weight: 0.088 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL7-L24-R-HP
- EAN / GTIN
- 4015081677610
- Sales unit
- pcs
- Eaton catalogue number
- 171429
- Depth
- 73 mm
- Height
- 73 mm
- Width
- 73 mm
- Weight
- 0.088 kg
- Certifications
- CE; UL Category Control No.: NKCR; CSA Class No.: NKCR7; UL 508; UL File No.: E29184; UL report applies to both US and Canada; Certified by UL for use in Canada; IEC/EN 60947-5-1; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; UL; IEC/EN 60529
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Leakage current
- 0.003 A
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage (Ue) at AC - max
- 26 V
- Rated operational voltage (Ue) at AC - min
- 18 V
- Rated operational voltage (Ue) at DC - max
- 30 V
- Rated operational voltage (Ue) at DC - min
- 18 V
- Color
- Red
- Enclosure color
- Black
- Functions
- Continuous light
- Light modules
- High Performance LED
- Number of modules
- Max. 5 (with standard base); Max. 10 (with base for mounting on both sides)
- Connection to SmartWire-DT
- No
- Current consumption
- 50 mA at 24 V AC/DC
- Degree of protection
- NEMA 13; IP66
- Lifespan, electrical
- 50,000 h
- Light type
- Continuous light
- Material
- Cap: Polycarbonate (PC); Enclosure: Polycarbonate (PC)
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Radiation angle
- 360 °
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- Mechanical, According to IEC/EN 60068-2-27; 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
- Type
- Continuous light module High-performance LED for maximum signaling effect
- Voltage type
- AC/DC
- Colour
- Red
- Outer diameter
- 73 mm
- Housing colour
- Black
- Lamp type
- LED
- Operating voltage AC 50 Hz
- 18–26 V
- Operating voltage AC 60 Hz
- 18–26 V
- Operating voltage DC
- 18–30 V
- Repetition frequency settable
- No
- Country of origin
- Austria
