Eaton

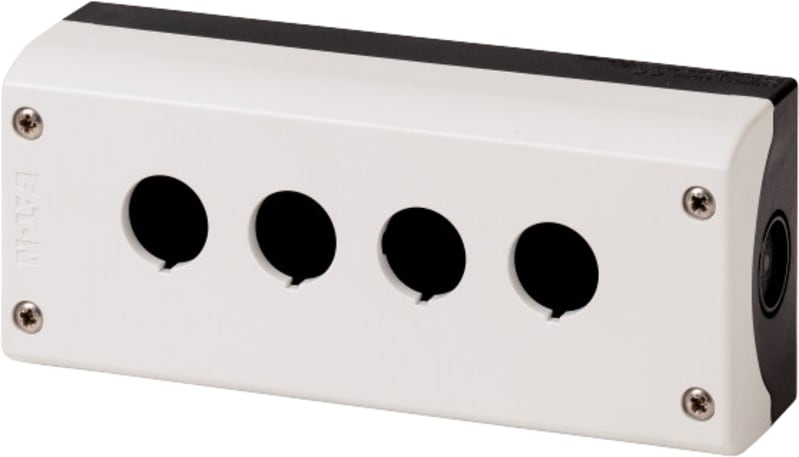

BOX 4 HOLE (M22-I4)
Part numberM22-I4EAN / GTIN4015082165390HS code8538.10
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton BOX 4 HOLE (M22-I4) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 216539; Depth: 80 mm; Height: 56 mm; Width: 186 mm; Weight: 0.279 kg.
Technical Specifications
- Manufacturer part number (MPN)
- M22-I4
- EAN / GTIN
- 4015082165390
- Sales unit
- pcs
- Eaton catalogue number
- 216539
- Depth
- 80 mm
- Height
- 56 mm
- Width
- 186 mm
- Weight
- 0.279 kg
- Certifications
- CSA-C22.2 No. 14-05; UL 508; CSA Class No.: 3211-03; CSA; CSA File No.: 012528; CSA-C22.2 No. 94-91; UL; UL Category Control No.: NKCR; CE; UL File No.: E29184; IEC/EN 60947-5
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Connection to SmartWire-DT
- No
- Enclosure color
- Gray
- Enclosure material
- Plastic
- Enclosure type
- Surface mounting housing
- Fitted with
- High-grade steel screws
- Knockouts
- 2 x M20/25 (cable entry knockout at the side, 1 x each side); 2 x M20 (cable entry knockouts at the top); 2 x M20 (cable entry knockouts at the rear)
- Number of command positions
- 4
- Number of locations
- 4
- RAL-number
- 7035
- Degree of protection
- NEMA 3R; IP67/IP69K
- Opening diameter
- 22.5 mm
- Diameter openings
- 22 mm
- Colour housing cover
- Grey
- Housing material
- Plastic
- Construction type housing
- Surface mounted housing
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015082165390
- SAP 1000005105
- Code 830274
Product Documentation
Document preview: BOX 4 HULL (M22-I4) — Specification Data Sheet (OEM)
