Contact element 1TO BOTTOM

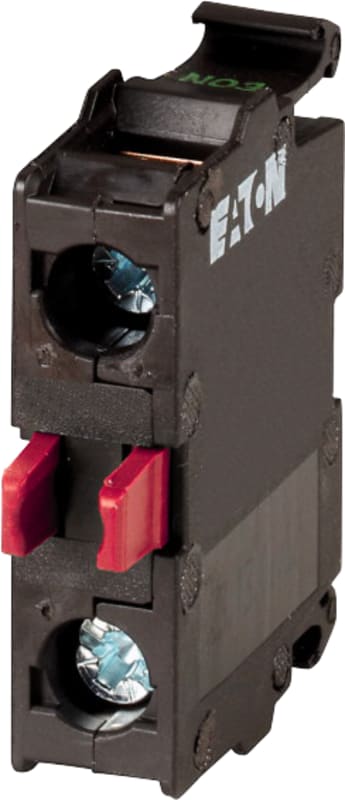

Eaton Contact element 1TO BOTTOM (part number M22-KC01) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 20 pcs; Eaton catalogue number: 216382; Depth: 38 mm; Height: 10 mm; Width: 32 mm.

Manufacturer part number (MPN)

M22-KC01

EAN / GTIN

4015082163822

Sales unit

pcs

Package quantity

20 pcs

Eaton catalogue number

216382

Depth

38 mm

Height

10 mm

Width

32 mm

Weight

0.01 kg

Compliances

CE Marked

Certifications

IEC 60947-5; CSA Std. C22.2 No. 14-05; EN 60947-5; CSA Std. C22.2 No. 94-91; UL 508; CSA Class No.: 3211-03; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE; CSA File No.: 012528; IEC/EN 60947-5; UL; UL File No.: E29184; UL Category Control No.: NKCR; CSA; IEC 60947-5-1

Catalog Notes

Contacts with safety function, by positive opening to IEC/EN 60947-5-1

Actuating force - max

5 N

Knob travel

5.7 mm

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection to SmartWire-DT

No

Control circuit reliability

1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA); 1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)

Force for positive opening - min

15 N

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

0

Heat dissipation per pole, current-dependent Pvid

0.11 W

Rated operational current for specified heat dissipation (In)

6 A

Rated insulation voltage (Ui)

500 V

Rated operational current (Ie) at AC-15, 115 V

6 A

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

6 A

Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V

4 A

Rated operational current (Ie) at AC-15, 500 V

2 A

Rated operational current (Ie) at DC-13, 110 V

0.6 A

Rated operational current (Ie) at DC-13, 220 V, 230 V

0.3 A

Rated operational current (Ie) at DC-13, 24 V

3 A

Rated operational current (Ie) at DC-13, 42 V

1.7 A

Rated operational current (Ie) at DC-13, 500 V

0.1 A

Rated operational current (Ie) at DC-13, 60 V

1.2 A

Electric connection type

Screw connection

Degree of protection

IP20

Lifespan, electrical

700,000 Operations (at 230 V, AC-15, 3 A); 1,600,000 Operations (at 230 V, 0.5 A); 1,000,000 Operations (at 230 V, AC-15, 1 A); 1,200,000 Operations (at 12 V, DC-13, 2.8 A)

Lifespan, mechanical

5,000,000 Operations

Model

Top mounting

Operating frequency

3600 Operations/h

Operating torque

0.8 Nm

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp)

6000 V AC

Connection type

Base fixing; Single contact

Mounting method

Base

Rated conditional short-circuit current (Iq)

1 kA

Short-circuit protection

PKZM0-10/FAZ-B6/1, Contacts, Max. short-circuit protective device, Fuseless

Short-circuit protection rating

Max. 10 A gG/gL, Fuse, Contacts

Terminal capacity (flexible with ferrule)

0.5 - 1.5 mm²

Terminal capacity (solid)

0.75 - 2.5 mm²

Terminal capacity (stranded)

0.5 - 2.5 mm²

Country of origin

Germany

HS Code

8536.50
