Eaton

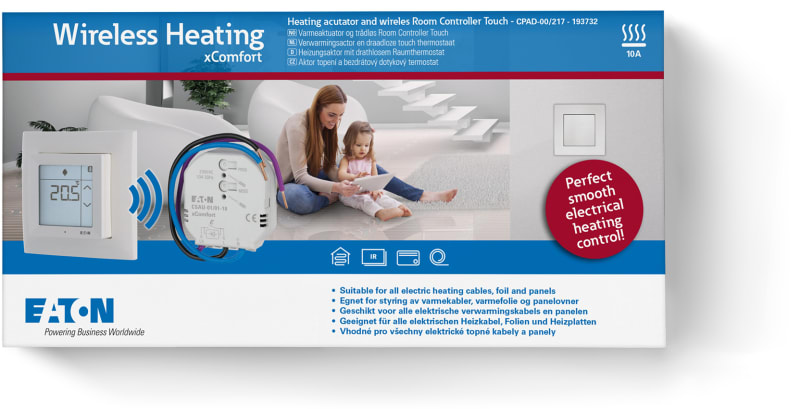

Wireless Heating (193732)
Part number193732EAN / GTIN9010238033566HS code8526.92
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Preprogrammert wireless-varmestyringspakke, also with predefinert ukesprogram.
Technical Specifications
- Manufacturer part number (MPN)
- 193732
- EAN / GTIN
- 9010238033566
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Product segment
- Smart home
- Eaton catalogue number
- 193732
- Depth
- 223 mm
- Height
- 31 mm
- Width
- 111 mm
- Weight
- 0.242 kg
- Compliances
- RoHS conform
- Used with
- 55 mm (Universal) pushbutton
- Features
- Radio frequent bidirectional
- Bus system operating type
- Radio frequent; xComfort
- Actuation function
- Heating, valves
- Bus system product type
- Package: actuator, controller
- Built-in installation box depth - min
- 18 mm
- Number of inputs (binary)
- 0
- Rated uninterrupted current (Iu) - max
- 10 A
- Fitted with
- Bus connection
- Switching voltage - max
- 253 V
- Switching voltage - min
- 196 V
- Width in number of modular spacings
- 3
- Application
- Humidity Temperature
- Power supply
- Battery; Mains
- Sensor type
- Humidity; Temperature
- Color
- Pure white
- Number of outputs
- 1
- Degree of protection
- IP20
- Output current - max
- 10 A
- Functions
- Correcting variable consistent
- Mounting method
- Flush mounting; Surface mounting; Flush mounted (plaster)
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- Yes
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- xComfort
- Radio frequency bidirectional
- Yes
- With bus connection
- Yes
- Bus module detachable
- No
- Correcting variable consistent
- Yes
- Correcting variable switching
- No
- Valve protection function
- No
- Manual switch
- No
- Max. switching current (resistive load)
- 10 A
- Max. output current
- 10 A
- Switching voltage
- 196–253 V
- Min. depth of built-in installation box
- 18 mm
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8526.92
Cross References
- EAN 9010238033566
- SAP 1200126819
- Code 81988364
Product Documentation
Document preview: Wireless Heating (193732) — Specification Data Sheet (OEM)
