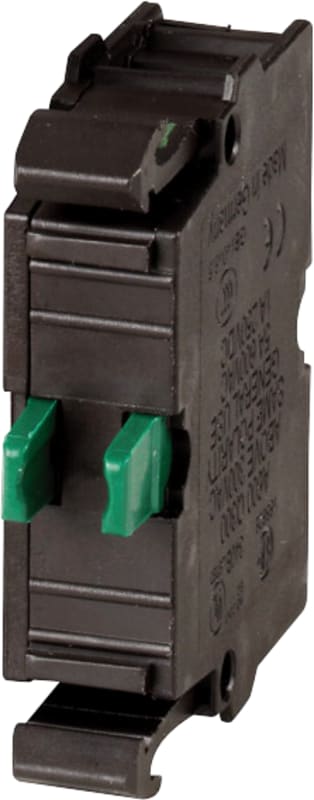

Contact element 1S FRONT

Eaton M22-K10 Contact Element 1S Front.

Manufacturer part number (MPN)

M22-K10

EAN / GTIN

4015082163761

Sales unit

pcs

Package quantity

20 pcs

Eaton catalogue number

216376

Depth

38 mm

Height

10 mm

Width

32 mm

Weight

0.01 kg

Compliances

CE Marked

Certifications

CSA Std. C22.2 No. 94-91; UL 508; IEC 60947-5; CSA Std. C22.2 No. 14-05; EN 60947-5; VDE; CSA File No.: 012528; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CSA; UL Category Control No.: NKCR; UL File No.: E29184; UL/CSA; CE; IEC/EN 60947-5; IEC; IEC 60947-5-1; CSA Class No.: 3211-03; UL

Actuating force - max

5 N

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

No

Control circuit reliability

1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA); 1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

1

Heat dissipation per pole, current-dependent Pvid

0.11 W

Rated operational current for specified heat dissipation (In)

6 A

Conventional thermal current Ith of auxiliary contacts (1-pole, open)

4 A

Rated insulation voltage (Ui)

500 V

Rated operational current (Ie)

1 A - 250 V DC; 5 A – 600 V AC

Rated operational current (Ie) at AC-15, 115 V

6 A

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

6 A

Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V

4 A

Rated operational current (Ie) at AC-15, 500 V

2 A

Rated operational current (Ie) at DC-13, 110 V

0.6 A

Rated operational current (Ie) at DC-13, 220 V, 230 V

0.3 A

Rated operational current (Ie) at DC-13, 24 V

3 A

Rated operational current (Ie) at DC-13, 42 V

1.7 A

Rated operational current (Ie) at DC-13, 500 V

0.1 A

Rated operational current (Ie) at DC-13, 60 V

1.2 A

Rated operational voltage (Ue) at AC - max

500 V

Rated operational voltage (Ue) at DC - max

220 V

Electric connection type

Screw connection

Degree of protection

IP20

Lifespan, electrical

1,000,000 Operations (at 230 V, AC-15, 1 A); 700,000 Operations (at 230 V, AC-15, 3 A); 1,200,000 Operations (at 12 V, DC-13, 2.8 A); 1,600,000 Operations (at 230 V, 0.5 A)

Lifespan, mechanical

5,000,000 Operations

Model

Top mounting and integrable

Operating frequency

3600 Operations/h

Operating torque

0.8 Nm

Overvoltage category

III

Pollution degree

3

Product category

Accessories

Rated impulse withstand voltage (Uimp)

6000 V AC

Type

Auxiliary contact

Connection type

Front fixing; Single contact

Mounting method

Front fastening

Short-circuit protection

PKZM0-10/FAZ-B6/1, Contacts, Max. short-circuit protective device, Fuseless

Short-circuit protection rating

Max. 10 A gG/gL, Fuse, Auxiliary contacts; Max. 10 A gG/gL, Fuse, Contacts

Terminal capacity (flexible with ferrule)

0.5 - 1.5 mm²

Terminal capacity (solid)

0.75 - 2.5 mm²

Terminal capacity (solid/flexible with ferrule)

1 x (0,75 - 2,5) mm²; 2 x (0,75 - 2,5) mm²

Terminal capacity (stranded)

0.5 - 2.5 mm²

Country of origin

Germany

HS Code

8538.90
