Eaton

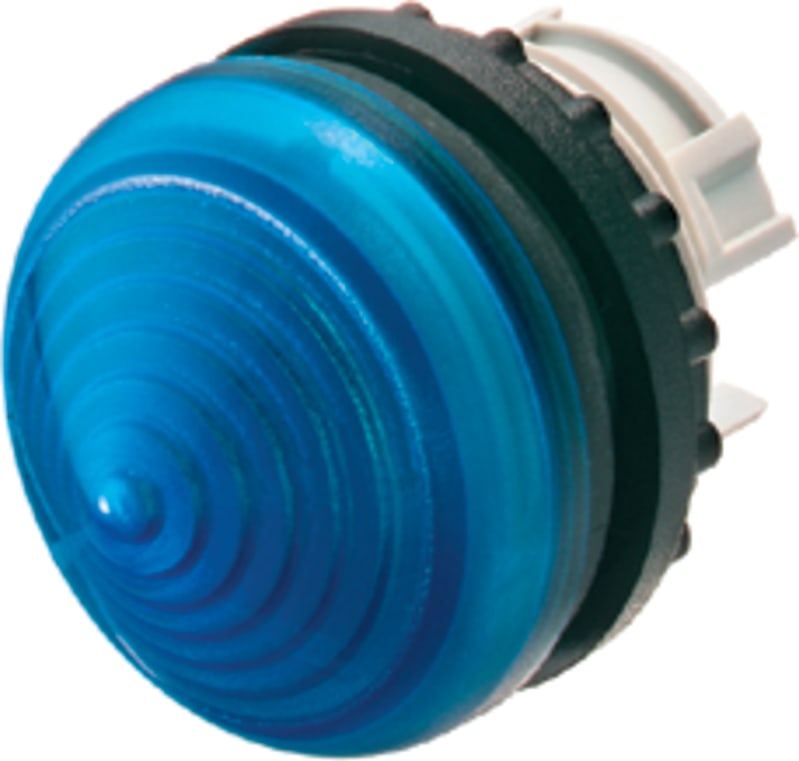

Lamp Front BLUE HIGH IP66
Part numberM22-LH-BEAN / GTIN4015082167820HS code8539.52
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-LH-B Indicator lamp for LED, high, IP67, IP69K.
Technical Specifications
- Manufacturer part number (MPN)
- M22-LH-B
- EAN / GTIN
- 4015082167820
- HS code
- 8539.52
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 216782
- Depth
- 30 mm
- Height
- 38 mm
- Width
- 30 mm
- Weight
- 0.007 kg
- Certifications
- CSA Class No.: 3211-03; CSA-C22.2 No. 94-91; CE; CSA; CSA-C22.2 No. 14-05; IEC/EN 60947-5; UL 508; VDE 0660; UL; CSA File No.: 012528; IEC/EN 60947; UL Category Control No.: NKCR; UL File No.: E29184
- Bezel color
- Chrome
- Bezel material
- Other
- Design
- Extended, conical
- Fitted with
- Front ring
- Lens color
- Blue
- Lens type
- Round; High
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- Yes; With SWD-RMQ connections
- Equipment heat dissipation, current-dependent Pvid
- 0 W
- Heat dissipation capacity Pdiss
- 0 W
- Heat dissipation per pole, current-dependent Pvid
- 0 W
- Rated operational current for specified heat dissipation (In)
- 0 A
- Static heat dissipation, non-current-dependent Pvs
- 0 W
- Rated insulation voltage (Ui)
- 250 V
- Degree of protection
- NEMA 4X, 13
- Degree of protection (front side)
- IP67/IP69K
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Size
- Front diameter: 29.7 mm
- Type
- Indicator lights
- Terminal capacity
- 0.5 - 1.5 mm², solid; 0.5 - 1.5 mm², stranded
Standards & Compliance
- HS Code
- 8539.52
Cross References
- EAN 4015082167820
- SAP 1000005579
- Code 8472663
Product Documentation
Document preview: Lamp Front BLUE HIGH IP66 (M22-LH-B) — Specification Data Sheet (OEM)
More from Eaton
Eaton
DG1 variable-frequency drive 230V: 45kW (DG1-32170FB-C54C)
Eaton
Eaton FAZ-K63/4 Miniature Circuit Breaker — 4P, Type K, 63 A, 15 kA
Eaton
variable-frequency drive, DM1-321D6NB-N20B-EM
3-5018-005A
Eaton
LED Strobe light, Orange, 24V (SL7-FL24-A)
Eaton
NH1 Switch-disconnector 3P250 B/E
XNH1-FCE-S250
Eaton
Flange Just steel white xE B800
BP-FLP-800-VS-W
Eaton
INST.AUT.2P-S-1A
FAZ-S1/2
Eaton

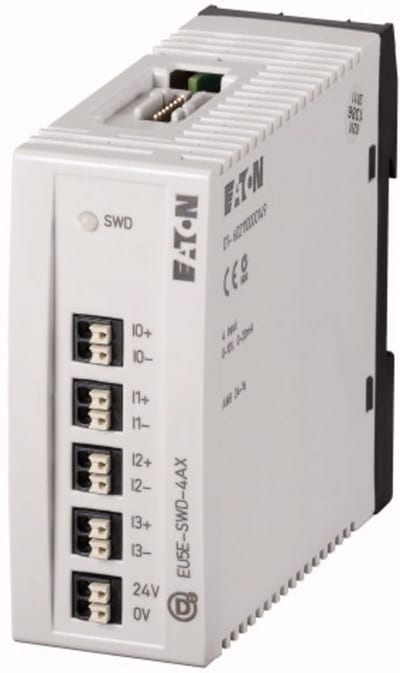

Eaton EU5E-SWD-4AX
