Eaton EU5E-SWD-4AX

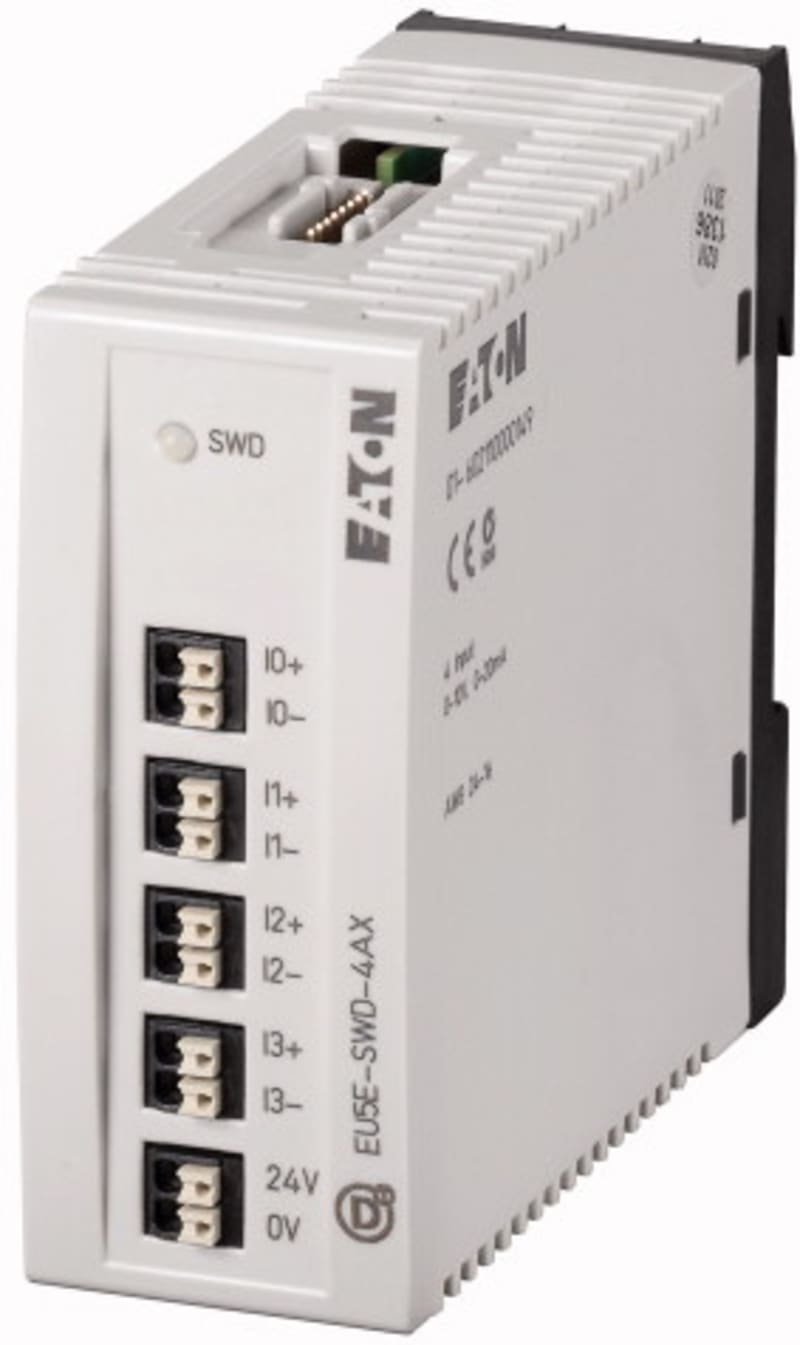

Eaton EU5E-SWD-4AX is listed under Electrical Components. Sales unit: pcs; Eaton catalogue number: 144062; Depth: 102 mm; Height: 90 mm; Width: 35 mm; Weight: 0.091 kg.

Manufacturer part number (MPN)

EU5E-SWD-4AX

EAN / GTIN

4015081405923

Sales unit

pcs

Eaton catalogue number

144062

Depth

102 mm

Height

90 mm

Width

35 mm

Weight

0.091 kg

Certifications

UL File No.: E29184; CSA Class No.: 3211-07; UL Category Control No.: NKCR; IEC/EN 61131-2; CSA File No.: 2324643; UL; CSA

Constant acceleration

1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations

Constant amplitude

3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations

Drop and topple

50 mm Drop height, Drop to IEC/EN 60068-2-31

Height of fall (IEC/EN 60068-2-32) - max

0.3 m

Mounting position

As required

Shock resistance

15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts

Air pressure

795 - 1080 hPa (operation)

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-3; Dry heat to IEC 60068-2-2

Environmental conditions

Condensation: prevent with appropriate measures

Operating temperature - max

55 °C

Operating temperature - min

-25 °C

Relative humidity

5 - 95 % (non-condensing, IEC/EN 60068-2-30)

Connection to SmartWire-DT

Yes

Connection type

Connection plug: external device plug SWD4-8SF2-5, SmartWire-DT; Plug, 8-pole, SmartWire-DT; Push in terminals, Supply and I/O sensor

Data transfer rate

Setting automatically; 250 kBit/s, SmartWire-DT

LED indicator

Status indication of SmartWire-DT network: Green LED

Protocol

Other bus systems

Station

SmartWire-DT slave, SmartWire-DT network

Static heat dissipation, non-current-dependent Pvs

0.6 W

Input current

0 - 20 mA (Analog inputs)

Input voltage

0 - 10 V (Analog inputs)

Power loss

0.6 W

Rated operational voltage

24 V DC (-15 %/+ 20 % - power supply)

Air discharge

8 kV, according to IEC 61131-2, level 3, ESD

Burst impulse

2 kV, Supply cable, according to IEC/EN 61131-2, Level 3; 2 kV, Signal cable, according to IEC/EN 61131-2, Level 3; 2 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3

Contact discharge

4 kV, according to IEC/EN 61131-2, Level 2, ESD

Electromagnetic fields

10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008); 3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008); 1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)

Radiated RFI

10 V (IEC/EN 61131-2:2008, Level 3)

Radio interference class

Class B (EN 55011)

Surge rating

1 kV, Surge I/O cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC; 1 kV, Surge power cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC

Electric connection type

Flat plug-in connection

Features

Input, voltage; Analog outputs configurable; Input, current; Fieldbus connection over separate bus coupler possible; Analog inputs configurable; Fieldbus connection over separate bus coupler possible

Functions

For connection of analog I/O signals; Adjustable parameter settings

Current consumption

22 mA, SmartWire-DT network

Degree of protection

IP20; NEMA 1

Mounting method

Wall mounting/direct mounting; Top-hat rail fixing (according to IEC/EN 60715, 35 mm); Rail mounting possible

Overvoltage category

II

Pollution degree

2

Product category

SmartWire-DT slave

Repetition accuracy

0.5 % (Analog inputs)

Residual ripple

≤ 5 % (input voltage)

Terminal capacity

0.25 - 1.5 mm² (24 - 16 AWG), flexible with ferrule, Terminal for I/O sensor; 0.2 - 1.5 mm² (AWG 24 - 16), solid, Terminal for I/O sensor

Type

Analog modules

Voltage type

DC

Conversions

20 ms, Analog inputs

Dielectric strength

30 kV/mm, according to IEC 60243-1

Input

Inputs, configurable (0 - 10 V, 0 - 20 mA); Current; Voltage

Input impedance

< 250 Ω

Number of inputs (analog)

4

Number of outputs (analog)

0

Resolution

12 Bit (Analog inputs)

Total error

± 1 %, Inputs

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Inputs for SmartWire-DT: yes

Protection against polarity reversal

Yes; Yes, for supply voltage (Siemens MPI optional)

Power consumption

0.6 W

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Input, resistor

No

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

No

Resolution of the analogue inputs

4 Bit

Output, current

No

Output, voltage

No

Output signal configurable

No

Number of analogue inputs

4

Analogue inputs configurable

Yes

Analogue outputs configurable

Yes

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

HS Code

8538.90
