Eaton

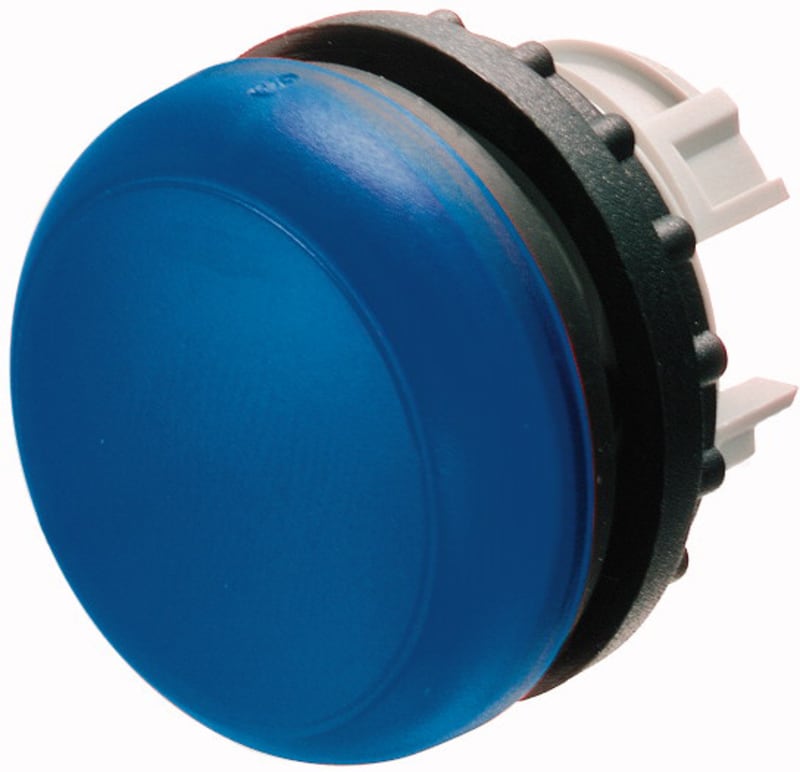

Lamp Front BLUE
Part numberM22-L-BEAN / GTIN4015082167752HS code8531.80
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-L-B Lamp Front Blue Flat IP66.
Technical Specifications
- Manufacturer part number (MPN)
- M22-L-B
- EAN / GTIN
- 4015082167752
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 216775
- Depth
- 30 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.007 kg
- Certifications
- CE; CSA-C22.2 No. 14-05; UL File No.: E29184; CSA Class No.: 3211-03; CSA-C22.2 No. 94-91; CSA; IEC/EN 60947; VDE 0660; UL; UL Category Control No.: NKCR; CSA File No.: 012528; IEC/EN 60947-5; UL 508
- Bezel color
- Chrome
- Bezel material
- Other
- Design
- Flush
- Fitted with
- Front ring
- Lens color
- Blue
- Lens type
- Flat; Round
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- Yes; With SWD-RMQ connections
- Rated insulation voltage (Ui)
- 250 V
- Degree of protection
- NEMA 4X, 13
- Degree of protection (front side)
- IP67/IP69K
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Size
- Front diameter: 29.7 mm
- Type
- Indicator lights
- Terminal capacity
- 0.5 - 1.5 mm², solid; 0.5 - 1.5 mm², stranded
- Hole diameter
- 22 mm
- Colour lens
- Blue
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP67/IP69K
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Suitable for number of built-in signal lights
- 1
- Type of lens
- Flat
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015082167752
- SAP 1000032450
- Code 8251116
Product Documentation
Document preview: LAMP FRONT BLUE — Specification Data Sheet (OEM)
