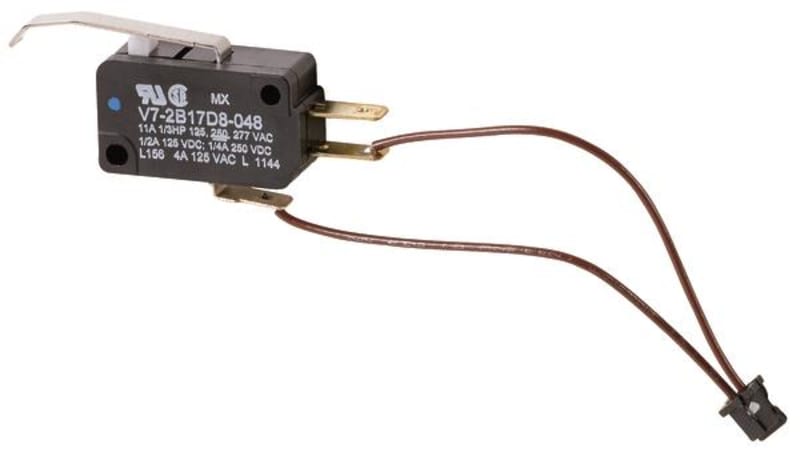

Eaton IZMX-LCS-SR-1

Eaton IZMX-LCS-SR-1 is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 184106; Depth: 100 mm; Height: 100 mm; Width: 100 mm; Weight: 0.023 kg.

Manufacturer part number (MPN)

IZMX-LCS-SR-1

EAN / GTIN

4015081783137

Sales unit

pcs

Eaton catalogue number

184106

Depth

100 mm

Height

100 mm

Width

100 mm

Weight

0.023 kg

Compliances

RoHS conform

Accessory/spare part type

Auxiliary contact

Model

Integrable

Special features

1 changeover contact Automatic closing after readiness for operation. Can only be used together with a closing release Can be used with IZMX16(40)-SR… closing release for automatic closing upon availability

Type

Accessory

Used with

INX16..., INX40...; IZMX16..., IZMX40...

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Electric connection type

Flat plug-in connection

Rated breaking capacity (inductive load)

10 A (250 V AC); 0.25 A (250 V DC); 0.5 A (125 V DC)

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

10 A

Lamp holder

None

Mounting Method

Other

Number of contacts (change-over contacts)

1

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

0

Number of switches (fault signal)

0

Country of origin

Mexico

HS Code

8538.90

• EAN 4015081783137
• SAP 1200283530
• Code 82247806
