Eaton

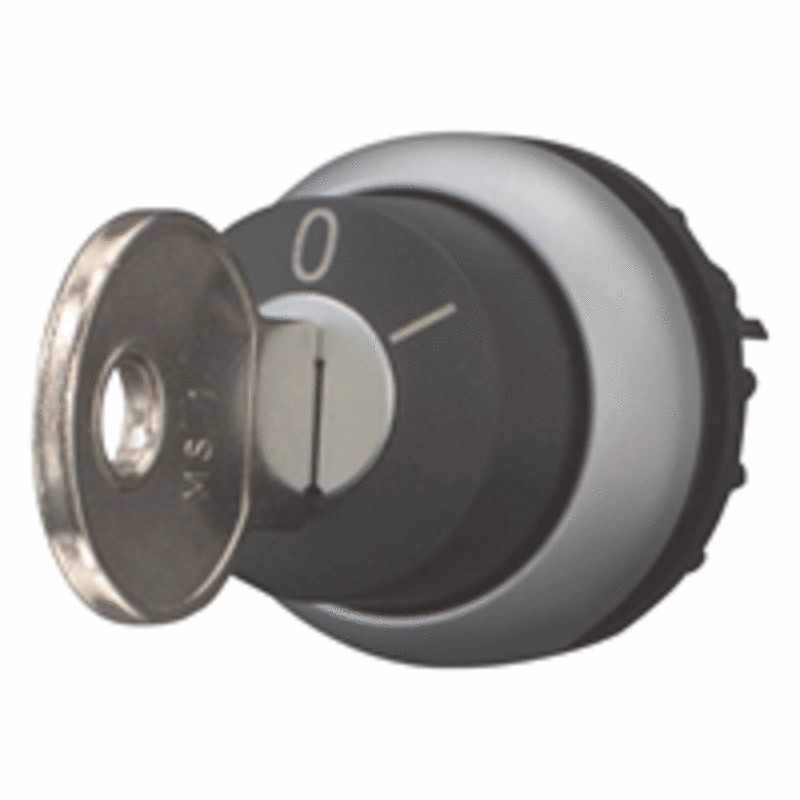

KEY Switch 0-1 Impulse
Part numberM22-WSEAN / GTIN4015082168810HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-WS Key switch 0-1 Impulse.
Technical Specifications
- Manufacturer part number (MPN)
- M22-WS
- EAN / GTIN
- 4015082168810
- Sales unit
- pcs
- Eaton catalogue number
- 216881
- Depth
- 70 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.034 kg
- Compliances
- CE Marked
- Certifications
- EN 60947-5; CSA Std. C22.2 No. 14-05; UL 508; CSA Std. C22.2 No. 94-91; IEC 60947-5; VDE; VDE 0660; CSA; CSA-C22.2 No. 94-91; CSA File No.: 012528; IEC/EN 60947; UL File No.: E29184; CSA Class No.: 3211-03; CSA-C22.2 No. 14-05; CE; IEC/EN 60947-5; UL; UL Category Control No.: NKCR; DNV; GL; LR
- Actuator color
- Black
- Actuator function
- Spring-return; Key withdrawable in position 0; Momentary
- Actuator type
- Key
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Key operated; Classical
- Fitted with
- Front ring
- Functions
- Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
- Indicator color
- Other
- Lens type
- Round
- Number of switch positions
- 2
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- Yes; With SWD-RMQ connections
- Accessories
- 1 key included with supplied equipment.
- Degree of protection
- NEMA 4X, 13
- Degree of protection (front side)
- IP66
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 100 Operations/h
- Operating torque
- 0.5 Nm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Size
- Front diameter: 29.7 mm
- Switching angle
- 40 °
- Type
- Key-operated button
- Hole diameter
- 22.5 mm
- Suitable for lighting
- No
- Spring-return
- Yes
- Degree of protection (IP), front side
- IP66
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Type of control element
- Key
- Colour control element
- Black
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082168810
- SAP 1000020292
- Code 8157780
Product Documentation
Document preview: KEY Switch 0-1 Impulse (M22-WS) — Specification Data Sheet (OEM)
More from Eaton
Eaton

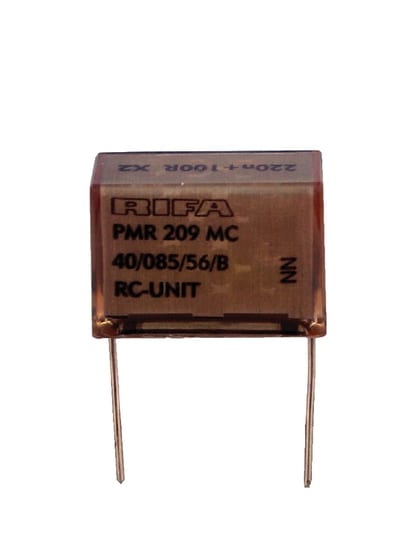

RC-Filter (CMMZ-00/07)
Eaton
Eaton xEffect FRCdM Residual Current Circuit Breaker (RCCB) — Type B, 4-Pole, 63 A, 30 mA, Short-Time Delayed
167894
Eaton

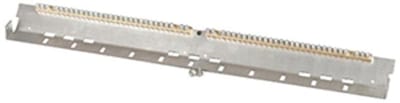

Earth Busbar 2KL29 B600 xE Basic
BPZ-TSB-600/2KL29
Eaton

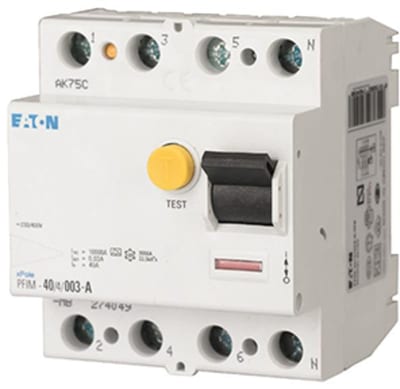

Eaton xPole PFIM Residual Current Circuit Breaker (RCCB) — Type A, 4-Pole, 63 A, 30 mA, Short-Time Delayed
PFIM-63/4/003-G/A-MW
Eaton

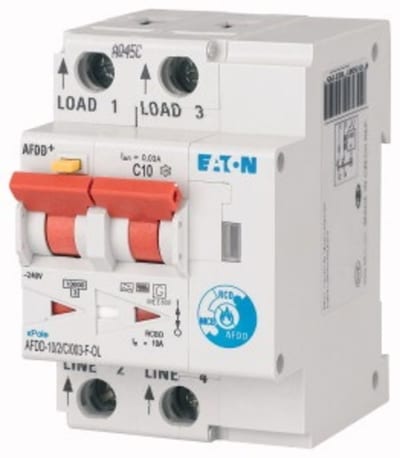

AFDD-10/2/C/003-F-OL (MB-300179)
Eaton

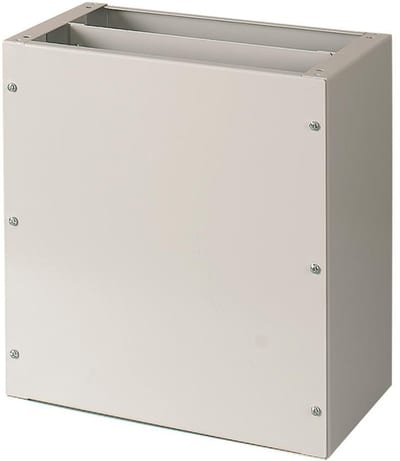

Cable Trunking TKS B400 grey
Y7-187904
Eaton

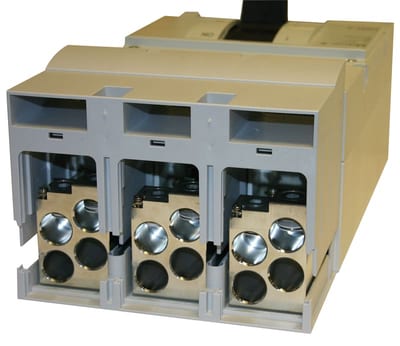

Terminal 3 PCS. AL/CU 4X50-240
NZM4-XKA
Eaton

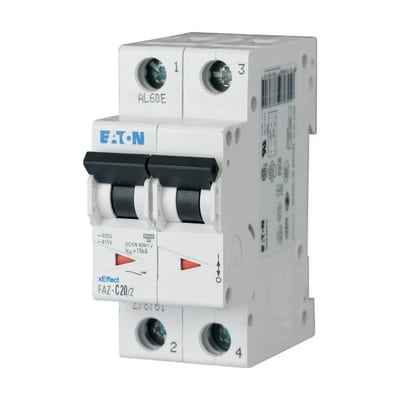

Eaton FAZ-D16/2 Miniature Circuit Breaker — 2P, Type D, 16 A, 15 kA
