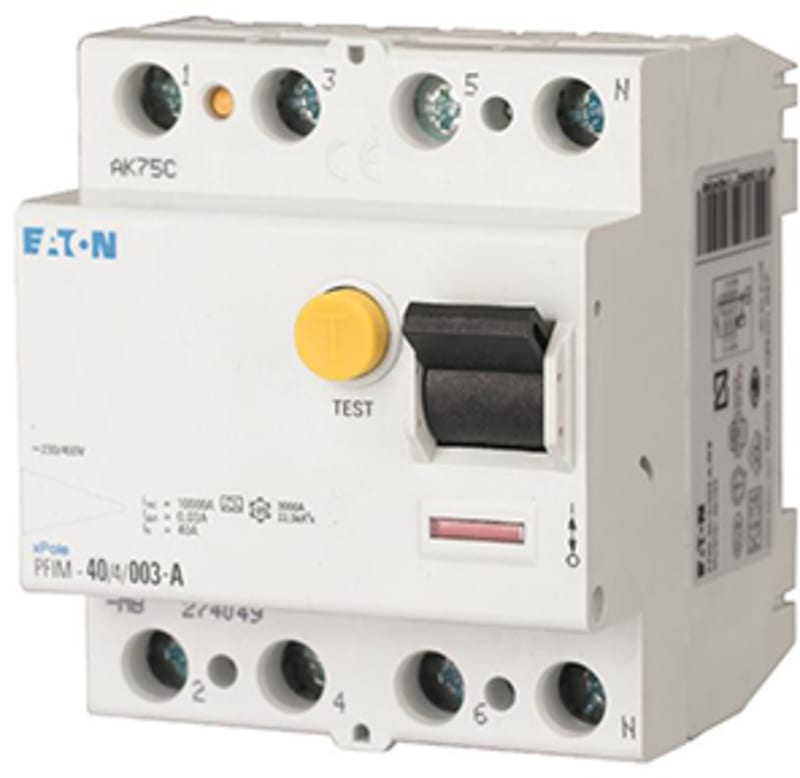

Eaton xPole PFIM Residual Current Circuit Breaker (RCCB) — Type A, 4-Pole, 63 A, 30 mA, Short-Time Delayed

The Eaton PFIM-63/4/003-G/A-MW is a residual current circuit breaker (RCCB) from the Moeller series xPole PFIM range. It disconnects the circuit when the current flowing out does not match the current returning — the signature of a fault to earth, whether through failed insulation or through a person. It provides no overcurrent protection of its own and is installed together with the circuit's MCB or fuse. This device is 4-pole, rated 63 A, with a rated residual current of 30 mA. Type A responds to sinusoidal AC residual currents and to pulsating DC residual currents. It is the general-purpose type for circuits with ordinary electronic loads. It is the G (short-time delayed) version, which rides through the brief leakage surges that switching and cable capacitance produce at energisation instead of tripping on them. At 30 mA it is rated for protection of people against electric shock. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Manufacturer part number (MPN)

PFIM-63/4/003-G/A-MW

EAN / GTIN

4015082354572

HS code

8536.90

Sales unit

pcs

Package quantity

3 pcs

Eaton catalogue number

235457

Depth

76 mm

Height

80 mm

Width

70 mm

Weight

0.384 kg

Compliances

RoHS conform

Certifications

IEC/EN 61008; ÖVE E 8601

Accessories required

Z-HK 248432

Features

Residual current circuit breaker; Additional equipment possible

Fitted with

Interlocking device

Functions

Short-time delayed tripping

Special features

Maximum operating temperature is 60 °C: Starting at 40 °C, the max. permissible continuous current decreases by 1.8% for every 1 °C Tripping signal contact for subsequent installation Z-NHK 248434

Used with

PFIM; Residual current circuit breakers; Type G/A (ÖVE E 8601); KLV-TC-4 276241 (Compact enclosure); Z-FW/LP 248296 (Remote control and automatic switching device); Z-RC/AK-4MU 101062 (sealing cover set)

Amperage Rating

63 A

Application

3-phase application without N (400V AC phase-phase) not allowed Residual current circuit breaker for residential and commercial applications xPole - Switchgear for residential and commercial applications

Fault current rating

30 mA

Impulse withstand current

Surge-proof, 3 kA

Number of poles

Four-pole

Rated short-circuit strength

10 kA

Sensitivity type

Pulse-current sensitive

Tripping time

Short time-delayed

Type

PFIM Residual current circuit breakers Type G/A (ÖVE E 8601)

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

13.4 W

Heat dissipation capacity

0 W

Heat dissipation per pole, current-dependent

0 W

Rated operational current for specified heat dissipation (In)

63 A

Static heat dissipation, non-current-dependent

0 W

Admissible back-up fuse overload - max

40 A gG/gL

Frequency rating

50 Hz

Leakage current type

A

Lifespan, electrical

4000 operations

Pollution degree

2

Rated fault current - max

0.03 A

Rated fault current - min

0.03 A

Rated impulse withstand voltage (Uimp)

4 kV

Rated insulation voltage (Ui)

440 V

Rated operational voltage (Ue) - max

400 V

Rated residual making and breaking capacity

630 A

Rated short-time withstand current (Icw)

10 kA

Short-circuit rating

63 A (max. admissible back-up fuse)

Surge current capacity

3 kA

Test circuit range

196 V AC - 264 V AC

Voltage rating

230 V AC / 400 V AC

Built-in depth

70.5 mm

Built-in width (number of units)

70 mm (4 SU)

Busbar material thickness

0.8 mm - 2 mm

Climatic proofing

25-55 °C / 90-95% relative humidity according to IEC 60068-2

Connectable conductor cross section (multi-wired) - max

16 mm²

Connectable conductor cross section (multi-wired) - min

1.5 mm²

Connectable conductor cross section (solid-core) - max

35 mm²

Connectable conductor cross section (solid-core) - min

1.5 mm²

Degree of protection

IP20, IP40 with suitable enclosure; IP20

Frame

45 mm

Lifespan, mechanical

20000 operations

Mounting Method

Quick attachment with 2 latch positions for DIN-rail IEC/EN 60715; DIN rail

Permitted storage and transport temperature - max

60 °C

Permitted storage and transport temperature - min

-35 °C

Terminal capacity (solid wire)

1.5 mm² - 35 mm²

Terminal capacity (stranded cable)

16 mm² (2x)

Terminal protection

Finger and hand touch safe, DGUV VS3, EN 50274

Terminals (top and bottom)

Open mouthed/lift terminals

Width in number of modular spacings

4

Product family

Eaton Moeller series xPole PFIM RCCB

Device type

Residual current circuit breaker (RCCB), no integral overcurrent protection

Residual current type

Type A

Rated residual current (IΔn)

30 mA

Rated current

63 A

Tripping characteristic

Short-Time Delayed (G)

Selection note

Sinusoidal AC and pulsating DC

Protection purpose

Protection of people against electric shock

HS Code

8536.90

• EAN 4015082354572
• SAP 1000053461
• Code 8878326
• MPN PFIM-63/4/003-G/A-MW
• Type A
