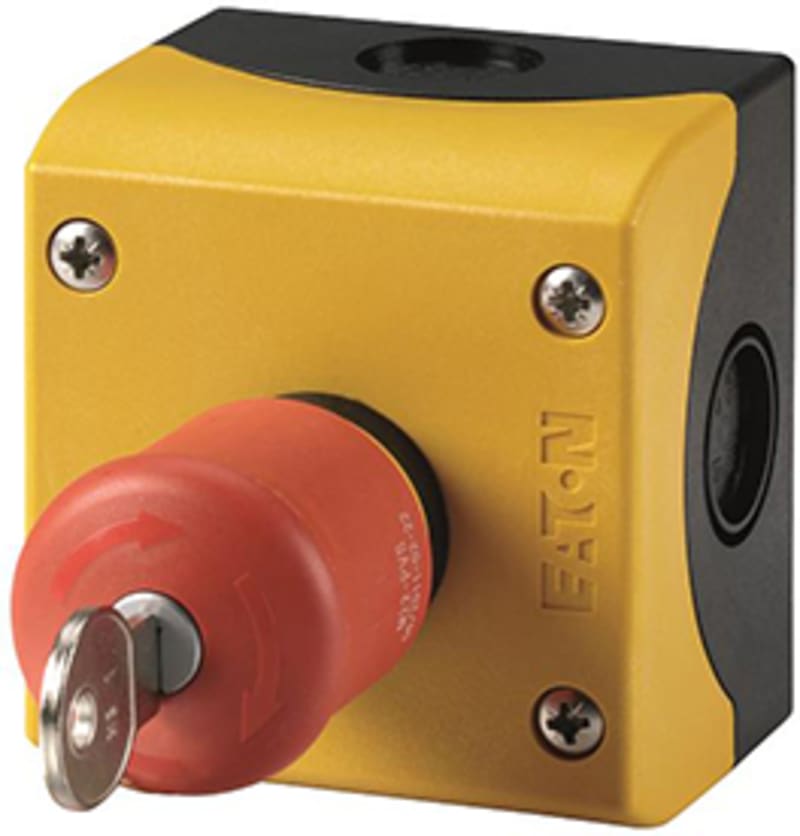

Lockable Emergency Stop, Complete in Enclosure

Eaton M22-PVS/KC11/IY key-release (lockable) emergency-stop push button, complete in yellow surface enclosure, with 1 N/O + 1 N/C contacts.

Manufacturer part number (MPN)

M22-PVS/KC11/IY

EAN / GTIN

4015082165239

Sales unit

pcs

Eaton catalogue number

216523

Depth

115 mm

Height

80 mm

Width

72 mm

Weight

0.214 kg

Certifications

CE; CSA; CSA File No.: 012528; CSA-C22.2 No. 94-91; IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; UL File No.: E29184; IEC/EN 60947; UL Category Control No.: NKCR; CSA Class No.: 3211-03; UL; VDE 0660

Actuating force

50 N

Actuator color

Red

Actuator diameter

38 mm

Actuator function

Key-release

Actuator travel and actuation force (DIN EN 60947-5-1)

4.8 mm

Design

Mushroom-shaped

Illumination

Non-illuminated

Knob travel

5.7 mm

Force for positive opening - min

20 N

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

No

Heat dissipation per pole, current-dependent Pvid

0.11 W

Rated operational current for specified heat dissipation (In)

6 A

Rated control supply voltage (Us) at AC, 50 Hz - max

500 V

Rated control supply voltage (Us) at AC, 50 Hz - min

115 V

Rated control supply voltage (Us) at AC, 60 Hz - max

500 V

Rated control supply voltage (Us) at AC, 60 Hz - min

115 V

Rated control supply voltage (Us) at DC - max

220 V

Rated control supply voltage (Us) at DC - min

24 V

Enclosure color

Yellow

Enclosure material

Plastic

Features

Positive opening

Number of locations

1

Accessories

1 key included with supplied equipment.

Degree of protection

IP67/IP69K; NEMA 4X, 13

Lifespan

100,000 mechanical Operations

Mounting position

As required

Operating frequency

600 Operations/h

Product category

RMQ-Titan

Size

Front dimensions: 35 mm

Suitable for

Emergency stop

Type

Controlled stop pushbutton/emergency-stop button Housing

Rated conditional short-circuit current (Iq)

1 kA

Housing colour

Yellow

Number of command positions

1

Colour housing cover

Yellow

Suitable for emergency stop

Yes

Housing material

Plastic

Rated control supply voltage AC 50 Hz

115–500 V

Rated control supply voltage AC 60 Hz

115–500 V

Rated control supply voltage DC

24–220 V

Explosion-tested version

No

Number of push buttons

1

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Country of origin

Germany

HS Code

8536.50

• EAN 4015082165239
• SAP 1000053257
• Code 8822257
