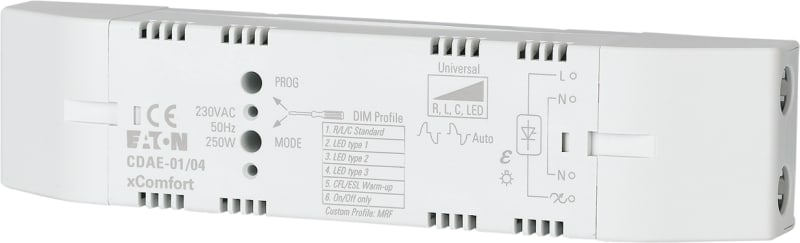

Eaton Universal Dimmer Actuator 250W Flush-Mount xComfort
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton CDAE-01/04 is a universal dimmer actuator rated 250 W for flush-mounted installation. It supports leading- and trailing-edge dimming for incandescent, halogen and retrofit LED loads, and integrates with the xComfort bidirectional radio-frequency bus for wireless control. The unit occupies three modular spacings and provides one output with LED indication.
Technical Specifications
- Manufacturer part number (MPN)
- CDAE-01/04
- EAN / GTIN
- 4015081773732
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 34 pcs
- Product segment
- Smart home
- Eaton catalogue number
- 182446
- Depth
- 149.63 mm
- Height
- 27.7 mm
- Width
- 34.06 mm
- Weight
- 0.06 kg
- Compliances
- RoHS conform
- Features
- Radio frequent bidirectional
- Bus system operating type
- Radio frequent; xComfort
- Actuation function
- Dimming
- Bus system product type
- Actuator
- Frequency rating - max
- 50 Hz
- Frequency rating - min
- 50 Hz
- Output power - max
- 250 W
- Output power - min
- 0 W
- Fitted with
- Bus connection; LED indication
- Switching power LED - max
- 100 W
- Voltage rating - max
- 230 V
- Voltage rating - min
- 230 V
- Width in number of modular spacings
- 3
- Power supply
- Mains
- Number of outputs
- 1
- Degree of protection
- IP20
- Load type
- Universal and LED retrofit
- Model
- Dimming actuator
- Mounting method
- Built-in installation; Built-in
- Suitable for
- Constant current; Constant voltage
- Number of linkable devices
- 32
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081773732
- SAP 1000734138
- Code 8369576
Product Documentation
More from Eaton
Eaton
Eaton xPole PFIM Residual Current Circuit Breaker (RCCB) — Type A, 4-Pole, 40 A, 30 mA, Short-Time Delayed
PFIM-40/4/003-G/A-MW
Eaton
Terminal 50MM2 AL/CU FOR 16MM2 C (bpz-IC/50-16/235-P-II)
BPZ-IC/50-16/235-P-II
Eaton
Micro Enclosure IP30 1-ROW 2MOD
MICRO-2
Eaton
Eaton FAZ-B20/4 Miniature Circuit Breaker — 4P, Type B, 20 A, 15 kA
Eaton
Eaton Bussmann High-Speed Microswitch 2 A with Indicator
170H0069
Eaton
SYL.SIK 22 X 58 80A GG 500VAC
1664188
Eaton
Fuse 2000A 690V 4BKN/65 AR UC
170M7082
Eaton
Komp. 1-Felts multifunction push-button
500383
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy CDAE-01/04?
- CDAE-01/04 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is CDAE-01/04.
- What is the HS code for CDAE-01/04?
- The customs tariff (HS) code for CDAE-01/04 is 8536.90.
- Who manufactures CDAE-01/04?
- CDAE-01/04 is a Eaton product in the Electrical Components range.
- Is a datasheet available for CDAE-01/04?
- Yes — the CDAE-01/04 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for CDAE-01/04?
- The minimum order quantity is 1.
- Is CDAE-01/04 available?
- Yes — CDAE-01/04 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
