Eaton
SmartWire-DT LED Element, Base Mounting, Green
Part numberM22-SWD-LEDC-GEAN / GTIN4015081157396HS code8531.80
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-SWD-LEDC-G SmartWire-DT LED element for base (rear) mounting, green.
Technical Specifications
- Manufacturer part number (MPN)
- M22-SWD-LEDC-G
- EAN / GTIN
- 4015081157396
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Eaton catalogue number
- 115999
- Depth
- 45 mm
- Height
- 42 mm
- Width
- 10 mm
- Weight
- 0.009 kg
- Certifications
- UL Category Control No.: NKCR; CSA File No.: 2324643; UL; IEC/EN 61131-2; UL File No.: E29184; CSA; CSA Class No.: 3211-07; EN 50178
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -30 °C
- Environmental conditions
- Condensation: prevent with appropriate measures
- Connection to SmartWire-DT
- Yes
- Static heat dissipation, non-current-dependent Pvs
- 0.3 W
- Rated operational voltage (Ue) at DC - max
- 30 V
- Rated operational voltage (Ue) at DC - min
- 30 V
- Fitted with
- Light source
- Functions
- For combination with RMQ-Titan operating elements M22-...
- Light color
- Green
- Degree of protection
- IP20
- Overvoltage category
- Not applicable
- Pollution degree
- 2
- Voltage type
- DC
- LED indicator
- Status indication of SmartWire-DT network: Green LED
- Connection type
- SWD: Plug, 8-pole; Base fixing
- Mounting position
- As required
- Lamp holder
- None
- Transformer integrated
- No
- With integrated voltage decreasing resistor
- No
- With integrated diode
- No
- Colour light source
- Green
- Lamp type
- LED
- Type of fastening
- Floor fastening
- With light source
- Yes
- Connection type auxiliary circuit
- Flat plug-in connection
- Rated voltage Ue at DC
- 30 V
- Voltage type for actuating
- DC
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015081157396
- SAP 1000288945
- Code 81038254
Product Documentation
Document preview: Led el.Darw Bottom mont.Green (M22-SWD-LEDC-G) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Hex socket screw M10X180 8.8 xE Main
XNNSKS-M10X180-8
Eaton
Contactor DILM185A/22(RAC500)
Eaton

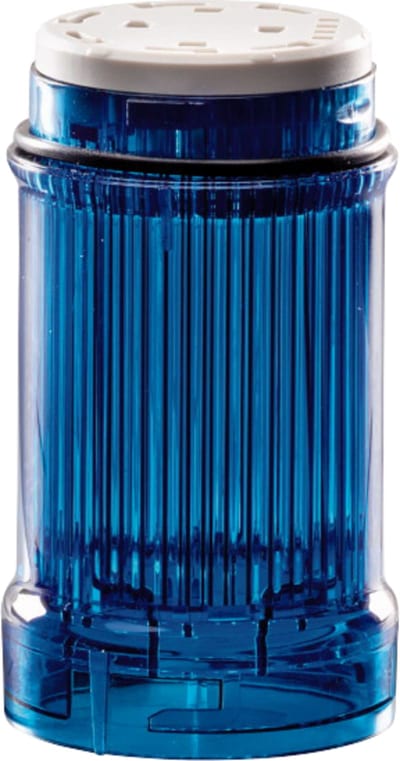

LED Strobe light, Blue, 24V (SL4-FL24-B)
Eaton
Contactor,DILH800/22(RDC48) (197910)
Eaton

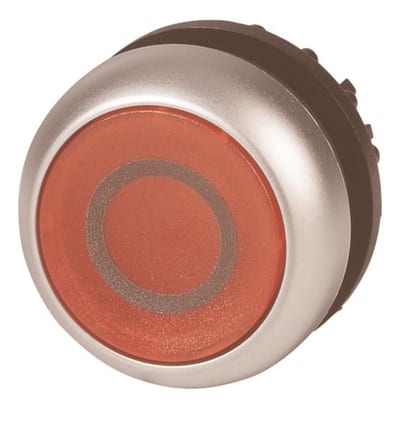

ILLUMINATED PUSH BUTTON, TR/TR, RED/Stop
M22-DRL-R-X0
Eaton
Contactor 2,2kW 24VDC (DILEM-01-G(24VDC))
Eaton

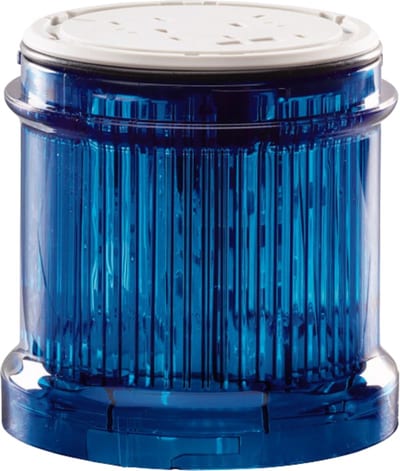

Steady light, Blue, without Lamp (SL7-L-B)
Eaton

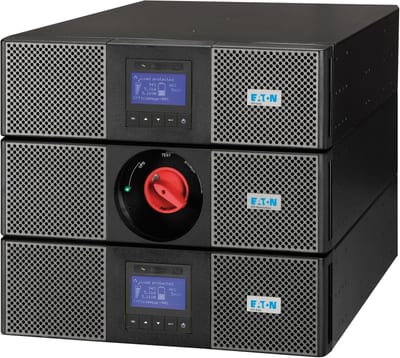

Eaton 9PX ModularEasy 6000I
