Eaton
ILLUMINATED PUSH BUTTON, TR/TR, RED/Stop
Part numberM22-DRL-R-X0EAN / GTIN4015082169572HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

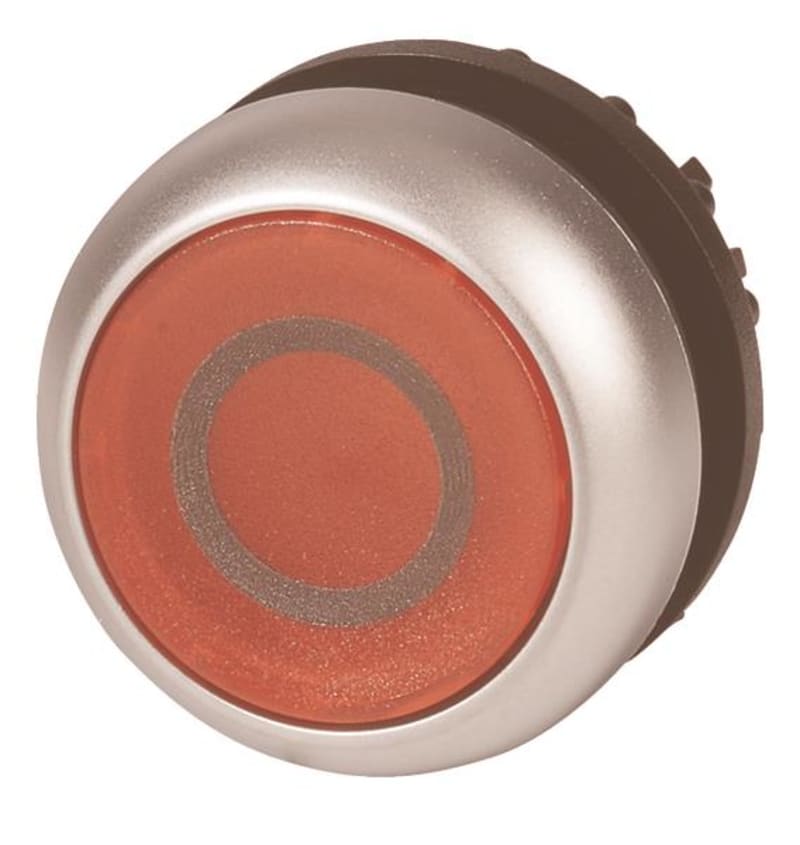

Eaton M22-DRL-R-X0 Illuminated pushbutton actuator, flush, red 0, maintained.
Technical Specifications
- Manufacturer part number (MPN)
- M22-DRL-R-X0
- EAN / GTIN
- 4015082169572
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216957
- Depth
- 30 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.012 kg
- Certifications
- CSA-C22.2 No. 14-05; CSA Class No.: 3211-03; CSA-C22.2 No. 94-91; IEC/EN 60947-5; UL 508; UL File No.: E29184; CSA File No.: 012528; UL; VDE 0660; CSA; IEC/EN 60947; CE; UL Category Control No.: NKCR; DNV; GL; LR
- Actuating force
- 5 N
- Actuator color
- Red
- Actuator function
- Maintained; Switching function latching
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Flush; Classical
- Features
- Labelled
- Fitted with
- Front ring
- Functions
- Stay-put/spring-return function can be changed on device
- Inscription
- Inscribed
- Lens type
- Round
- Number of command positions
- 1
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Degree of protection
- NEMA 12; IP67; NEMA 3R; NEMA 4X; IP66; NEMA 13; IP69K
- Degree of protection (front side)
- NEMA 4X; IP67/IP69K
- Lifespan, mechanical
- 1,000,000 Operations (AC operated)
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 1800 Operations/h
- Product category
- RMQ-Titan
- Size
- Front diameter: 29.7 mm
- Suitable for
- Illumination
- Type
- Illuminated pushbutton actuator
- Hole diameter
- 22 mm
- Colour button
- Red
- Suitable for lighting
- Yes
- Spring-return
- Yes
- Labelled
- Yes
- Type of button
- Flat
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP67/IP69K
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082169572
- SAP 1000086052
- Code 8879868
Product Documentation
Document preview: ILLUMINATED PUSH BUTTON, TR/TR, RED/STOPP (M22-DRL-R-X0) — Specification Data Sheet (OEM)
