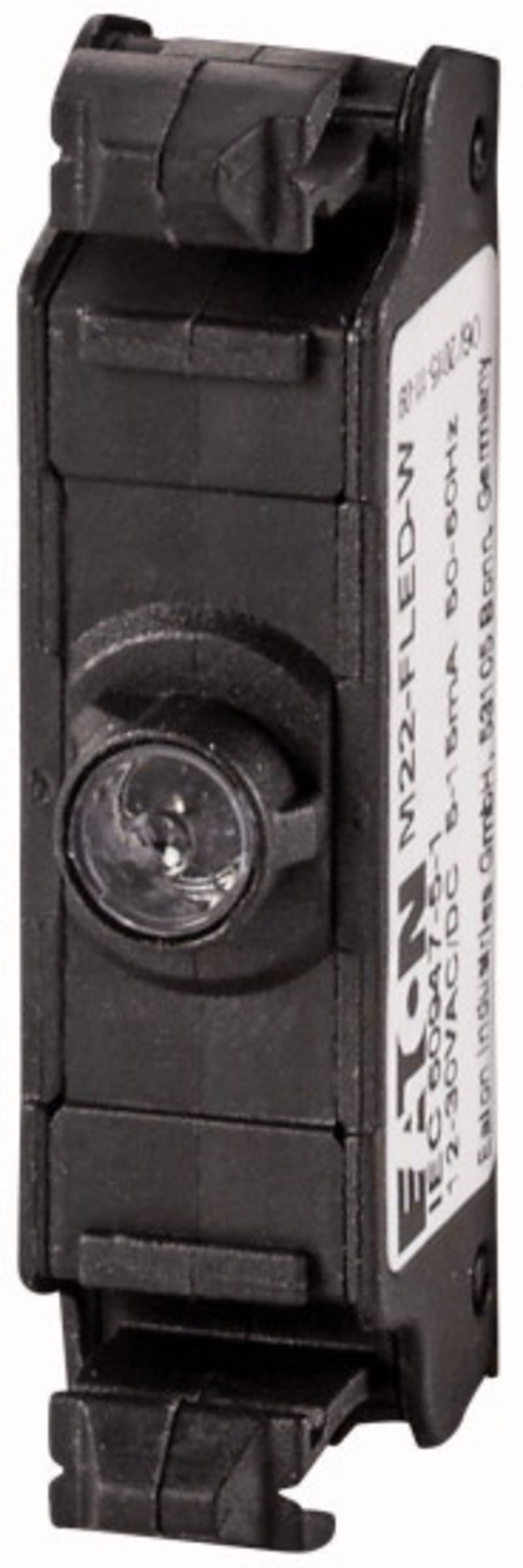

LED element, flat rear (M22-FLED-W)

Eaton LED element, flat rear (M22-FLED-W) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 20 pcs; Eaton catalogue number: 180795; Depth: 38 mm; Height: 10 mm; Width: 14 mm.

Manufacturer part number (MPN)

M22-FLED-W

EAN / GTIN

4015081759644

Sales unit

pcs

Package quantity

20 pcs

Eaton catalogue number

180795

Depth

38 mm

Height

10 mm

Width

14 mm

Weight

0.004 kg

Certifications

CSA File No.: 012528; CSA-C22.2 No. 14-05; CSA Class No.: 3211-03; CSA-C22.2 No. 94-91; UL; UL 508; UL Category Control No.: NKCR; IEC/EN 60947-5; UL File No.: E29184; CSA; CE; IEC 60947-5-1

Catalog Notes

Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Dry heat to IEC 60068-2-2; Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

No

Power consumption

Max. 0.26 W

Rated insulation voltage (Ui)

250 V

Rated operational current (Ie) - max

15 mA

Rated operational current (Ie) - min

5 mA

Rated operational voltage (Ue) at AC - max

30 V

Rated operational voltage (Ue) at AC - min

12 V

Rated operational voltage (Ue) at DC - max

30 V

Rated operational voltage (Ue) at DC - min

12 V

Color

White

Fitted with

Diode; Light source

Light color

White

Degree of protection

IP20

Lifespan, electrical

100,000 h (at 25°C, according to EN60064)

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp)

4000 V AC

Voltage type

AC/DC

Connection type

Front fixing

Mounting position

As required

Terminal capacity (flexible with ferrule)

Use WAGO Variocrimp 4 crimping tool; please enquire for others; 1 x (0.25 - 1) mm²

Terminal capacity (solid)

1 x (075 - 1.5) mm² Can be plugged without tools; 1 x (0.2 - 1.5) mm²

Terminal capacity (solid/stranded AWG)

20

Terminal capacity (stranded)

1 x (0.2 - 1.5) mm²

Lamp holder

None

Transformer integrated

No

With integrated voltage decreasing resistor

No

With integrated diode

Yes

Colour light source

White

Lamp type

LED

Type of fastening

Front fastening

With light source

Yes

Connection type auxiliary circuit

Spring clamp connection

Rated voltage Ue at AC 50 Hz

12–30 V

Rated voltage Ue at AC 60 Hz

12–30 V

Rated voltage Ue at DC

12–30 V

Voltage type for actuating

AC/DC

Country of origin

Germany

HS Code

8541.41
