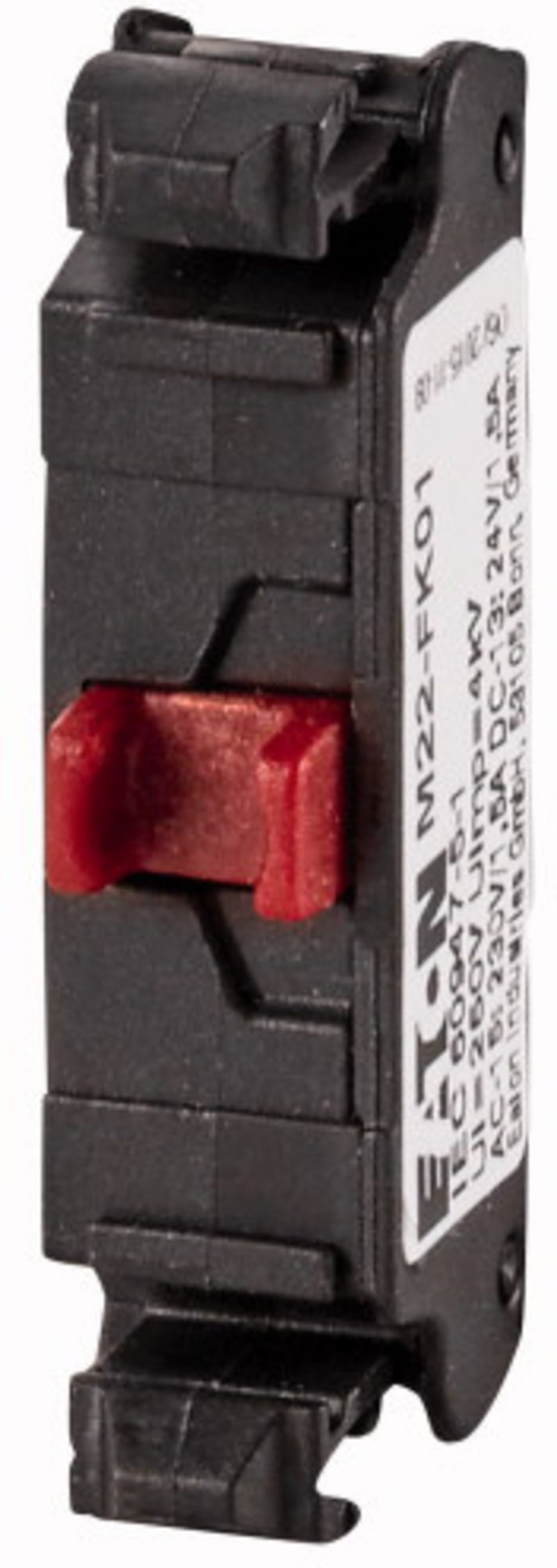

Connector element, flat rear (M22-FK01)

Eaton Connector element, flat rear (M22-FK01) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 20 pcs; Eaton catalogue number: 180791; Depth: 40.2 mm; Height: 10 mm; Width: 14 mm.

Manufacturer part number (MPN)

M22-FK01

EAN / GTIN

4015081759606

Sales unit

pcs

Package quantity

20 pcs

Eaton catalogue number

180791

Depth

40.2 mm

Height

10 mm

Width

14 mm

Weight

0.004 kg

Certifications

UL 508; CSA File No.: 012528; UL File No.: E29184; CSA; IEC/EN 60947-5; UL; CSA Class No.: 3211-03; CSA-C22.2 No. 94-91; UL Category Control No.: NKCR; CE; IEC 60947-5-1; CSA-C22.2 No. 14-05

Catalog Notes

Contacts with safety function, by positive opening to IEC/EN 60947-5-1

Actuating force - max

4.5 N

Knob travel

5.8 mm

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78; Dry heat to IEC 60068-2-2

Connection to SmartWire-DT

No

Force for positive opening - min

20 N

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

0

Rated insulation voltage (Ui)

250 V

Rated operational current (Ie)

4 A at AC-15, 60 V; 2 A at AC-15, 110 V

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

1.5 A

Rated operational current (Ie) at AC-15, 24 V

4 A

Rated operational current (Ie) at DC-13, 110 V

0.4 A

Rated operational current (Ie) at DC-13, 220 V, 230 V

0.2 A

Rated operational current (Ie) at DC-13, 24 V

1.5 A

Rated operational current (Ie) at DC-13, 60 V

0.8 A

Electric connection type

Spring clamp connection

Degree of protection

IP20

Lifespan, mechanical

1,000,000 Operations (AC operated)

Model

Top mounting

Operating frequency

3600 Operations/h

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp)

4000 V AC

Connection type

Front fixing; Cage Clamp; Push-in clamp

Mounting method

Front fastening

Rated conditional short-circuit current (Iq)

1 kA

Short-circuit protection

FAZ-B4, Contacts, Max. short-circuit protective device, Fuseless

Short-circuit protection rating

Max. 4 A gG/gL, Fuse, Contacts

Terminal capacity (flexible with ferrule)

2 x (0.25 - 1) mm²; Use WAGO Variocrimp 4 crimping tool; please enquire for others

Terminal capacity (flexible)

2 x (0.25 - 1) mm², without ferrule; Insert with tool

Terminal capacity (solid)

2 x (0.2 - 1.5) mm²; 2 x 1 (075 - 1.5) mm², Can be plugged without tools

Terminal capacity (solid/stranded AWG)

2 x (24 - 16)

Country of origin

Germany

HS Code

8538.90
