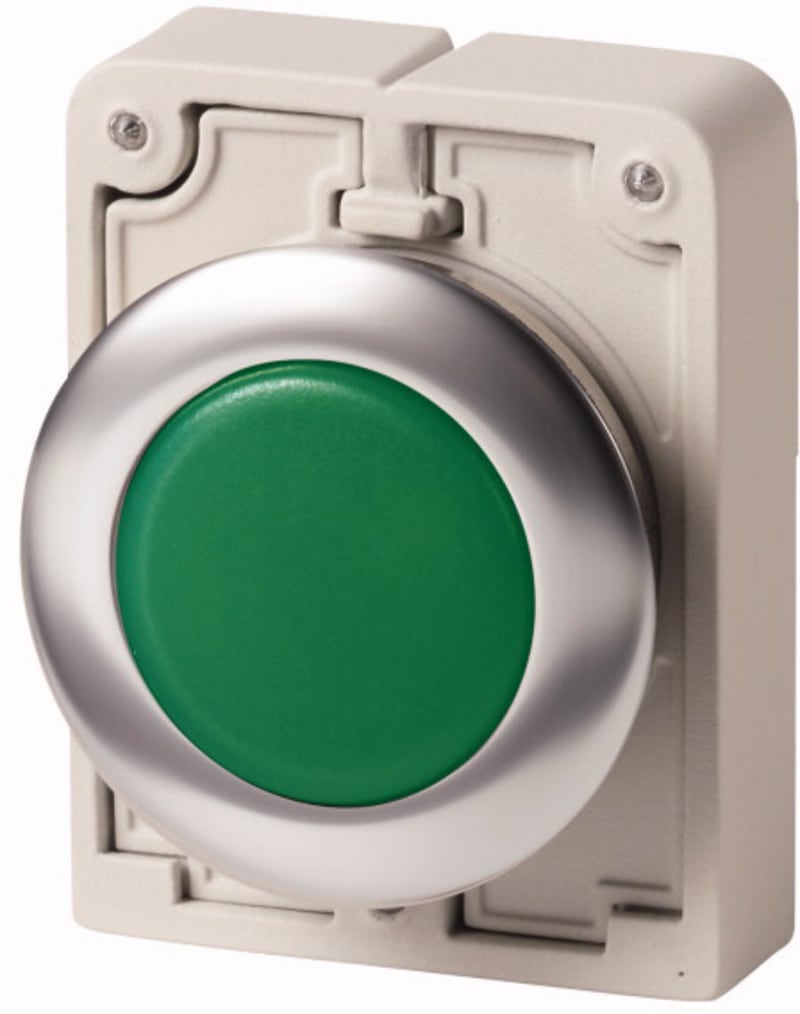

Indikator light, Flat Front (M30C-FL-G)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Indikator light, Flat Front (M30C-FL-G) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 183283; Depth: 36 mm; Height: 32 mm; Width: 46 mm; Weight: 0.035 kg.
Technical Specifications
- Manufacturer part number (MPN)
- M30C-FL-G
- EAN / GTIN
- 4015081782246
- Sales unit
- pcs
- Eaton catalogue number
- 183283
- Depth
- 36 mm
- Height
- 32 mm
- Width
- 46 mm
- Weight
- 0.035 kg
- Certifications
- IEC/EN 60947; VDE 0660
- Bezel color
- Chrome
- Bezel material
- Metal
- Design
- Flat
- Fitted with
- Front ring
- Lens color
- Green
- Lens type
- Flat; Round
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- Yes; With SWD-RMQ connections
- Rated insulation voltage (Ui)
- 250 V
- Degree of protection
- NEMA 4X, 13
- Degree of protection (front side)
- IP67/IP69K
- Mounting position
- As required
- Opening diameter
- 30 mm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Size
- Front dimensions: Ø 36 mm
- Type
- Indicator lights
- Terminal capacity
- 0.5 - 1.5 mm², stranded; 0.5 - 1.5 mm², solid
- Hole diameter
- 30 mm
- Colour lens
- Green
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP67
- Material front ring
- Metal
- With front ring
- Yes
- Construction type lens
- Round
- Suitable for number of built-in signal lights
- 1
- Type of lens
- Flat
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081782246
- SAP 1200037076
- Code 81866673
Product Documentation
