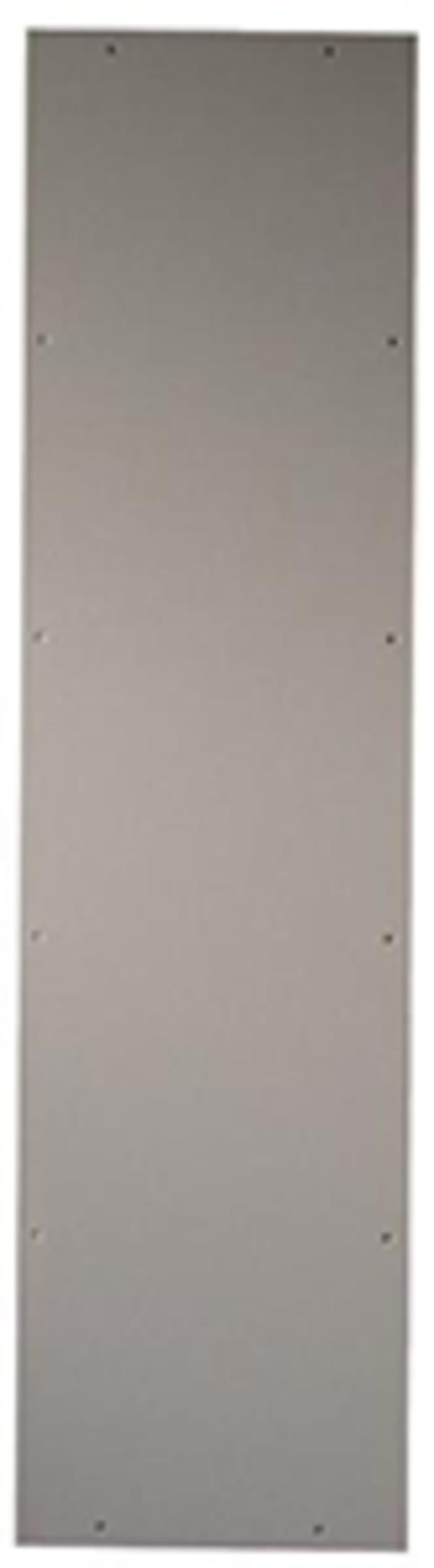

Sidewaller(pair) xE Light (XLSS166)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Sidewaller(pair) xE Light (XLSS166) is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Eaton catalogue number: 114729; Depth: 1600 mm; Height: 50 mm; Width: 490 mm; Weight: 20 kg.
Technical Specifications
- Manufacturer part number (MPN)
- XLSS166
- EAN / GTIN
- 4015081141296
- Sales unit
- pcs
- Eaton catalogue number
- 114729
- Depth
- 1600 mm
- Height
- 50 mm
- Width
- 490 mm
- Weight
- 20 kg
- Compliances
- RoHS conform
- Used with
- Control centres XVTL; Combination enclosure; Accessory
- Special features
- Enclosure side plates, in pairs\nCountersunk screws included as standard\nExternal fixing with self-threading, self-grounding countersunk screws
- Type
- Accessory\nCombination enclosure\nControl centres XVTL
- Accessory/spare part type
- Enclosure side plates
- Surface finishing
- RAL 7035, light gray; Polyester powder coating; Powder coating
- Color
- Gray
- Degree of protection
- IP55
- Unit type
- Modular system
- Modular spacing
- 25 mm
- Number of height units
- 0
- RAL-number
- 7035
- Suitable for enclosure building length/depth
- 600 mm
- Suitable for height
- 1600 mm
- Suitable for length/depth
- 600 mm
- Material
- Steel; Sheet steel 1.25 mm
- Housing material
- Sheet steel 1.25 mm
- Suitable for
- Side panel use
- Functions
- Enclosure side plates for protection type IP55 to IEC/EN 60529 and IEC/EN 529; Combination enclosure; For terminating a panel row
- Suitable as side panel
- Yes
- Suitable as rear panel
- No
- Suitable for enclosure building depth
- 600 mm
- Colour
- Grey
- With cable entry
- No
- With lock
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081141296
- SAP 1200604495
- Code 82992276
Product Documentation
