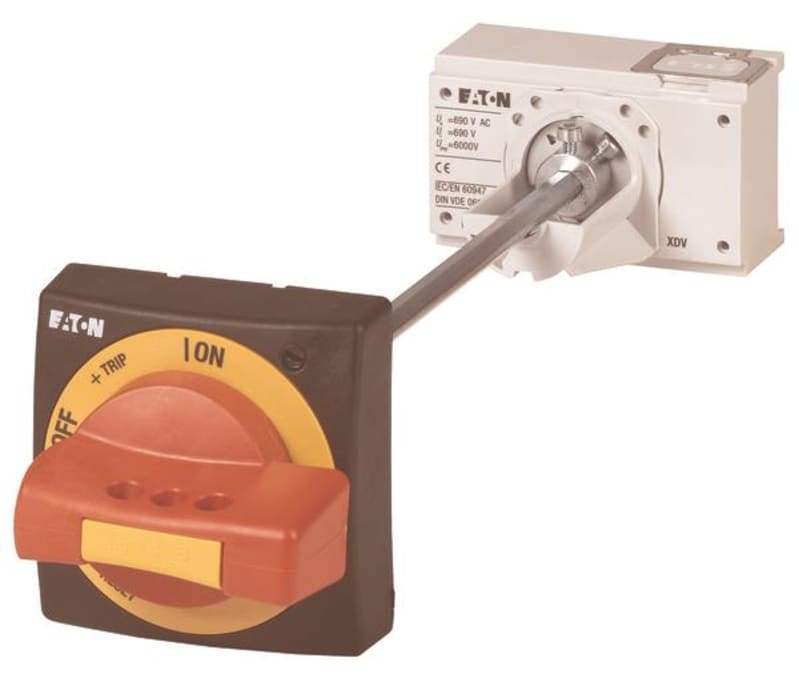

Eaton NZM2-XTVDVR-NA
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton NZM2-XTVDVR-NA is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 271450; Depth: 100 mm; Height: 190 mm; Width: 110 mm; Weight: 0.785 kg.
Technical Specifications
- Manufacturer part number (MPN)
- NZM2-XTVDVR-NA
- EAN / GTIN
- 4015082714505
- Sales unit
- pcs
- Eaton catalogue number
- 271450
- Depth
- 100 mm
- Height
- 190 mm
- Width
- 110 mm
- Weight
- 0.785 kg
- Compliances
- IEC; UL/CSA; RoHS conform
- Certifications
- CE marking; UL489; CSA (Class No. 1437-01); CSA certified; UL (File No. E140305); IEC60947; UL listed; CSA (File No. 22086); UL (Category Control Number DIHS); CSA-C22.2 No. 5-09
- Features
- Lockable; Red-yellow for emergency switching off
- Fitted with
- Padlock
- Frame
- NZM2
- Special features
- Complete including rotary drive and coupling parts Extension shaft additionally required. Cannot be combined with mechanical interlock External warning plate/designation label can be clipped on. Door coupling rotary handle for operating the switch through a closed control panel door
- Suitable for
- Power circuit breaker; Switch disconnector; Emergency stop
- Type
- Accessory Door coupling rotary handle
- Used with
- NZM2, N(S)2
- Color
- Red
- Cover/door type
- Door interlock not defeated in the locked OFF position.; Door opens only with active rotation beyond the 0 position
- Degree of protection / NEMA enclosure type
- IP66; 4X. 12
- Lock number
- Double lockable
- Locking facility
- With door interlock; Lockable on the handle on the switch using up to 3 padlocks
- Colour
- Black
- Lockable
- Yes
- Padlock locking
- Yes
- Suitable for emergency stop
- Yes
- With extension shaft
- No
- With restart blockage
- No
- Suitable for power circuit breaker
- Yes
- Suitable for switch disconnector
- Yes
- Degree of protection (NEMA)
- 4X, 12
- With key lock
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082714505
- SAP 1000289311
- Code 896617
Product Documentation
More from Eaton
Eaton
Eaton IZMX-CAS404-3200-1
Eaton
Eaton FAZ-C10/3N Miniature Circuit Breaker — 3P+N, Type C, 10 A, 15 kA
Eaton
SideBySide front with door 4-ROW
y7-193274
Eaton
Eaton FAZT-D16/2 Miniature Circuit Breaker — 2P, Type D, 16 A, 25 kA
Eaton
Terminal block 1X240 mm² yellow/green
BPZ-KC-1/240PE-ALU
Eaton
Optical sensor E58-30DPS280-HDP
Eaton
Selector switch 1-2 2P
T0-2-8221/E
Eaton
Eaton NMRBM-10/3/B/003-A RCBO 10 A 30 mA, Curve B, 3-Pole, Type A
NmRBM-10/3/B/003-A
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NZM2-XTVDVR-NA?
- NZM2-XTVDVR-NA can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is NZM2-XTVDVR-NA.
- What is the HS code for NZM2-XTVDVR-NA?
- The customs tariff (HS) code for NZM2-XTVDVR-NA is 8538.90.
- Who manufactures NZM2-XTVDVR-NA?
- NZM2-XTVDVR-NA is a Eaton product in the Electrical Components range.
- Is a datasheet available for NZM2-XTVDVR-NA?
- Yes — the NZM2-XTVDVR-NA datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NZM2-XTVDVR-NA?
- The minimum order quantity is 1.
- Is NZM2-XTVDVR-NA available?
- Yes — NZM2-XTVDVR-NA is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
