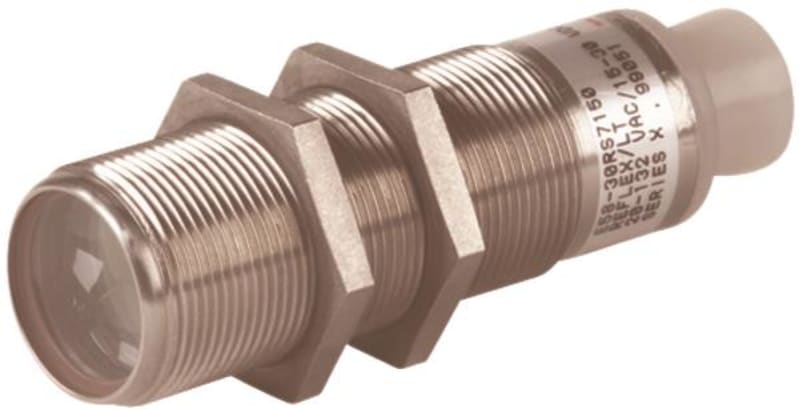

Optical sensor E58-30DPS280-HDP

Eaton E58-30DPS280-HDP Optical sensor, Sn=280mm, 4L, 10-30VDC, dark, NPN, PNP, M30, metal, M12.

Manufacturer part number (MPN)

E58-30DPS280-HDP

EAN / GTIN

4015081324743

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

135681

Depth

38.1 mm

Height

38.1 mm

Width

38.1 mm

Weight

0.23 kg

Certifications

CSA File No.: UL report applies to both US and Canada; UL Category Control No.: NRKH, NRKH7; Certified by UL for use in Canada; IEC/EN 60947-5-2; UL File No.: E166051; UL 508; CE; CSA-C22.2 No. 14; UL

Type

Optical sensors

Electric connection type

Plug-in connection

Fitted with

Background suppression (Perfect Prox)

Enclosure material

Metal

Enclosure type

Cylinder, screw-thread

Operating mode

Switching principle: Dark switching

Explosion safety category for dust

None

Explosion safety category for gas

None

Functions

Short-circuit protection; Protection against wire breakage; Reflected-light beam; Protection against polarity reversal

Voltage type

DC

Wire size

0

Connection type

4-wire; Plug-in connection M12 x 1

Cable sheath material

Other

Light type

Other

Degree of protection

NEMA 6; IP68

Interface type

Other

LED indicator

Status indication of Switching state: Red LED

Switch function type

Other

Load current

Max. 100 mA (Ie)

Laser protection class

None

Operation agent-safety class

Safety class 2

Shock resistance

100 g, Mechanical, Shock duration 3 ms

Optical surface material

Glass

Output current (mA) - max

100 mA

Rated control supply voltage (Us) at DC - max

30 V

Rated control supply voltage (Us) at DC - min

10 V

Rated switching distance (Sn)

280 mm

Sensor length

111 mm

Switching distance - max

318 mm

Switching voltage of OSSD at state high

30 V

Voltage rating - max

30 V

Safety type (IEC 61496-1)

1

Switching frequency

312 Hz

Sensing mode

Dark switching

Switching output type

PNP

Sensor material

Stainless steel

Triangulation

Background fade-out

Wavelength of the sensor

660 nm

Product category

E58 Harsh Duty Series

Response time

1.6 ms

Adjustment range - max

280 mm

Adjustment range - min

0 mm

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-40 °C

Diameter sensor

30 mm

Number of contact energized outputs with signalling function

0

Number of outputs (protected contact energized)

0

Number of outputs (protected semiconductor)

0

Number of outputs (semiconductor with signaling function)

2

Adjustment type

Other

HS Code

8536.90
